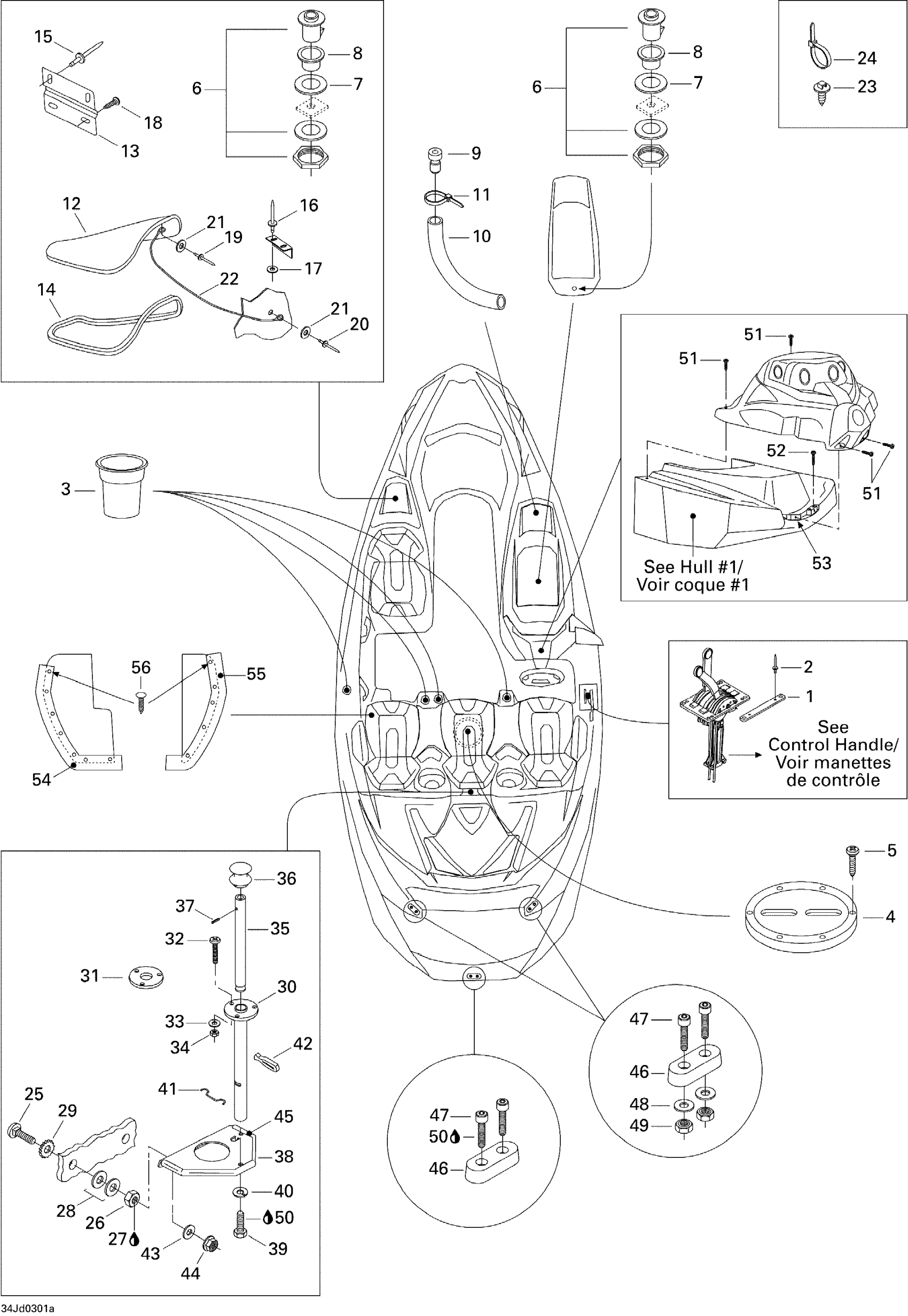

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Body and accessories Diagram

#

Description
Price

1

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

2

Pop Rivet 3/16"

293150013

$1.37

3

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

4

Deck Plate 8”

202000044

Unavailable

5

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

6

LATCHES KIT, 2 SUB-ASSEMBLIES - Call your local BRP dealership

204071753

Unavailable

7

COMPENSATION GASKET - Call your local BRP dealership

204620045

Unavailable

8

LATCH INSERT - Call your local BRP dealership

204620007

Unavailable

9

DRAIN FITTING - Call your local BRP dealership

204071783

Unavailable

10

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

11

Tie Wrap 94 mm | 4X4

293750001

$1.03

12

STORAGE DOOR, PORT SIDE, YELLOW - Call your local BRP dealership | Yellow Model

204073023

Unavailable

13

Hinge

269700031

$9.99

14

Seal Tray 1000Mm Long

219704368

$13.99

15

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

16

Pop Rivet 3/16"

293150039

$1.49

16

RIVET_POP 1/8 - Call your local BRP dealership

293150026

Unavailable

17

Flat Washer M5, Stainless

234051600

$0.77

18

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

19

Pop Rivet 3/16"

293150008

$0.50

20

Pop Rivet 3/16"

293150039

$1.49

21

Flat Washer 5 mm, Stainless

234052600

$0.77

22

RETAINER CABLE - Call your local BRP dealership

204000117

Unavailable

23

Mount Dart

293730040

$1.04

24

Tie-Rap 180 mm

414115200

$0.11

25

Elevator Bolt

204000130

Unavailable

26

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

27

Loctite 271, 10 ml

293800005

$26.99

28

Stainless, Flat Washer 8 mm

234081600

$0.55

29

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

32

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

33

Stainless Flat Washer M6

234061600

$0.33

34

Hex. Elastic Stop Nut M6

232561600

$1.15

35

SKI SHAFT - Call your local BRP dealership

204071624

Unavailable

36

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

37

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

38

FIXATION PLATE - Call your local BRP dealership

204071140

Unavailable

39

Hex. Screw M8 X 18

207181860

$1.48

40

Lock Washer 8 mm, Stainless

234181601

$0.55

41

Spring

291000205

Unavailable

42

Windshield Latch

570023800

$4.49

43

Flat Washer M6, Stainless

234062600

$0.77

44

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

45

Was 271000110 Protection Trim

219704353

$15.99

46

Rubber Bumper

204071739

Unavailable

47

Socket Head Screw M6 X 30

205063060

$2.75

48

Flat Washer M6, Stainless

234062600

$0.77

49

Hex. Elastic Stop Nut M6

232561600

$1.15

50

Loctite 243, 10 ml

293800060

$21.49

51

SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership

202000203

Unavailable

52

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

53

Attachment Block

204071786

Unavailable

54

Neoprene Seal LH, Port Side

204130043

Unavailable

55

Neoprene Seal RH, Starboard

204130044

Unavailable

56

Black, Dart

293730006

$0.99
