Partiron

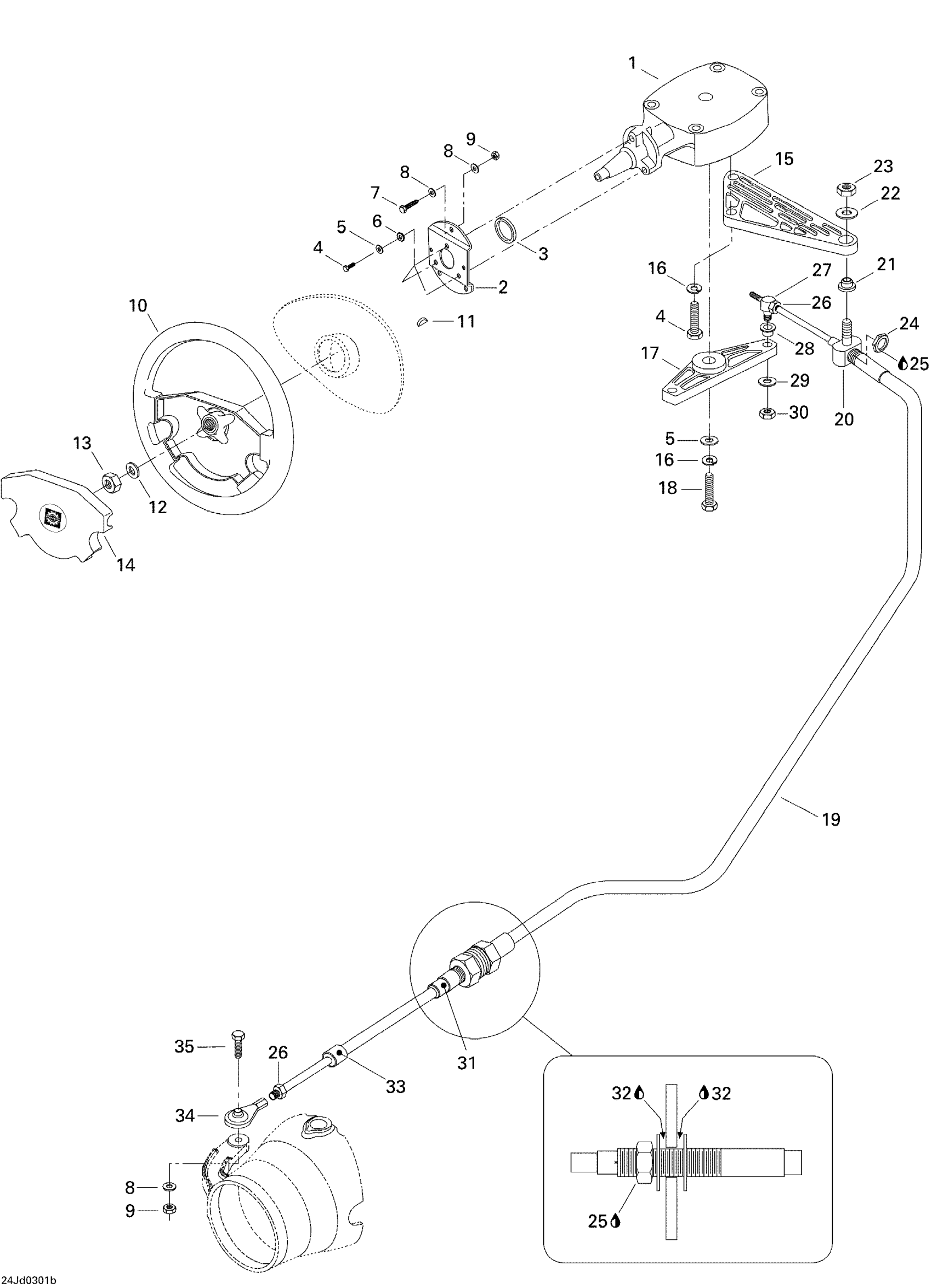

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Steering System Diagram

#

Description
Price

1

HELM ASS'Y - Call your local BRP dealership | Single HO Engine Models

204390361

Unavailable

2

Support

277000383

Unavailable

3

SPACER - Call your local BRP dealership

277000593

Unavailable

4

HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership

211000050

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.64

6

Serrated Lock Washer 8 mm

234481608

$1.06

7

Hex. Screw M6 X 40

207164060

$2.74

8

Stainless Flat Washer M6

234061600

$0.25

9

Hex. Elastic Stop Nut M6

232561600

$0.92

10

STEERING, BLACK - Call your local BRP dealership

204390440

Unavailable

11

WOODRUFF KEY - Call your local BRP dealership

277000384

Unavailable

12

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

13

LOCK NUT 1/2-20 - Call your local BRP dealership

211100021

Unavailable

14

Steering Cover

204390149

Unavailable

15

CABLE SUPPORT - Call your local BRP dealership

277000458

Unavailable

16

Lock Washer 1/4”

211200025

$1.04

17

ARM - Call your local BRP dealership

204390040

Unavailable

18

HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership

211000054

Unavailable

19

Steering Cable

277001765

$228.33

20

PIVOT 3/8? - Call your local BRP dealership

277000461

Unavailable

21

Flanged Bushing

293350014

$11.72

22

Flat Washer 10 mm, Stainless

234001600

$0.91

23

LOCK NUT - Call your local BRP dealership

211100024

Unavailable

24

HEX. JAM NUT 5/8-18 - Call your local BRP dealership

204390053

Unavailable

25

Loctite 243, 10 ml

293800060

$20.77

26

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

27

PIVOT - Call your local BRP dealership

277000456

Unavailable

28

BUSHING - Call your local BRP dealership

293350012

Unavailable

29

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

30

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

31

SEAL SWIVEL - Call your local BRP dealership

277000440

Unavailable

32

Silicone Sealant 51388, 300 ml

296000309

$35.72

33

Terminal Wiper

277000441

Unavailable

34

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

35

Hex. Screw M6 X 35

207063560

$1.85
