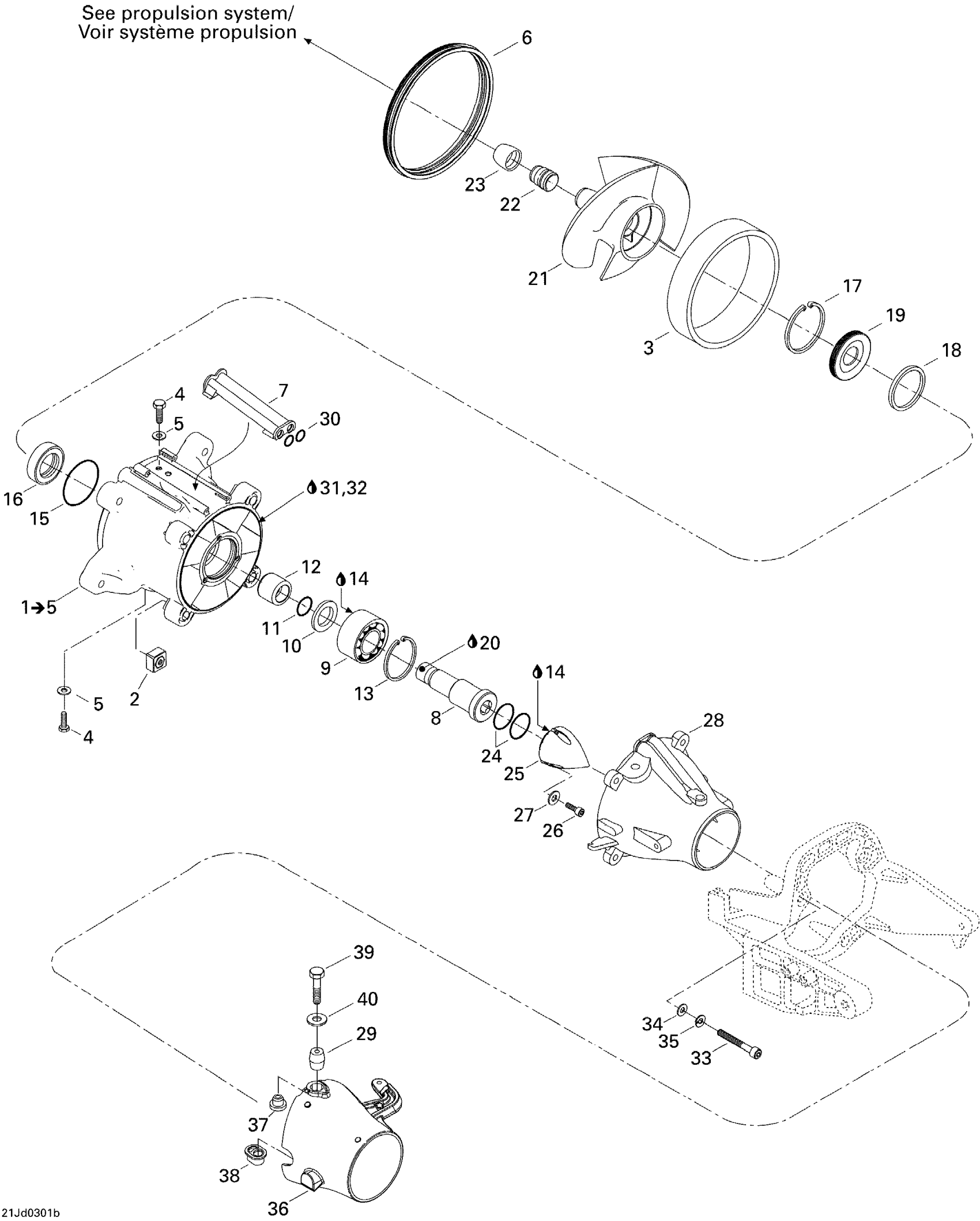

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Pump Diagram

#

Description
Price

1

IMPELER HOUSING ASSY - Call your local BRP dealership | INCLUDES 1 TO 5

271001382

Unavailable

2

Square Nut M8

211100033

$17.99

3

Wear Ring

271000653

$58.49

4

Hex. Plastite Screw #10 X 3/8"

250000040

$1.05

5

Flat Washer M5, Stainless

234051600

$0.77

6

Neoprene Seal

293200087

$12.63

7

Water Outlet

271000785

$3.80

8

Impeller Shaft

271001263

$116.49

9

Angle Bearing

293350042

$91.99

10

SPACER - Call your local BRP dealership

271001264

Unavailable

11

O-Ring

293300079

$6.66

12

SHAFT SLEEVE - Call your local BRP dealership

271001406

Unavailable

13

CIRCLIP - Call your local BRP dealership

293370024

Unavailable

14

Jet Pump Bearing Grease, 110 G

293550032

Unavailable

15

O-Ring

293300090

$7.20

16

Seal

271002071

$33.99

17

Circlip

293370038

$8.79

18

Spacer

271001393

$8.59

19

Oil Seal

293200089

$19.99

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

Impeller Assy This part replaces 267000115.

267000673

$391.99

22

IMPELLER BOOT - Call your local BRP dealership

271001152

Unavailable

23

IMPELLER RING - Call your local BRP dealership

271001153

Unavailable

24

O-Ring

293300086

$3.59

25

Impeller Cover

267000262

$21.99

26

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

27

Stainless Flat Washer M6

234061600

$0.33

28

VENTURI - Call your local BRP dealership

204160208

Unavailable

29

Sleeve

271001816

$14.99

30

O-Ring

293300013

$8.18

31

Was 293800041 Loctite Primer 7649

219704458

$39.99

32

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

33

SOCKET HEAD SCREW M8 X 120, SCOTCHGRIP - Call your local BRP dealership

231182060

Unavailable

34

Stainless, Flat Washer 8 mm

234081600

$0.55

35

Lock Washer 8 mm, Stainless

234181601

$0.55

36

Steering Nozzle

204160210

Unavailable

37

Venturi Bushing

293900001

$7.62

38

Plastic Bushing

293900010

$9.59

39

Hex. Screw M8 X 30, Scotch Grip

207383060

$1.90

40

Flat Washer M8.5 x 18

293050001

$3.07
