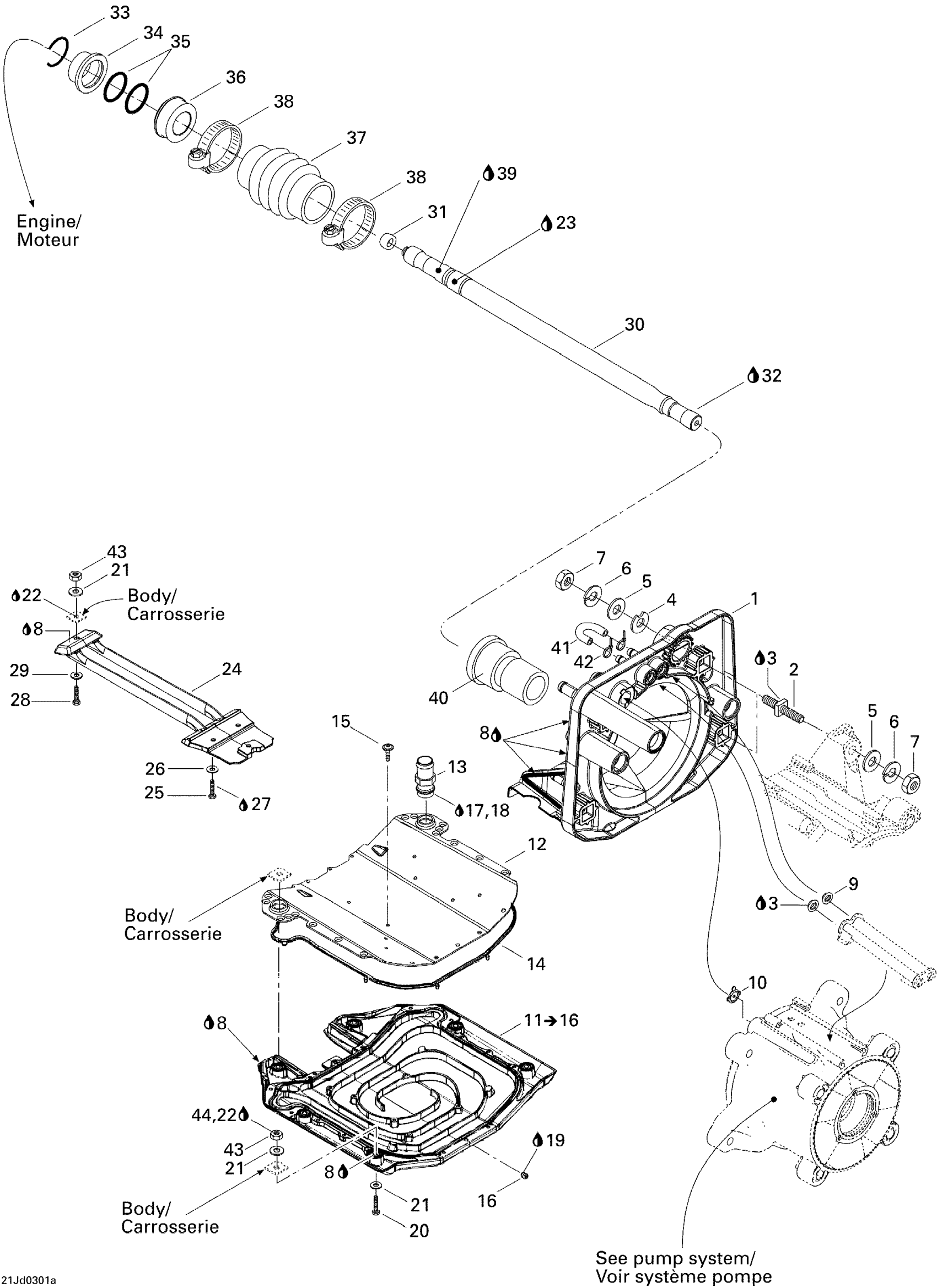

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120247

Unavailable

2

Square Stud

250300022

$20.99

3

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

4

Shim 0.3 mm

272000053

$11.49

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

7

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

8

Instant Gasket

219701421

$51.99

9

Watertight Seal

293250084

$7.49

10

Reducer This part replaces 291001887.

291004649

$17.49

11

Riding Plate Ass’Y | Includes Items 4 to 9

271001187

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

STRAIGHT PLASTIC FITTING - Call your local BRP dealership

293710087

Unavailable

14

SEAL - Call your local BRP dealership This part replaces 293250141.

293250206

Unavailable

15

Torx Button Head Screw M6 X 14

250000064

$6.66

16

Socket Drain Plug M6 X 12

250500005

$16.49

17

Was 293800041 Loctite Primer 7649

219704458

$39.99

18

Était Was 293800050 Loctite 577, 250 ml

219704459

$104.99

19

Was 293800013 Loctite 56765

219704454

$65.99

20

Hex. Screw M8 X 40

207084060

$2.22

21

Stainless, Flat Washer 8 mm

234081600

$0.55

22

Silicone Sealant 51388, 300 ml

296000309

$36.99

23

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

24

PUMP GRATE - Call your local BRP dealership

271001169

Unavailable

25

Hex. Screw M6 X 16

207161660

$1.59

26

Stainless Flat Washer M6

234061600

$0.33

27

Loctite 271, 10 ml

293800005

$26.99

28

Hex. Screw M8 X 40

207184060

$2.22

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

Drive Shaft

271001449

$296.99

31

Drive Shaft Plug

272000173

$8.68

32

Synthetic Grease, 400 G

293550010

Unavailable

33

C-Clip

271001575

$6.11

34

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

35

O-Ring

293300044

$1.05

36

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

37

Bellows

272000183

$28.99

38

Norma Clamp

293650077

$7.41

39

Not Available As Spare Part - Friction Washer

Unavailable

40

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

41

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

42

Tie Wrap 94 mm | 4X4

293750001

$1.03

43

Hex. Elastic Nut M8

232581600

$1.48

44

Loctite 243, 10 ml

293800060

$21.49
