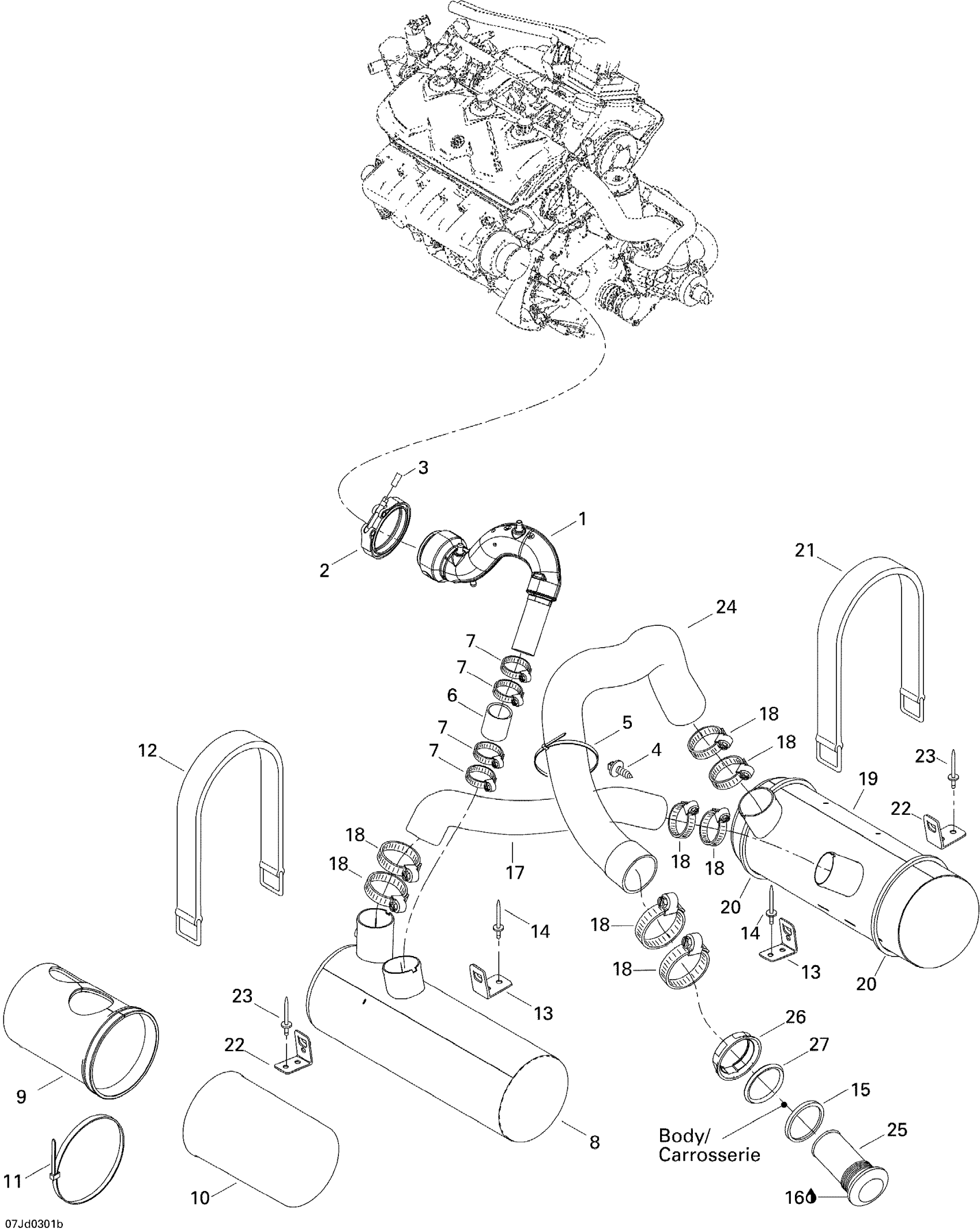

Sea-doo Sportster 4 TEC, 5768/5770, 2003 01- Exhaust Diagram
#
Description
Price
1
EXHAUST PIPE - Call your local BRP dealership
274001030
Unavailable
2
Exhaust Clamp This part replaces 274000959.
274001472
$58.99
3
Polyurethane Hose 10000Mm Long
219704410
$56.99
4
Mount Dart
293730040
$1.04
5
Tie Wrap 368 mm
293750008
$1.04
6
Exhaust Hose
274001302
$35.99
7
TRIDON GEAR CLAMP - Call your local BRP dealership
293650006
Unavailable
8
Muffler
274001057
Unavailable
9
Front Muffler Cover
274001008
Unavailable
10
Rear Muffler Cover
274001027
Unavailable
11
WRAP_TIE 828 X 9 - Call your local BRP dealership
293750020
Unavailable
12
Retainer Strap
293850097
$11.64
13
Strap Clip 90°
204060017
Unavailable
14
Pop Rivet 3/16"
293150088
$0.99
15
GASKET - Call your local BRP dealership
293250041
Unavailable
16
Silicone Sealant 51388, 300 ml
296000309
$36.99
17
FRONT HOSE - Call your local BRP dealership
274001036
Unavailable
18
Tridon Clamp
293650179
$11.49
19
Secondary Muffler
274001059
Unavailable
20
Rubber Strip
293830034
Unavailable
21
Retainer Strap
293850097
$11.64
22
Strap Clip
293850030
$11.12
23
Pop Rivet 3/16"
293150088
$0.99
24
Rear Hose
204340392
Unavailable
25
Exhaust Outlet
204340393
Unavailable
26
Nut 72 mm
274000224
$16.34
27
STABILIZING WASHER - Call your local BRP dealership
274000225
Unavailable
