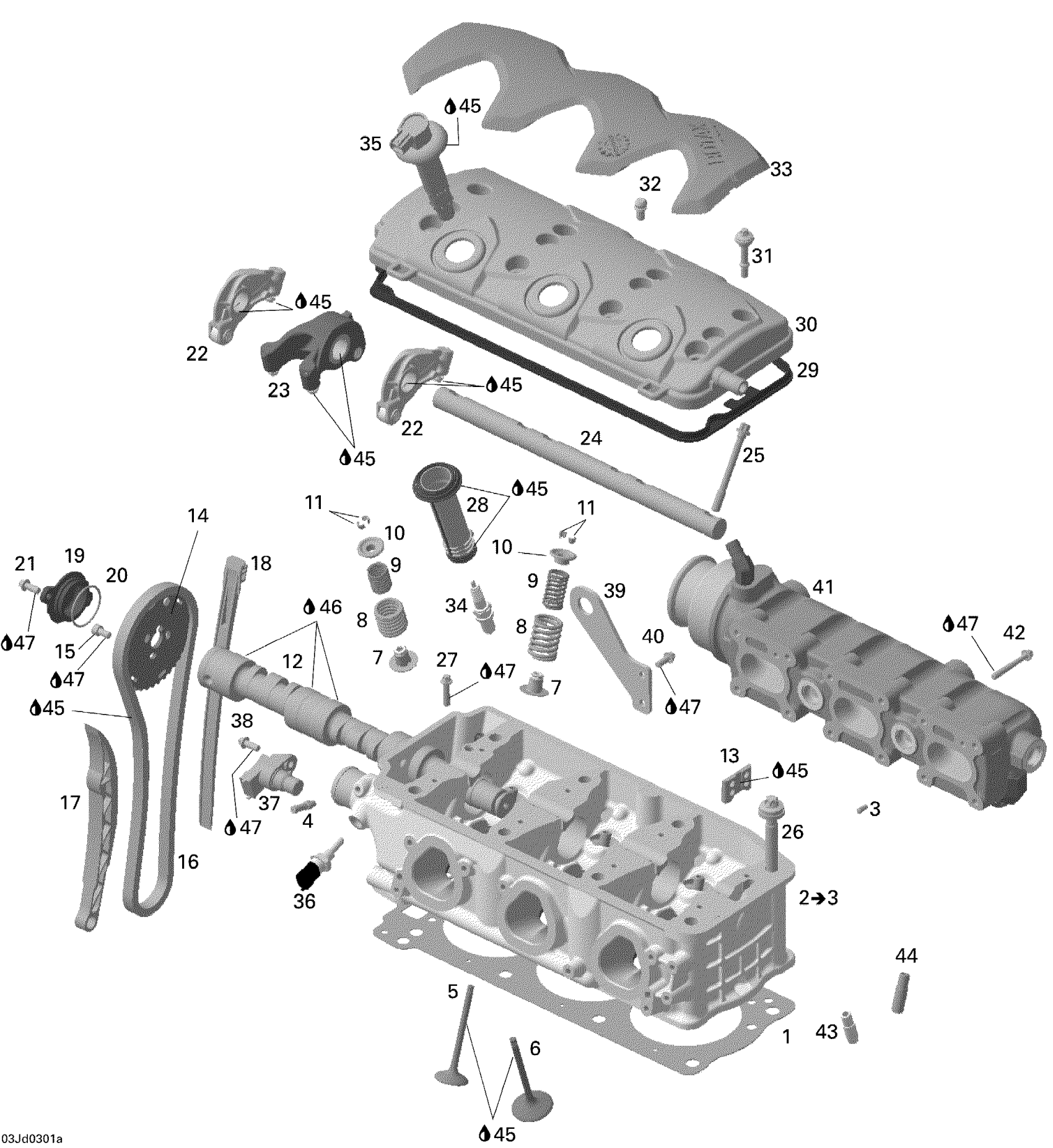

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket This part replaces 420950770.

420950771

$121.99

2

Cylinder Head Ass'y | Includes 2 to 5

420613978

$776.99

3

Drive Pin 5 X 10

420929650

$1.68

4

Hose Nipple

420924724

$14.83

5

Exhaust Valve, 31 mm

420254682

$104.99

6

Intake Valve 38MM

420253163

$41.49

7

Valve Steam Seal

420630202

$7.90

8

Valve Spring

420238180

$15.89

9

Valve Spring Inside

420838280

$12.72

10

Valve Spring Retainer

420254283

$8.57

11

Valve Cotter

420253645

$7.41

12

CAMSHAFT - Call your local BRP dealership

420837621

Unavailable

13

Camshaft Guide

420851694

$31.99

14

Timing Gear, 38 Teeth

420254309

$69.99

15

Allen Screw M6 X 12

420840032

$4.44

16

Camshaft Chain

420898042

$97.49

17

Chain Tension Guide

420236541

$15.89

18

Chain Guide

420236501

$14.28

19

CAMSHAFT COVER - Call your local BRP dealership

420660100

Unavailable

20

O-Ring

420950870

$5.39

21

Torx Flange Screw M6 X 16

420641048

$2.96

22

Rocker Arm, Exhaust

420254329

$137.49

23

Rocker Arm, Inner

420254316

$179.99

24

Rocker Arm Shaft

420854592

Unavailable

25

Torx Screw M8 X 72

420641080

$5.29

26

Torx Flange Screw M11 X 147

420641110

$11.58

27

Torx Flange Screw M6 X 25

420641238

$3.27

28

Spark Plug Pipe

420851754

$27.49

29

Valve Cover Gasket | Included in gasket kit

420950820

$32.99

30

Valve Cover

420811580

Unavailable

31

Allen Screw M6 x 30,5

420440561

$4.44

32

TORX SCREW M6 X 8 - Call your local BRP dealership

420641488

Unavailable

33

Valve Cover

420660167

$58.49

34

Spark Plug, NGK DCP-R8E

715900637

$6.35

35

Ignition Coil Kit This part replaces 420664020.

296000307

$104.99

36

Temperature Sensor

278002895

$39.99

37

Camshaft Position Sensor Ass'y

420664046

$88.99

38

Torx Flange Screw M6 X 16

420641048

$2.96

39

TRANSPORT BRACKET PTO - Call your local BRP dealership

420851615

Unavailable

40

Torx Flange Screw M6 X 16

420641048

$2.96

41

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

42

Torx Flange Screw M6 X 45

420641198

$4.12

43

Inlet Valve Guide

420253922

Unavailable

44

Exhaust Valve Guide

420253927

Unavailable

45

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

46

Isoflex Grease, TOPAS NB52, 50 g

293550021

$56.99

47

Loctite 243, 10 ml

293800060

$21.49
