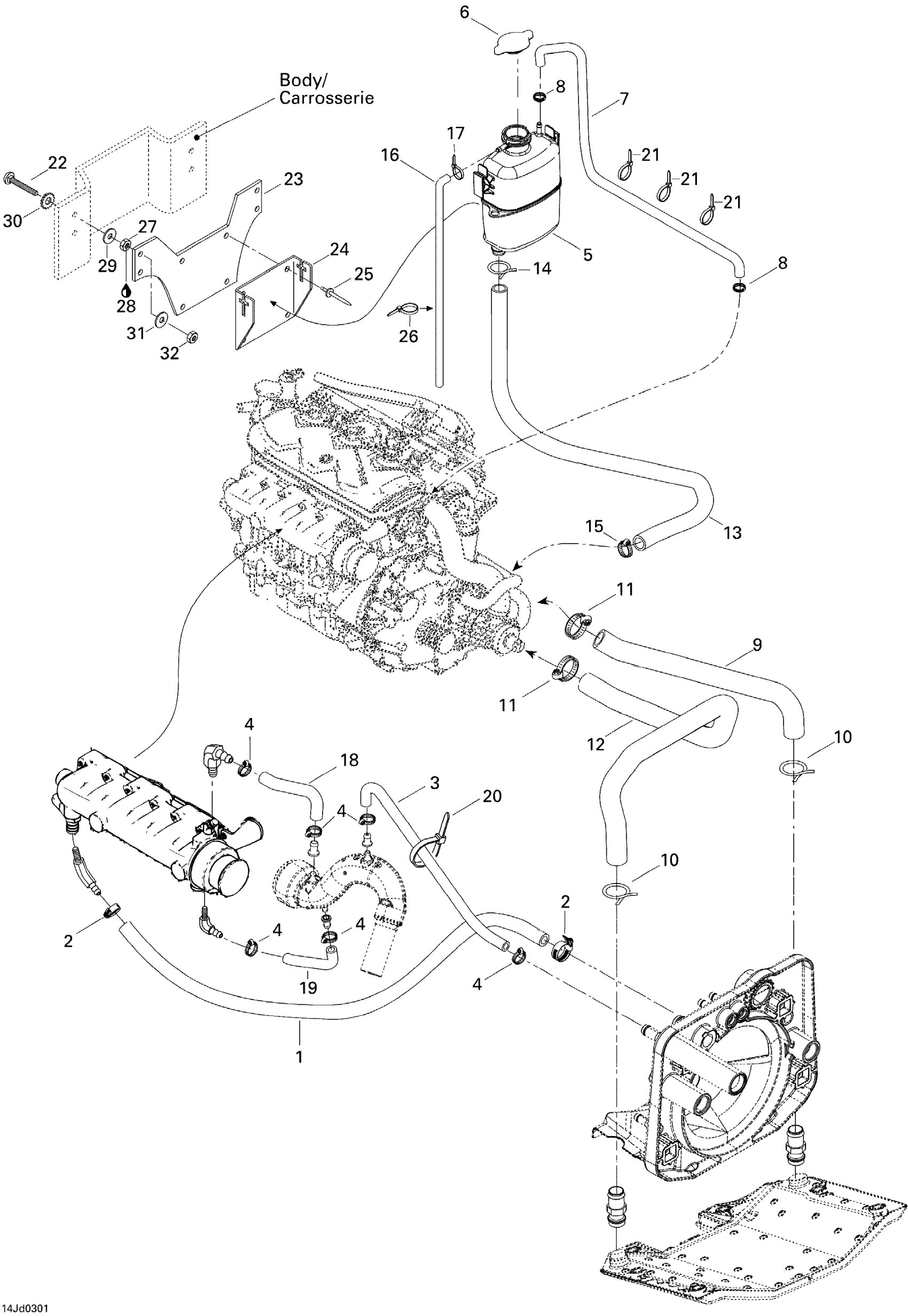

Sea-doo Sportster 4 TEC, 5768/5770, 2003 Cooling System Diagram

#

Description
Price

1

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

2

Tridon Gear Clamp

293650051

$4.19

3

Was 276000001 Hose 12.5 mm

219704394

$51.99

4

Tridon Gear Clamp

293650172

$3.09

5

Coolant Tank

276000086

$109.99

6

Pressure Cap | Includes 720 to 720a

276000100

$25.99

7

Was 275500549 Hose 1/4"

219704357

$194.99

8

Oetiker Gear Clamp

293650025

$3.09

9

RH Radiator Hose

276000248

$58.99

10

DAEMAR CLAMP SPRING - Call your local BRP dealership

293650114

Unavailable

11

Tridon Gear Clamp

293650045

$5.69

12

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

13

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

14

Spring Clamp

293650115

$3.09

15

Tridon Gear Clamp

293650019

$5.82

16

Polyurethane Hose 10000Mm Long

219704410

$56.99

17

Tie Wrap 94 mm | 4X4

293750001

$1.03

18

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

19

Lower Formed Hose

276000104

Unavailable

20

Tie Wrap 368 mm

293750008

$1.04

21

Tie Wrap 142 mm

293750002

$1.25

22

Elevator Bolt

204000130

Unavailable

23

Coolant Tank Bracket Mount

204300132

Unavailable

24

Coolant Tank Bracket

204300126

Unavailable

25

Pop Rivet 3/16"

293150039

$1.49

26

Tie Wrap 142 mm

293750002

$1.25

27

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

28

Loctite 271, 10 ml

293800005

$26.99

29

Stainless, Flat Washer 8 mm

234081600

$0.55

30

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

31

Flat Washer M6, Stainless

234062600

$0.77

32

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable
