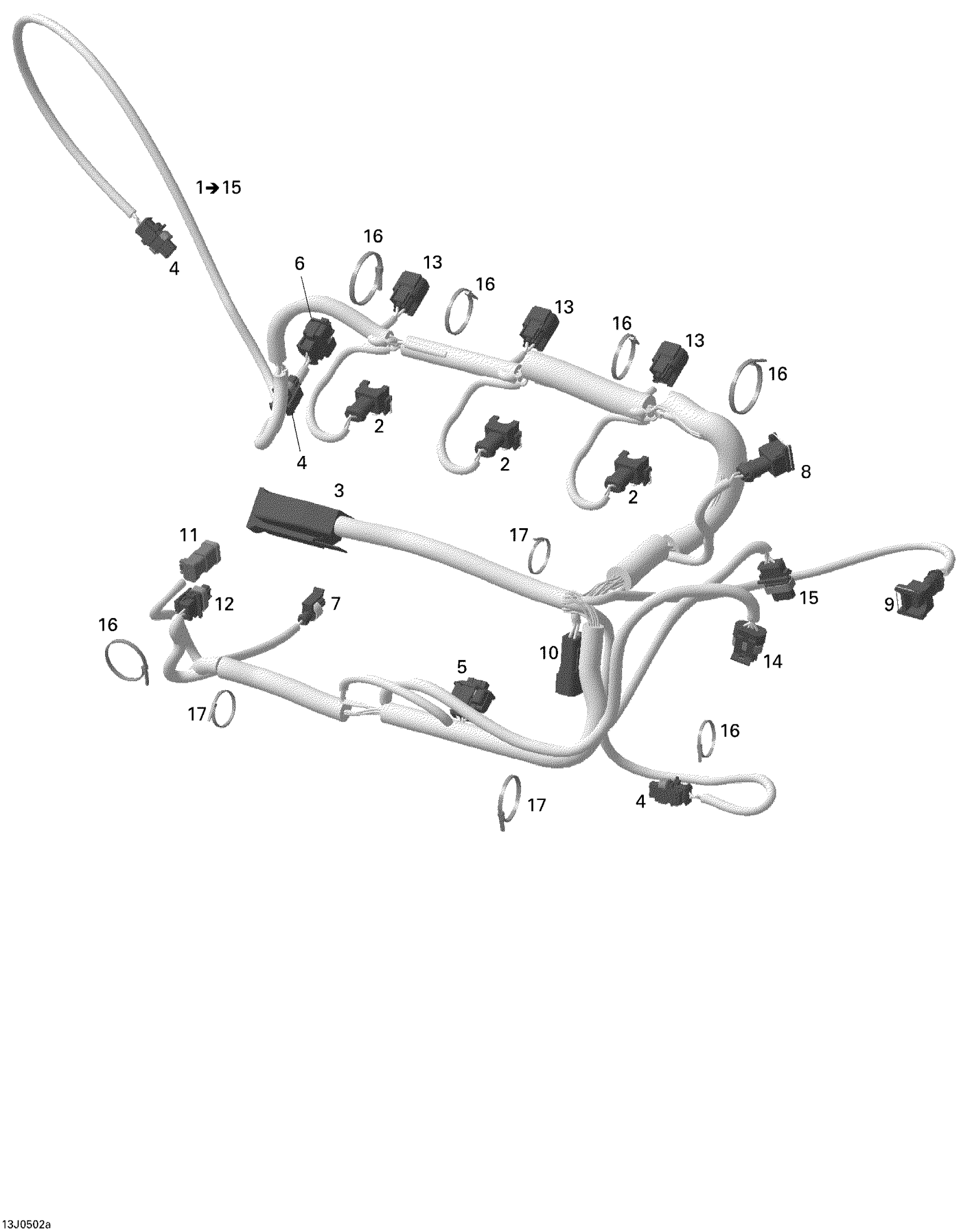

Sea-doo Sportster 4-TEC, 2005 Engine Harness Diagram

#

Description
Price

1

ENGINE WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 17

420664056

Unavailable

2

Male Connector, 2 Circuits

278001003

$46.49

3

ECM Connector

420664450

$27.49

4

Male Housing, 2 Circuits

278001005

$19.49

5

Housing Connector, 3 Circuits

278001829

$21.99

6

Housing Connector, 3 Circuits

278001830

$35.99

7

Male Housing, 1 Circuit

278001012

$16.86

8

Female Terminal Housing, 2 Circuits

415128500

$7.62

9

Female Terminal Housing, 2 Circuits

415128500

$7.62

10

Female Housing, 4 Circuits

278000635

$16.49

11

Connector, Magneto

278001831

Unavailable

12

Male Housing, 2 Circuits

278001005

$19.49

13

CONNECTOR 3 POSITIONS - Call your local BRP dealership

420964100

Unavailable

14

Connector, Idle Bypass Valve

278001833

Unavailable

15

Male Housing, 3 Circuits

278000997

$19.49

16

Tie Rap

420866714

$1.90

17

Tie-Rap

420866716

$1.90
