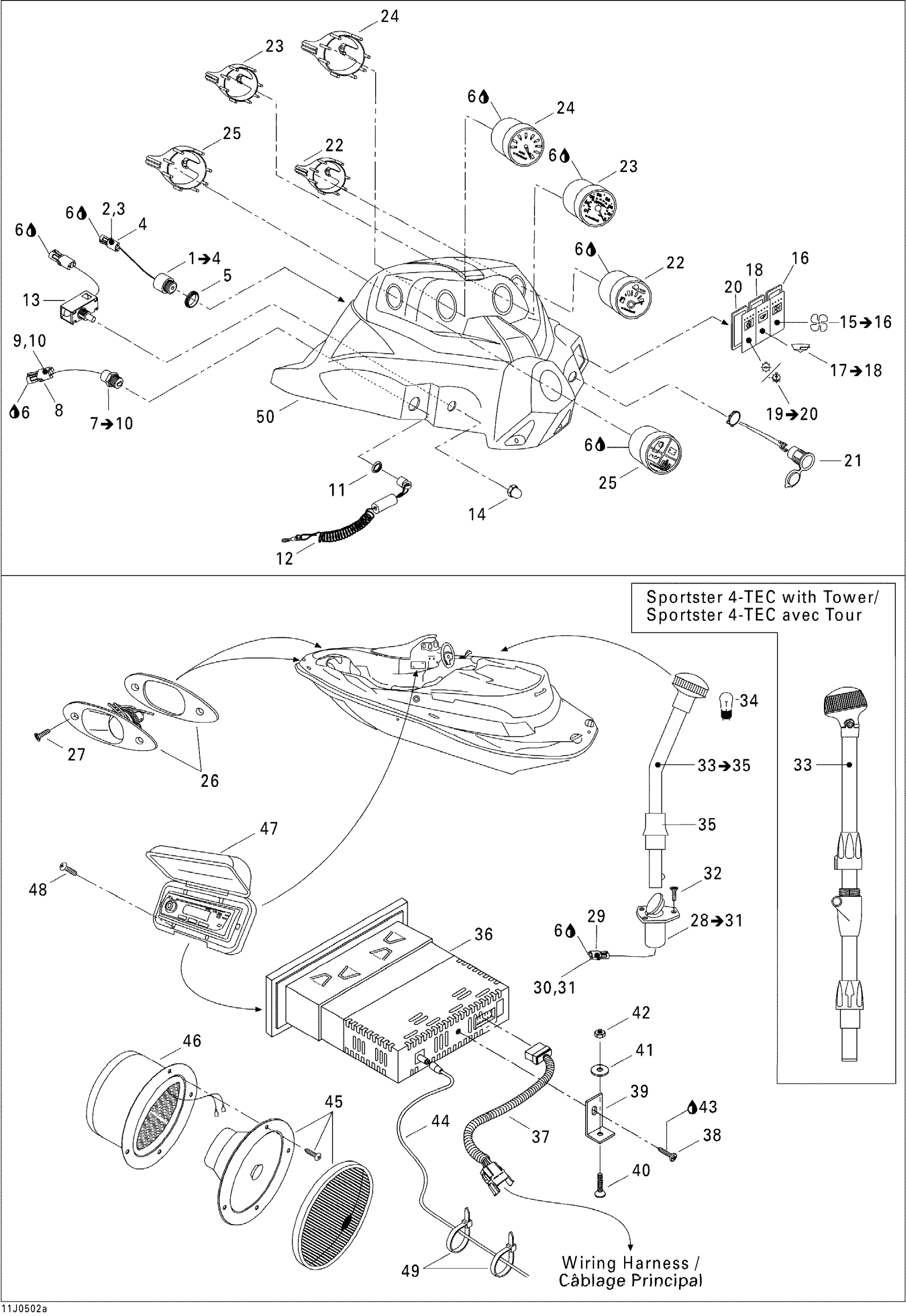

Sea-doo Sportster 4-TEC, 2005 10- Electrical Accessories 1 Diagram
#
1
Buzzer Ass'y
204470913
$92.99
2
Male Terminal | XT Models
278000222
$3.19
3
Wire Seal
278000218
$4.39
4
Female Housing, 2 Circuits
278000217
$9.59
5
Buzzer Nut
278000707
Unavailable
6
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
7
Safety Switch This part replaces 278002325.
278002773
$114.99
8
Male Housing, 3 Circuits
278000273
$9.59
9
Wire Seal
278000218
$4.39
10
Female Terminal
278000223
$3.19
11
Safety Nut (DESS Switch)
278002963
$3.28
12
Safety Lanyard, Antitheft This part replaces 278001543.
278002199
$84.99
13
IGNITION SWITCH - Call your local BRP dealership
278000621
Unavailable
14
IGNITION SWITCH CAP, RED - Call your local BRP dealership
278000565
Unavailable
15
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
16
Gasket
204470132
Unavailable
17
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
18
Gasket
204470132
Unavailable
19
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
20
Gasket
204470132
Unavailable
21
DC Outlet
710001248
$37.99
22
FUEL GAUGE - Call your local BRP dealership
204470956
Unavailable
23
Speed Gauge
204470957
$479.99
24
TACHOMETER GAUGE - Call your local BRP dealership
204470958
$409.99
25
ENGINE WARNING GAUGE - Call your local BRP dealership
204470959
Unavailable
26
LATERAL LIGHT KIT - Call your local BRP dealership
204470908
Unavailable
27
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
28
Rear Light Base Ass'y | Includes 33 to 36
278000674
Unavailable
29
Female Housing, 2 Circuits
278000217
$9.59
30
Male Terminal | XT Models
278000222
$3.19
31
Wire Seal
278000218
$4.39
32
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
33
Rear Light Pole | Models With Tower
204470842
Unavailable
33
Rear Light Pole | Models Without Tower, Includes 39 to 41
204470792
Unavailable
34
Bulb
204470053
Unavailable
35
COLLAR - Call your local BRP dealership
204470350
Unavailable
36
Compact Disk Stereo
204470946
Unavailable
37
Stereo Adaptor Harness
204470930
Unavailable
38
Pan Head Screw M5x8
204100148
Unavailable
39
RADIO SUPPORT - Call your local BRP dealership
204470837
Unavailable
40
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
41
Flat Washer M6, Stainless
234062600
$0.77
42
Hex. Elastic Stop Nut M6
232561600
$1.15
43
Loctite 243, 10 ml
293800060
$21.49
44
Antenna
204470931
Unavailable
45
Black, Speaker
204470947
Unavailable
46
SPEAKER COVER ASS'Y - Call your local BRP dealership
204470982
Unavailable
47
RADIO CD PLAYER COVER - Call your local BRP dealership
204470894
Unavailable
48
Pan Head Tapping Screw M3.5x25
209632560
Unavailable
49
Tie Wrap 94 mm | 4X4
293750001
$1.03
50
Top Dash Ass'y
204470953
Unavailable
