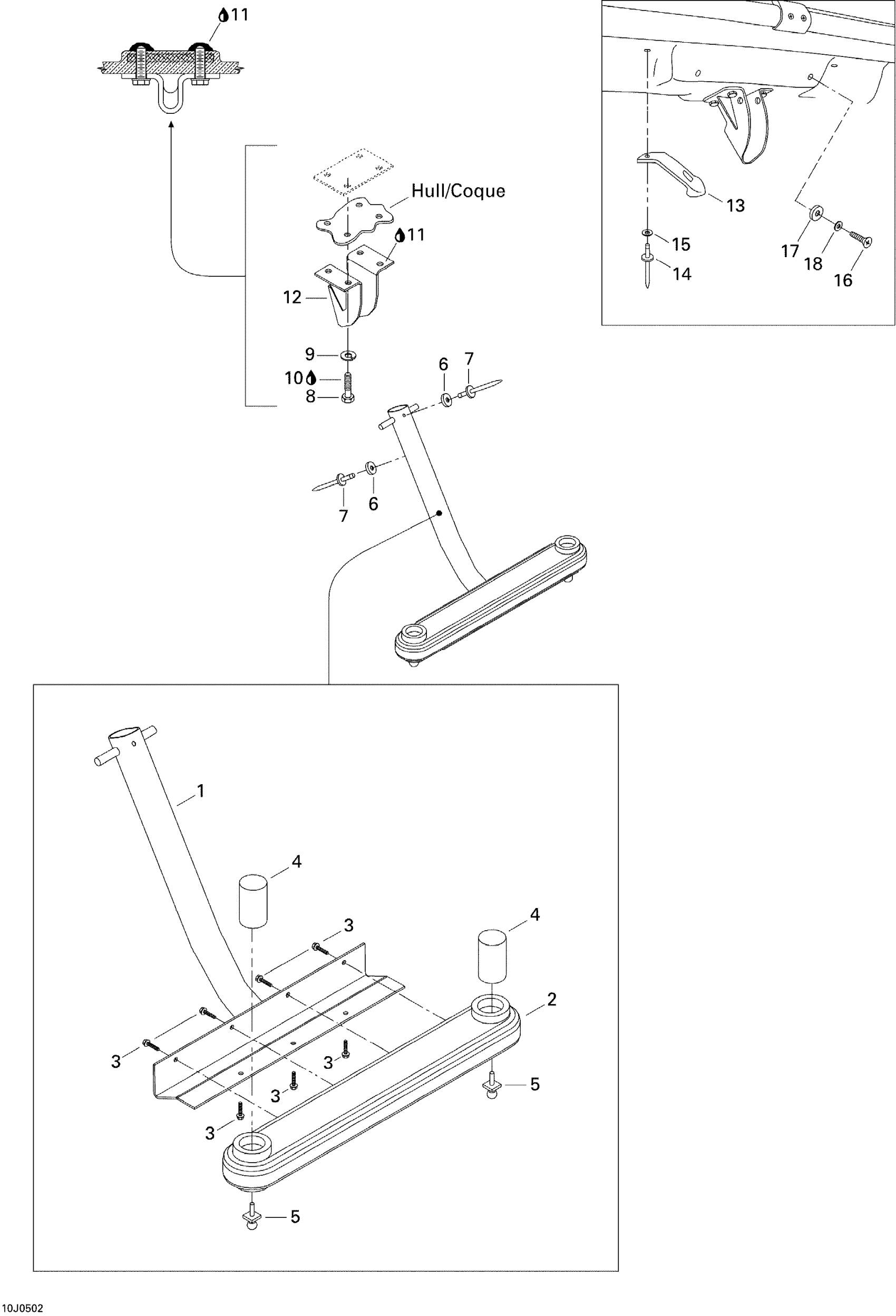

Sea-doo Sportster 4-TEC, 2005 09- Rear Ladder Diagram

STEP ASS'Y - Call your local BRP dealership | Includes 1 to 3

204061103

Unavailable

Step

291001279

Unavailable

Flange Screw K40 X 14

241641460

Unavailable

Cap

291001280

Unavailable

RETAINING KNOB - Call your local BRP dealership

293000085

Unavailable

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

RIVET_POP 3/16 - Call your local BRP dealership

293150055

Unavailable

Hex. Screw M8 X 30

207183060

$1.58

Lock Spring Washer 8 mm, Stainless

234180602

$1.16

Loctite 243, 10 ml

293800060

$21.49

Silicone Sealant 51388, 300 ml

296000309

$36.99

Ladder Bracket

204060829

Unavailable

Hood Latch

570027100

$13.49

Pop Rivet 3/16"

293150013

$1.37

Flat Washer 5 mm, Stainless

234052600

$0.77

PHILLIPS SCREW 6 X 1/2 - Call your local BRP dealership

204100147

Unavailable

BUMPER PAD - Call your local BRP dealership

204073815

Unavailable

Flat Washer M3, Stainless

234032600

$0.55
