- Sportster 4-TEC, 2005
09- Central Cover And Accessories

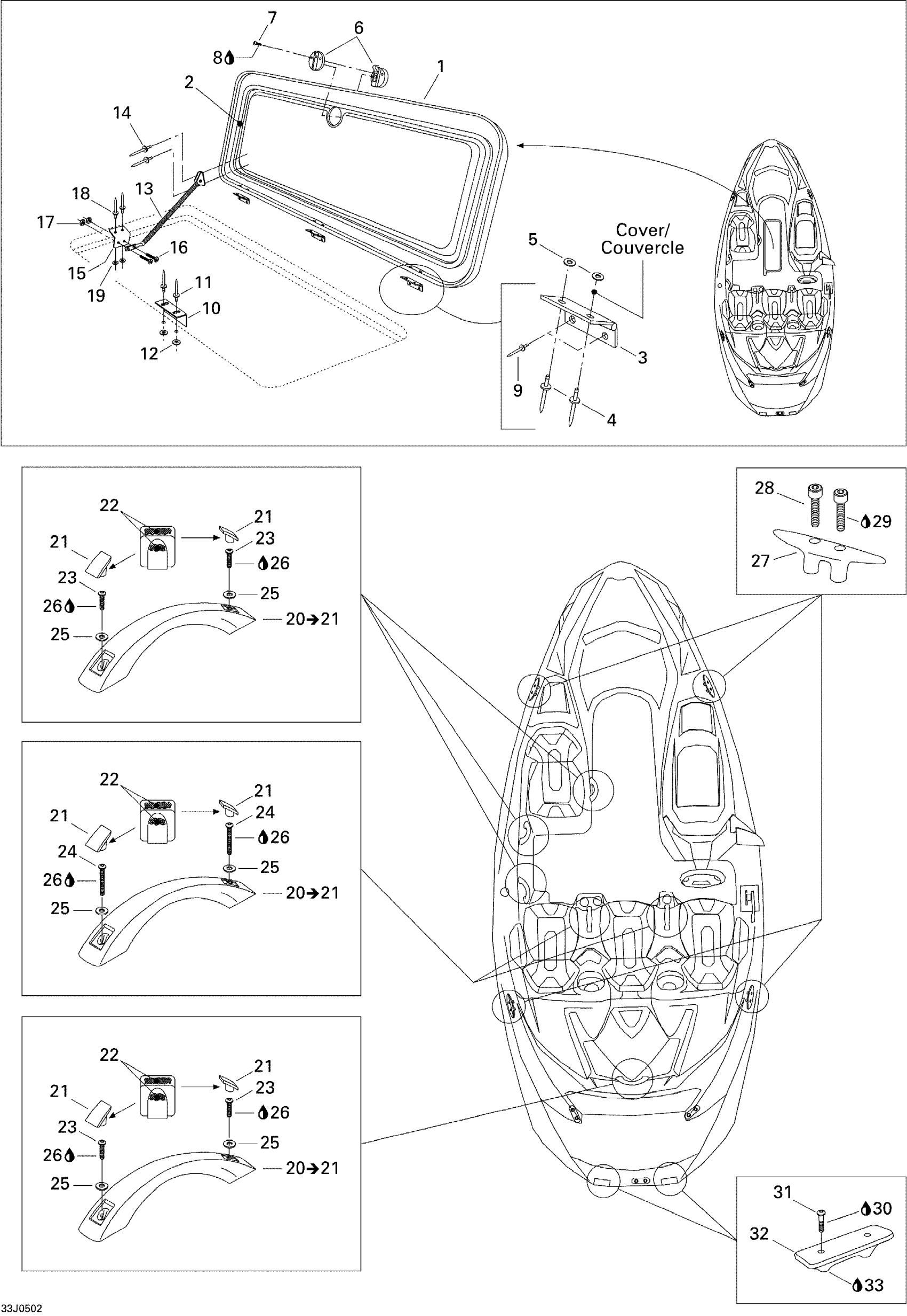

Sea-doo Sportster 4-TEC, 2005 09- Central Cover And Accessories Diagram
#
Description
Price
1
CENTRAL COVER - Call your local BRP dealership
204072636
Unavailable
2
Seal Tray 1000Mm Long
219704368
$13.99
3
HINGE - Call your local BRP dealership
204072601
Unavailable
4
Pop Rivet 3/16"
293150088
$0.99
5
Flat Washer M5, Stainless
234051600
$0.77
6
LATCH, WHITE - Call your local BRP dealership
204070120
Unavailable
7
SCREW M5 X 16 - Call your local BRP dealership
208651660
Unavailable
8
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
9
Pop Rivet 3/16"
293150005
$0.52
9
Pop Rivet 3/16"
293150005
$0.52
10
KEEPER - Call your local BRP dealership
204070060
Unavailable
11
Pop Rivet 3/16"
293150088
$0.99
12
FLAT WASHER 3/16? - Call your local BRP dealership
211200039
Unavailable
13
SPRING SEAT - Call your local BRP dealership
204000071
Unavailable
14
RIVET_POP 3/16 - Call your local BRP dealership
293150055
Unavailable
15
Spring Bracket
291000719
Unavailable
16
PHILLIPS SCREW 6-32 X 3/8 - Call your local BRP dealership
250000231
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
18
Pop Rivet 3/16"
293150043
$2.09
19
FLAT WASHER 3/16? - Call your local BRP dealership
211200039
Unavailable
20
GRIP HANDLE, BLACK - Call your local BRP dealership
204073190
Unavailable
21
GRIP HANDLE, BLACK - Call your local BRP dealership
204073190
Unavailable
22
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
23
SOCKET SCREW M6 X 25 - Call your local BRP dealership
205462560
Unavailable
24
Socket Screw M6 X 40
205464060
$2.22
25
Stainless Flat Washer M6
234061600
$0.33
26
Loctite 243, 10 ml
293800060
$21.49
27
CLEAT - Call your local BRP dealership | STD
204070592
Unavailable
28
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD
204100144
Unavailable
29
Loctite 243, 10 ml
293800060
$21.49
30
Loctite 243, 10 ml
293800060
$21.49
31
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership
205364060
Unavailable
32
GRIP HANDLE, BLACK - Call your local BRP dealership
204070194
Unavailable
33
Silicone Sealant 51388, 300 ml
296000309
$36.99
