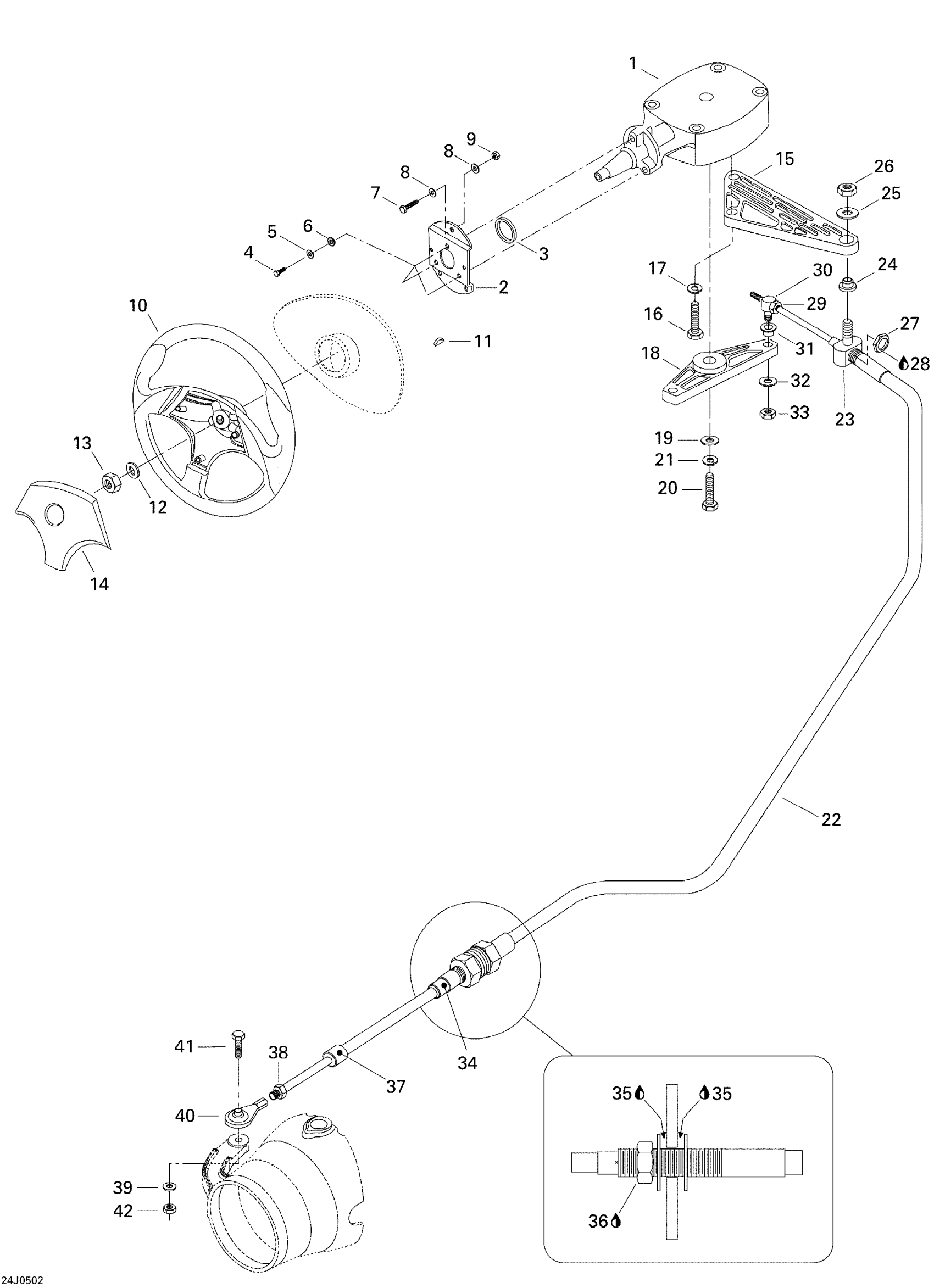

Sea-doo Sportster 4-TEC, 2005 07- Steering System Diagram
#
1
HELM ASS'Y - Call your local BRP dealership | Single HO Engine Models
204390361
Unavailable
2
Support
277000383
Unavailable
3
SPACER - Call your local BRP dealership
277000593
Unavailable
4
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
5
Flat Washer M6, Stainless
234062600
$0.77
6
Serrated Lock Washer 8 mm
234481608
$1.15
7
Hex. Screw M6 X 40
207164060
$3.38
8
Stainless Flat Washer M6
234061600
$0.33
9
Hex. Elastic Stop Nut M6
232561600
$1.15
10
STEERING, BLACK - Call your local BRP dealership
204390440
Unavailable
11
WOODRUFF KEY - Call your local BRP dealership
277000384
Unavailable
12
FLAT WASHER, STAINLESS - Call your local BRP dealership
211200006
Unavailable
13
LOCK NUT 1/2-20 - Call your local BRP dealership
211100021
Unavailable
14
STEERING COVER, YELLOW - Call your local BRP dealership
204390441
Unavailable
15
CABLE SUPPORT - Call your local BRP dealership
277000458
Unavailable
16
HEX. SCREW 1/4-20 X 3/4?, SCOTCH GRIP - Call your local BRP dealership
211000050
Unavailable
17
Lock Washer 1/4”
211200025
$1.29
18
ARM - Call your local BRP dealership
204390040
Unavailable
19
Flat Washer M6, Stainless
234062600
$0.77
20
HEX. SCREW 1/4-20 X 1?, SCOTCH GRIP - Call your local BRP dealership
211000054
Unavailable
21
Lock Washer 1/4”
211200025
$1.29
22
Steering Cable
277001765
$248.99
23
PIVOT 3/8? - Call your local BRP dealership
277000461
Unavailable
24
Flanged Bushing
293350014
$12.99
25
Flat Washer 10 mm, Stainless
234001600
$1.15
26
LOCK NUT - Call your local BRP dealership
211100024
Unavailable
27
HEX. JAM NUT 5/8-18 - Call your local BRP dealership
204390053
Unavailable
28
Loctite 243, 10 ml
293800060
$21.49
29
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
30
PIVOT - Call your local BRP dealership
277000456
Unavailable
31
BUSHING - Call your local BRP dealership
204130095
Unavailable
32
FLAT WASHER - Call your local BRP dealership
211200019
Unavailable
33
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
34
SEAL SWIVEL - Call your local BRP dealership
277000440
Unavailable
35
Silicone Sealant 51388, 300 ml
296000309
$36.99
36
Loctite 243, 10 ml
293800060
$21.49
37
Terminal Wiper
277000441
$11.99
38
HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models
277000439
Unavailable
39
Stainless Flat Washer M6
234061600
$0.33
40
BALL JOINT - Call your local BRP dealership
204120074
Unavailable
41
Hex. Screw M6 X 35
207063560
$2.22
42
Hex. Elastic Stop Nut M6
232561600
$1.15
