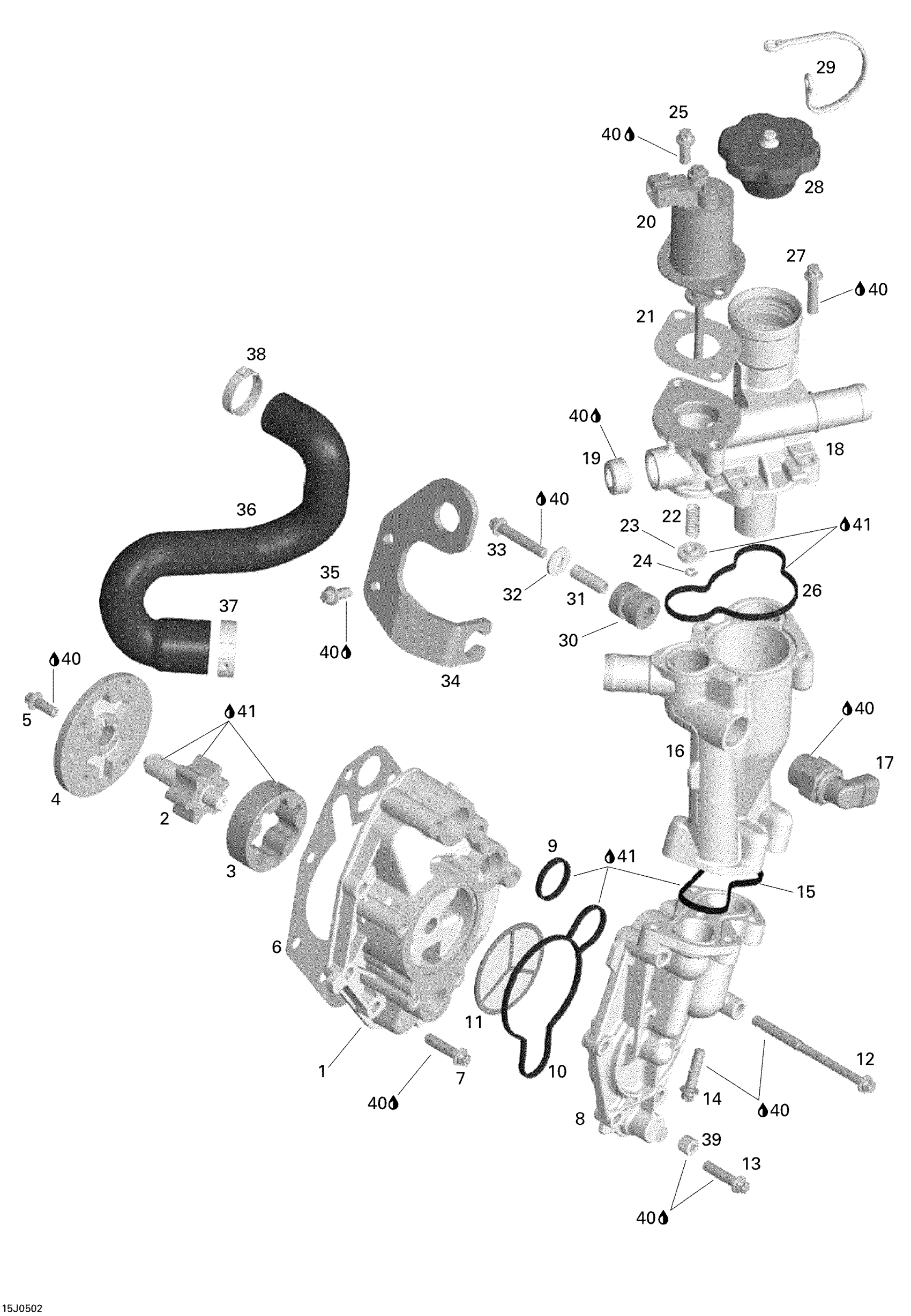

Sea-doo Sportster 4-TEC, 2005 02- Oil Separator Diagram
#
1
OIL PUMP HOUSING - Call your local BRP dealership
420811840
Unavailable
2
PUMP SHAFT ASS'Y - Call your local BRP dealership
420837542
Unavailable
3
Oil Pump Rotor 16 mm
420956675
$36.99
4
Oil Pump Cover
420811851
$33.99
5
Torx Flange Screw M6 X 16
420641048
$2.96
6
Gasket
420950970
$12.64
7
Torx Flange Screw M6 X 25
420641238
$3.27
8
OIL SIEVE COVER - Call your local BRP dealership
420811892
Unavailable
9
SEAL RING - Call your local BRP dealership
420630240
Unavailable
10
GASKET - Call your local BRP dealership
420950850
Unavailable
11
OIL SIEVE - Call your local BRP dealership
420256570
Unavailable
12
Torx Flange Screw M6 X 85
420641228
$7.41
13
Torx Flange Screw M6 X 25
420641238
$3.27
14
Torx Flange Screw M6 X 25
420641238
$3.27
15
GASKET - Call your local BRP dealership
420630231
Unavailable
16
OIL SEPARATOR HOUSING - Call your local BRP dealership
420956761
Unavailable
17
Interr.Pression*Oil Tk Pres Sw This part replaces 420256885.
420256886
$51.99
18
OIL SEPARATOR COVER - Call your local BRP dealership
420811962
Unavailable
19
Plug Screw M20 X 1.5
420641317
$14.22
20
SOLENOID SHUT-OFF - Call your local BRP dealership
420956661
$329.99
21
Gasket
420630540
Unavailable
22
COMPRESSION SPRING - Call your local BRP dealership
420939250
Unavailable
23
VALVE DISC - Call your local BRP dealership
420856055
Unavailable
24
RETAINING RING - Call your local BRP dealership
420845620
Unavailable
25
Torx Flange Screw M6 X 16
420641048
$2.96
26
GASKET - Call your local BRP dealership
420630220
Unavailable
27
Torx Flange Screw M6 X 25
420641238
$3.27
28
Plug Cover, Yellow
420956923
$23.49
29
Retaining Band
420660620
$7.41
30
Rubber Bracket
420660090
$4.12
31
SPACER - Call your local BRP dealership
420847970
Unavailable
32
Flat Washer M6
420827968
$1.90
33
Torx Flange Screw M6 X 35
420641258
$3.38
34
FRONT TRANSPORT BRACKET - Call your local BRP dealership
420851610
Unavailable
35
Torx Flange Screw M6 X 16
420641048
$2.96
36
Formed Hose
420956970
Unavailable
37
Gear Clamp
420851673
$5.71
38
Oeticker Gear Clamp, 25.6-706R
509000442
$5.19
39
Plug Screw M10 X 1
420641323
$14.28
40
Loctite 243, 10 ml
293800060
$21.49
41
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
