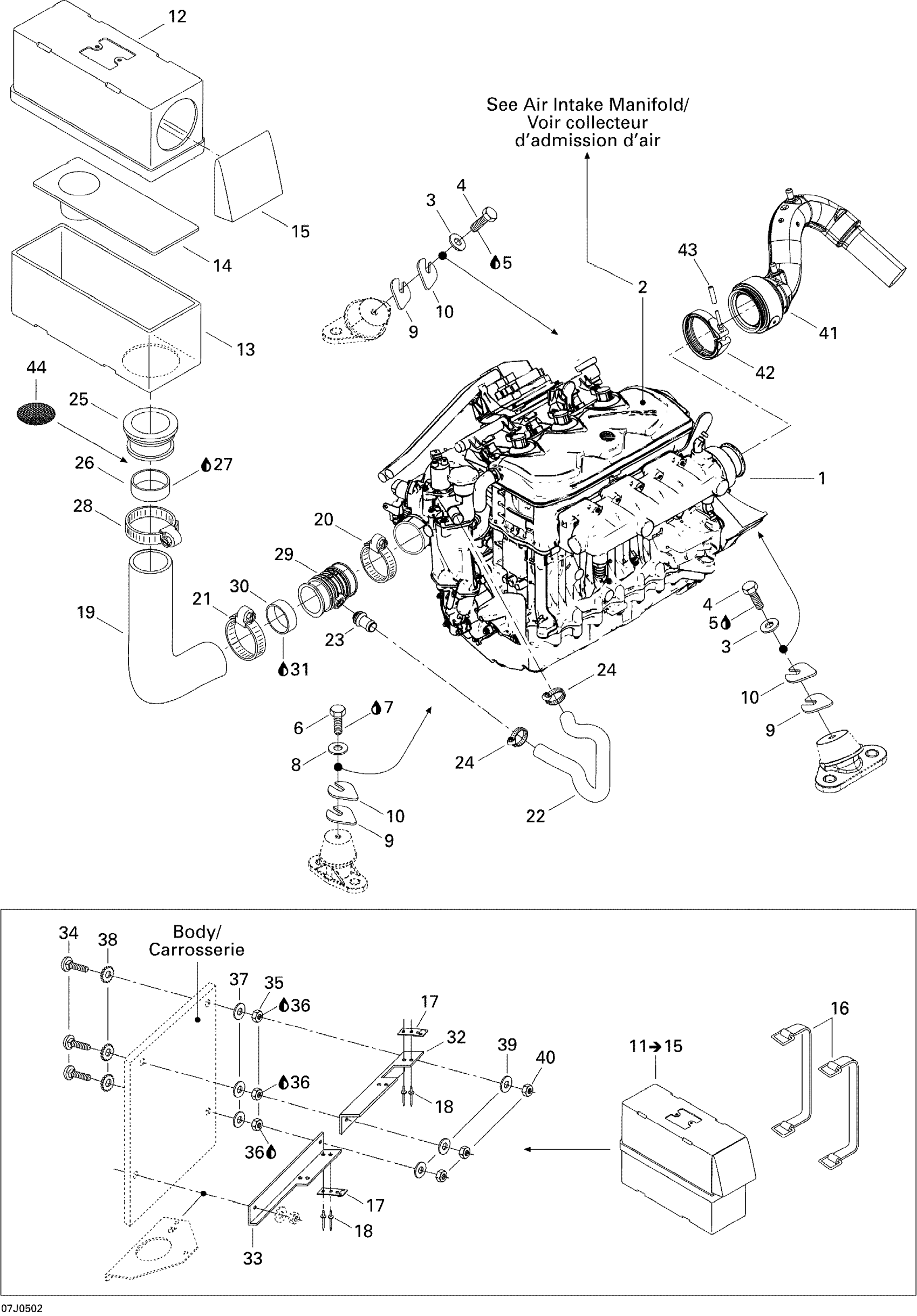

Sea-doo Sportster 4-TEC, 2005 01- Engine And Air Intake Diagram
#
1
Rotax Engine 4 Strokes, 1503 NA
270000639
Unavailable
2
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
3
Flat Washer 8 mm, Stainless
234082600
$2.43
4
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
5
Loctite 243, 10 ml
293800060
$21.49
6
HEX. SCREW M8 X 25 - Call your local BRP dealership
207182560
Unavailable
7
Loctite 243, 10 ml
293800060
$21.49
8
Flat Washer 8 mm, Stainless
234082600
$2.43
9
SHIM 1.3 MM - Call your local BRP dealership
270000025
Unavailable
10
SHIM 0.4 MM - Call your local BRP dealership
270000024
Unavailable
11
Air Silencer Ass'y
204250258
Unavailable
12
Air Silencer, Upper
204250260
Unavailable
13
Air Silencer, Lower
204250261
Unavailable
14
Air Silencer Divider
204250269
Unavailable
15
Air Silencer Hood
204250270
Unavailable
16
Retainer Strap
293850097
$11.64
17
STRAP CLIP - Call your local BRP dealership
293850024
Unavailable
18
Pop Rivet 3/16"
204000081
$1.49
19
INTAKE HOSE - Call your local BRP dealership
204340435
Unavailable
20
TRIDON GEAR CLAMP - Call your local BRP dealership
293650061
Unavailable
21
Tridon Clamp
293650179
$11.49
22
FORMED HOSE - Call your local BRP dealership
275500497
Unavailable
23
Breather Valve
273000234
$14.49
24
Tridon Gear Clamp
293650051
$4.19
25
INTAKE ADAPTATOR - Call your local BRP dealership
508000254
Unavailable
26
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
27
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
28
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
29
Adaptor Hose, Engine
204250276
Unavailable
30
ADMISSION ADAPTOR SUPPORT - Call your local BRP dealership
204250275
Unavailable
31
ADHESIVE LOCTITE 495 - Call your local BRP dealership
293800021
Unavailable
32
Air Silencer Bracket, Upper
204250285
Unavailable
33
Air Silencer Bracket, Lower
204250284
Unavailable
34
Elevator Bolt
204000130
Unavailable
35
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
36
Loctite 271, 10 ml
293800005
$26.99
37
Stainless, Flat Washer 8 mm
234081600
$0.55
38
TOOTHED LOCK WASHER - Call your local BRP dealership
234381608
Unavailable
39
Flat Washer M6, Stainless
234062600
$0.77
40
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
41
EXHAUST PIPE - Call your local BRP dealership
274001030
Unavailable
42
Exhaust Clamp This part replaces 274000959.
274001472
$58.99
43
Polyurethane Hose 10000Mm Long
219704410
$56.99
44
Intake Screen
204250395
$25.99
