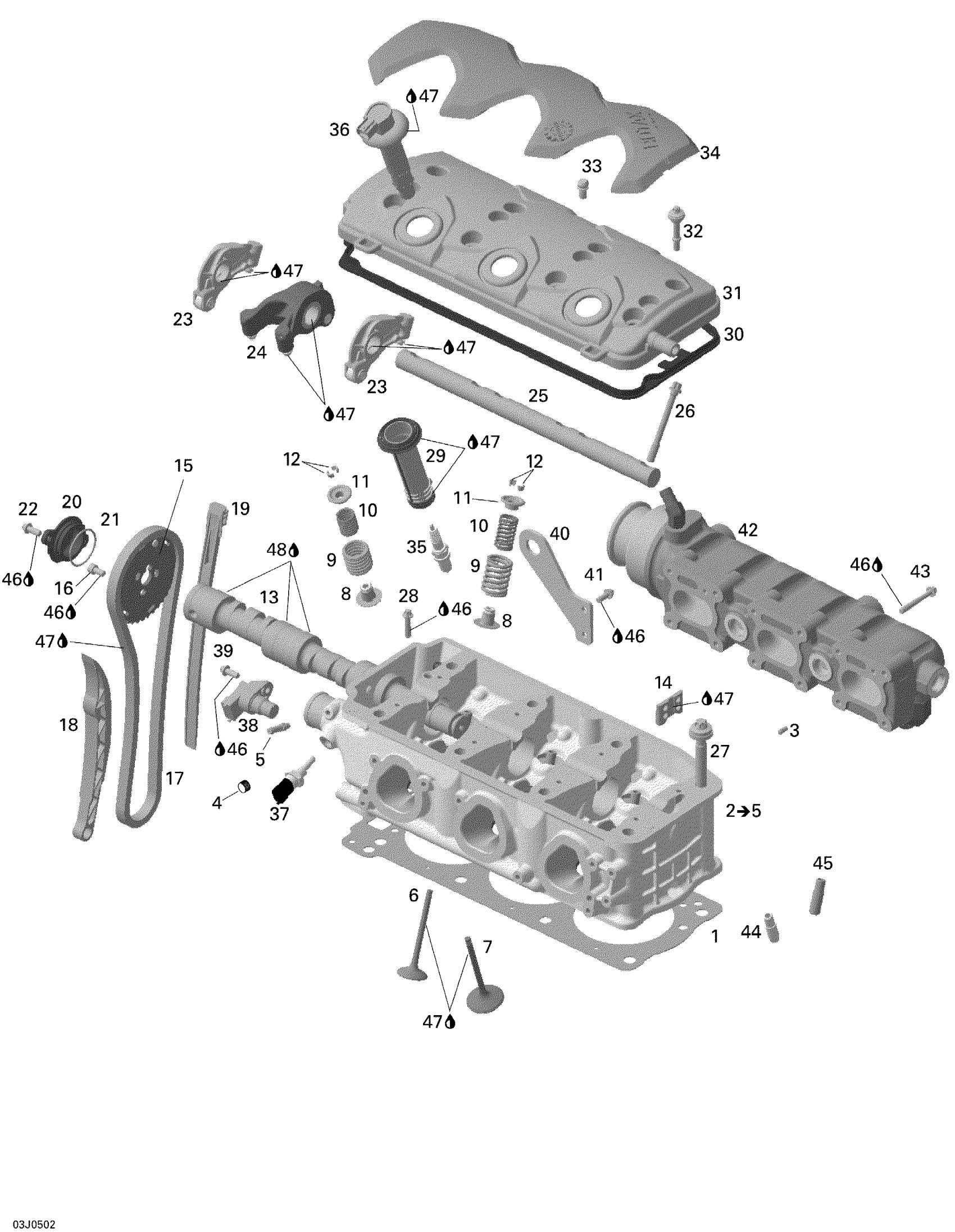

Sea-doo Sportster 4-TEC, 2005 01- Cylinder Head Diagram
#
1
Cylinder Head Gasket This part replaces 420950770.
420950771
$121.99
2
Cylinder Head Ass'y | Includes 2 to 5
420613978
$776.99
2
REBUILD-CYLINDER HEAD 1503 - Call your local BRP dealership
421000644
Unavailable
3
Drive Pin 5 X 10
420929650
$1.68
4
Plug Screw M10 X 1
420641323
$14.28
5
Hose Nipple
420924724
$14.83
6
Exhaust Valve, 31 mm
420254682
$104.99
7
Intake Valve 38MM
420253163
$41.49
8
Valve Steam Seal
420630202
$7.90
9
Valve Spring
420238180
$15.89
10
Valve Spring Inside
420838280
$12.72
11
Valve Spring Retainer
420254283
$8.57
12
Valve Cotter
420253645
$7.41
13
CAMSHAFT - Call your local BRP dealership
420837621
Unavailable
14
Camshaft Guide
420851694
$31.99
15
Timing Gear, 38 Teeth
420254309
$69.99
16
Allen Screw M6 X 12
420840032
$4.44
17
Camshaft Chain
420898042
$97.49
18
Chain Tension Guide
420236541
$15.89
19
Chain Guide
420236501
$14.28
20
CAMSHAFT COVER - Call your local BRP dealership
420660100
Unavailable
21
O-Ring
420950870
$5.39
22
Torx Flange Screw M6 X 16
420641048
$2.96
23
Rocker Arm, Exhaust
420254329
$137.49
24
Rocker Arm, Inner
420254316
$179.99
25
Rocker Arm Shaft
420854592
Unavailable
26
Torx Screw M8 X 72
420641080
$5.29
27
Torx Flange Screw M11 X 147
420641110
$11.58
28
Torx Flange Screw M6 X 25
420641238
$3.27
29
Spark Plug Pipe
420851754
$27.49
30
Valve Cover Gasket | Included in gasket kit
420950820
$32.99
31
Valve Cover
420811582
Unavailable
32
Allen Screw M6 x 30,5
420440561
$4.44
33
TORX SCREW M6 X 8 - Call your local BRP dealership
420641488
Unavailable
34
Valve Cover
420660167
$58.49
35
Spark Plug, NGK DCP-R8E
715900637
$6.35
36
Ignition Coil Kit This part replaces 420664020.
296000307
$104.99
37
Temperature Sensor
278002895
$39.99
38
Camshaft Position Sensor Ass'y
420664046
$88.99
39
Torx Flange Screw M6 X 16
420641048
$2.96
40
Transport Bracket PTO
420851618
$27.49
41
Torx Flange Screw M6 X 16
420641048
$2.96
42
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.
296000422
$839.99
43
Torx Flange Screw M6 X 45
420641198
$4.12
44
Valve Guide | Inner diameter machined
420253929
$46.49
45
Valve Guide | Inner diameter machined
420253929
$46.49
46
Loctite 243, 10 ml
293800060
$21.49
47
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
48
Isoflex Grease, TOPAS NB52, 50 g
293550021
$56.99
