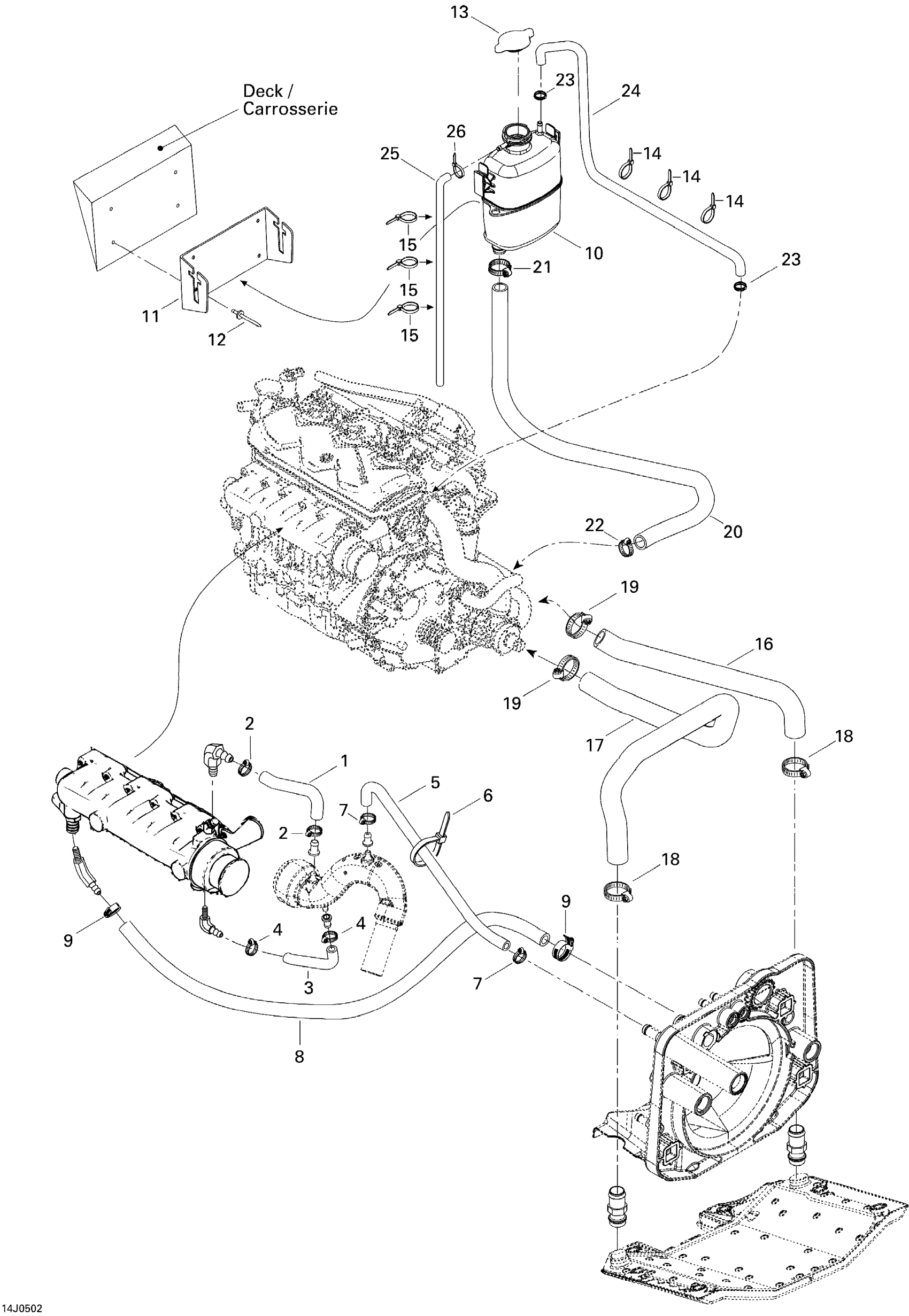

Sea-doo Sportster 4-TEC, 2005 Cooling System Diagram

#

Description
Price

1

UPPER FORMED HOSE - Call your local BRP dealership

276000103

Unavailable

2

Tridon Gear Clamp

293650172

$3.09

3

Lower Formed Hose

276000104

Unavailable

4

Tridon Gear Clamp

293650172

$3.09

5

Was 276000001 Hose 12.5 mm

219704394

$51.99

6

Tie Wrap 368 mm

293750008

$1.04

7

Tridon Gear Clamp

293650172

$3.09

8

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

9

Tridon Gear Clamp

293650051

$4.19

10

Coolant Tank

276000086

$109.99

11

Coolant Tank Bracket

204300165

Unavailable

12

Pop Rivet 3/16"

293150039

$1.49

13

Pressure Cap | Includes 720 to 720a

276000100

$25.99

14

Tie Wrap 142 mm

293750002

$1.25

15

Tie Wrap 142 mm

293750002

$1.25

16

RH Radiator Hose

276000248

$58.99

17

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

18

Tridon Gear Clamp

293650045

$5.69

19

Tridon Gear Clamp

293650045

$5.69

20

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

21

Tridon Gear Clamp

293650051

$4.19

22

Tridon Gear Clamp

293650019

$5.82

23

Oetiker Gear Clamp

293650025

$3.09

24

Was 275500549 Hose 1/4"

219704357

$194.99

25

Polyurethane Hose 10000Mm Long

219704410

$56.99

26

Tie Wrap 94 mm | 4X4

293750001

$1.03
