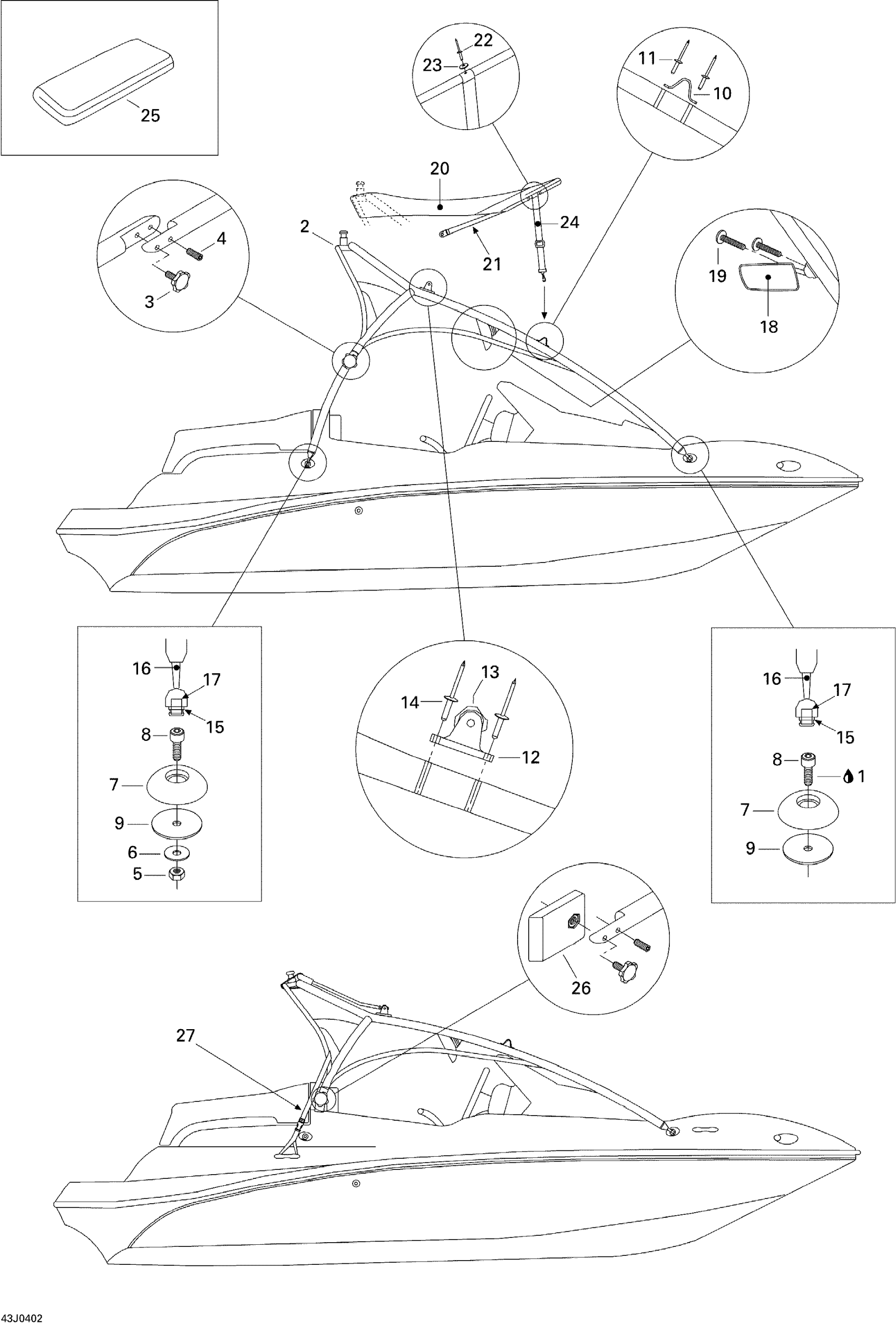

Sea-doo Sportster 4-TEC, 2004 09- Tower and Bimini Top Diagram
#
Description
Price
1
Loctite 243, 10 ml
293800060
$21.49
2
Tower
204071824
Unavailable
3
Fluted Knob
204071433
Unavailable
4
SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership
204100094
Unavailable
5
LOCK NUT 1/2? - Call your local BRP dealership
204100131
Unavailable
6
FENDER WASHER - Call your local BRP dealership
204100132
Unavailable
7
Support Tower
204071816
Unavailable
8
Socket Head Screw 1/2-13 X 2”
204100130
Unavailable
9
Mount Gasket
204071823
Unavailable
10
STRAP EYE - Call your local BRP dealership
204071845
Unavailable
11
RIVET 5/32 X 3/8 SS - Call your local BRP dealership
204130057
Unavailable
12
BIMINI BRACKET - Call your local BRP dealership
204071846
Unavailable
13
Knob, Black
204071847
Unavailable
14
RIVET 3/16 X 1/2 SS - Call your local BRP dealership
204130058
Unavailable
15
Turret
204071927
Unavailable
16
Pivot Screw
204100140
Unavailable
17
Bushing
204130082
Unavailable
18
SKI MIRROR - Call your local BRP dealership This part replaces 204071420.
295100386
Unavailable
19
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership
204100129
Unavailable
20
Bimini Top
204071840
Unavailable
21
Bimini Frame
204071841
Unavailable
22
Pop Rivet 3/16"
293150039
$1.49
23
Not Available As Spare Part - Friction Washer
Unavailable
24
FRONT STRAP - Call your local BRP dealership
204071842
Unavailable
25
BIMINI TOP BOOT - Call your local BRP dealership
204071843
Unavailable
26
Spacer
204071829
Unavailable
27
TOWER STRAP - Call your local BRP dealership
204071830
Unavailable
