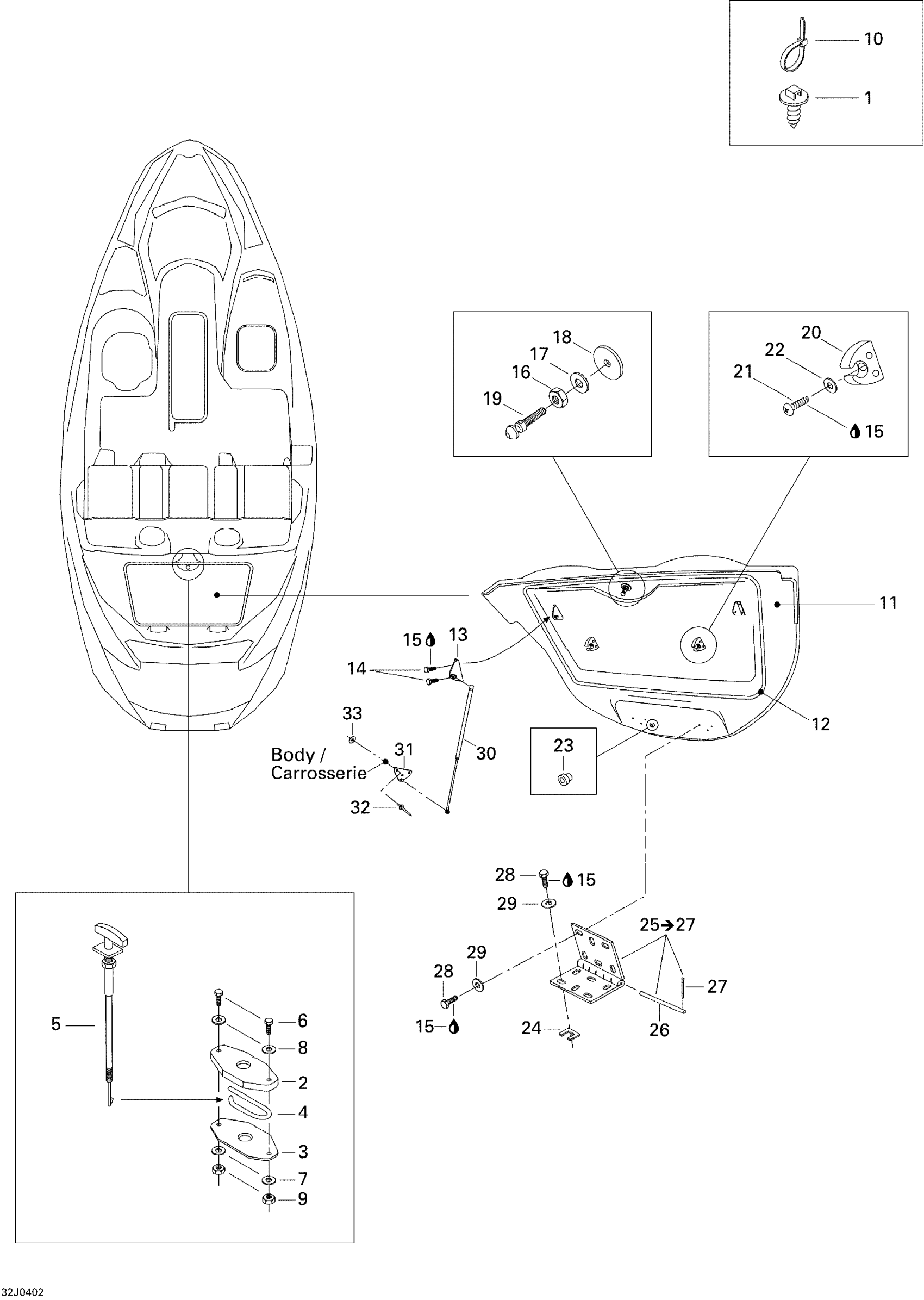

Sea-doo Sportster 4-TEC, 2004 Engine Compartment Diagram

#

Description
Price

1

Mount Dart

293730040

$1.04

2

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

3

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

4

SPRING - Call your local BRP dealership

204070038

Unavailable

5

LATCH COVER CABLE - Call your local BRP dealership

204070081

Unavailable

6

Hex. Screw M6 X 35

207163560

$1.49

7

Flat Washer M6, Stainless

234062600

$0.77

8

Stainless Flat Washer M6

234061600

$0.33

9

Hex. Elastic Stop Nut M6

232561600

$1.15

10

Tie-Rap 180 mm

414115200

$0.11

11

Engine Cover

204071973

Unavailable

12

Was 293200017 Neoprene Seal

219704365

$149.99

13

Shock Bracket

204073074

$27.99

14

Hex. Screw M4 X 16 | Europe

207141660

$1.47

15

Loctite 243, 10 ml

293800060

$21.49

16

Hex. Jam Nut M10

232100600

$2.22

17

Flat Washer 10 mm, Stainless

234002600

$2.22

18

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

19

Latch Stud

204700001

Unavailable

20

Pole Support

291000642

Unavailable

21

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

22

Flat Washer 4 mm

234040600

$0.55

23

GROMMET - Call your local BRP dealership

293720017

Unavailable

24

SPACER 3.2 MM - Call your local BRP dealership

204070047

Unavailable

25

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

26

HINGE ROD - Call your local BRP dealership

204070204

Unavailable

27

Cotter Pin M2.5 X 12

204070205

Unavailable

28

Hex. Screw M6 X 25

207162560

$1.47

29

Stainless Flat Washer M6

234061600

$0.33

30

GAS SHOCK - Call your local BRP dealership

204071920

Unavailable

31

Shock Bracket

204071673

Unavailable

32

Pop Rivet 3/16"

293150043

$2.09

33

Flat Washer M5, Stainless

234051600

$0.77
