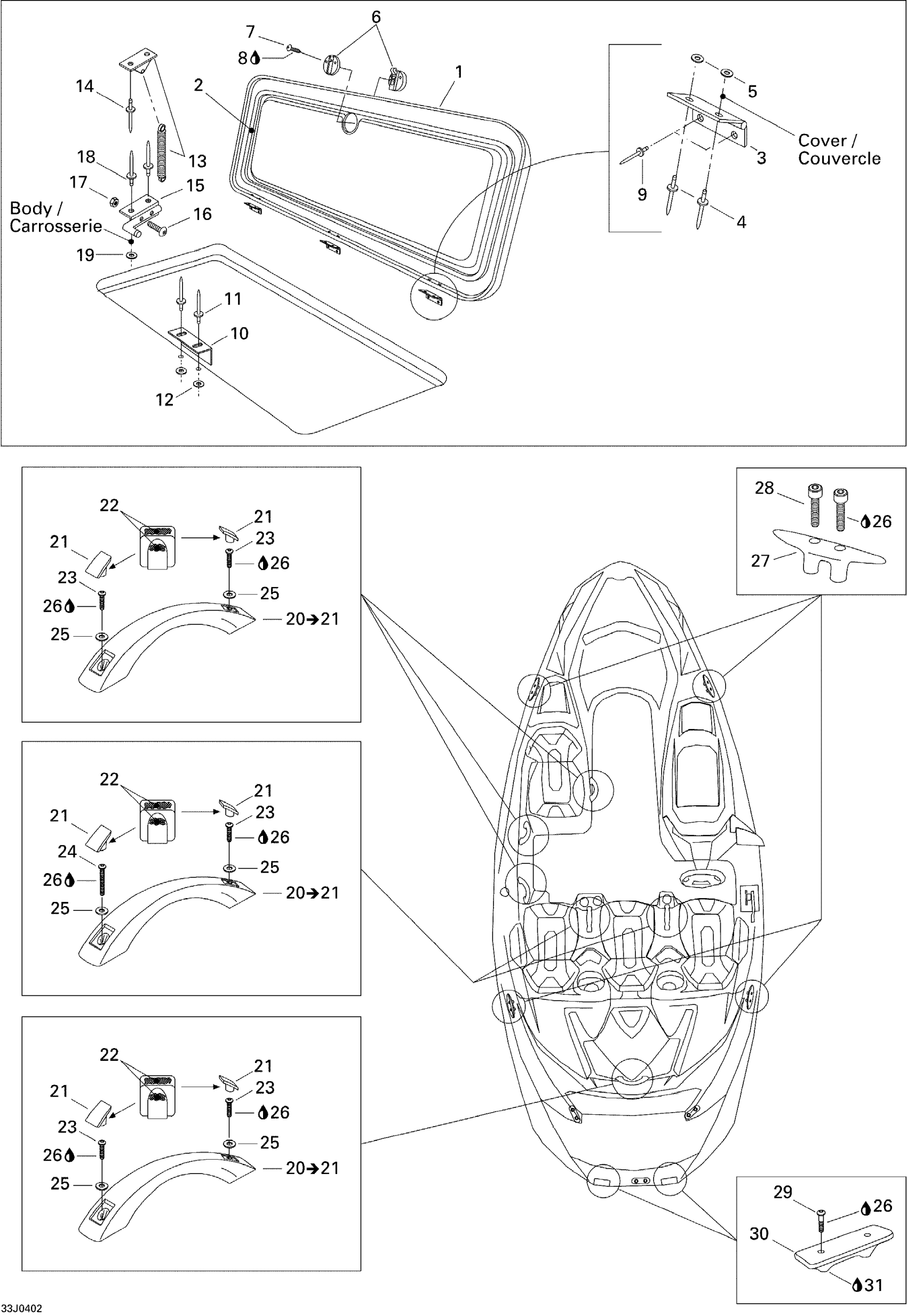

Sea-doo Sportster 4-TEC, 2004 Central Cover and Accessories Diagram

#

Description
Price

1

Center Cover

204071969

Unavailable

2

Seal Tray 1000Mm Long

219704368

$13.99

3

HINGE - Call your local BRP dealership

204072601

Unavailable

4

Pop Rivet 3/16"

293150088

$0.99

5

Flat Washer M5, Stainless

234051600

$0.77

6

LATCH, WHITE - Call your local BRP dealership

204070120

Unavailable

7

SCREW M5 X 16 - Call your local BRP dealership

208651660

Unavailable

8

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

9

Pop Rivet 3/16"

293150088

$0.99

10

KEEPER - Call your local BRP dealership

204070060

Unavailable

11

Pop Rivet 3/16"

293150088

$0.99

12

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

13

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

14

RIVET_POP 3/16 - Call your local BRP dealership

293150055

Unavailable

15

Spring Bracket

291000719

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Pop Rivet 3/16"

293150043

$2.09

19

FLAT WASHER 3/16? - Call your local BRP dealership

211200039

Unavailable

20

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

21

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

22

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

23

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

24

Socket Screw M6 X 40

205464060

$2.22

25

Stainless Flat Washer M6

234061600

$0.33

26

Loctite 243, 10 ml

293800060

$21.49

27

CLEAT - Call your local BRP dealership | STD

204070592

Unavailable

28

SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership | STD

204100144

Unavailable

29

SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership

205364060

Unavailable

30

GRIP HANDLE, BLACK - Call your local BRP dealership

204070194

Unavailable

31

Silicone Sealant 51388, 300 ml

296000309

$36.99
