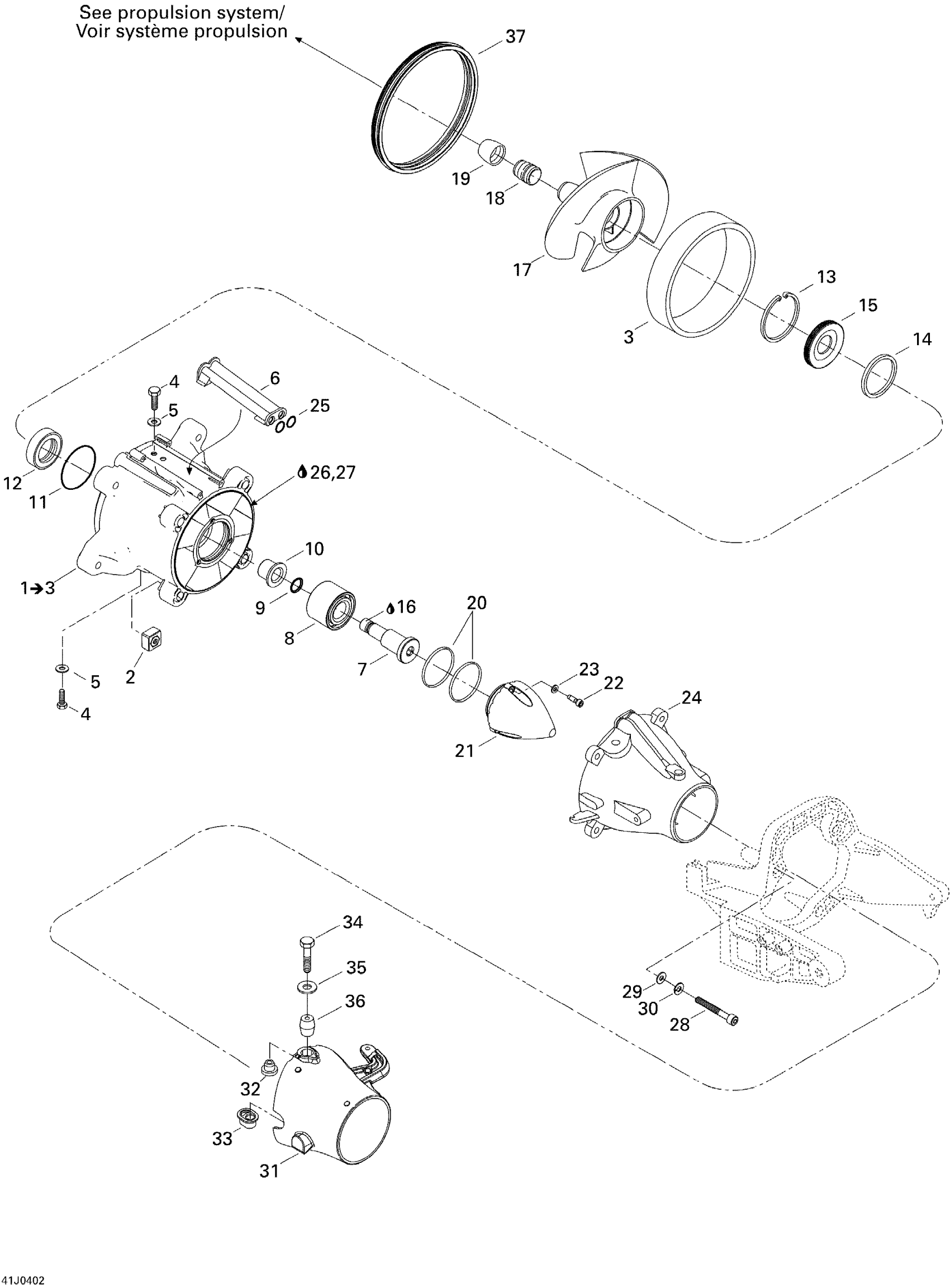

Sea-doo Sportster 4-TEC, 2004 Pump Diagram
#
1
Impeler Housing Ass'y | Includes 9 to 12
267000056
Unavailable
2
Square Nut M8
211100033
Unavailable
3
Wear Ring
267000419
Unavailable
4
Hex. Plastite Screw #10 X 3/8"
250000040
Unavailable
5
Flat Washer M5, Stainless
234051600
Unavailable
6
Water Outlet
271000785
Unavailable
7
Impeller Shaft
267000054
Unavailable
8
Angled Bearing This part replaces 267000030.
267000900
Unavailable
9
O-Ring
505070315
Unavailable
10
Shaft Sleeve
267000318
Unavailable
11
O-Ring
293300090
Unavailable
12
Seal
271002071
Unavailable
13
Circlip
293370038
Unavailable
14
Spacer
271001393
Unavailable
15
Oil Seal
293200089
Unavailable
16
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
17
Impeller Assy This part replaces 267000115.
267000673
Unavailable
18
IMPELLER BOOT - Call your local BRP dealership
271001152
Unavailable
19
IMPELLER RING - Call your local BRP dealership
271001153
Unavailable
20
O-Ring
293300086
Unavailable
21
Impeller Cover
267000262
Unavailable
22
Socket Head Screw M6 X 20, Scotch Grip
205562060
Unavailable
23
Stainless Flat Washer M6
234061600
Unavailable
24
VENTURI, BLACK - Call your local BRP dealership
271001485
Unavailable
25
O-Ring
293300013
Unavailable
26
Was 293800041 Loctite Primer 7649
219704458
Unavailable
27
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
28
SOCKET HEAD SCREW M8 X 120, SCOTCHGRIP - Call your local BRP dealership
231182060
Unavailable
29
Stainless, Flat Washer 8 mm
234081600
Unavailable
30
Lock Washer 8 mm, Stainless
234181601
Unavailable
31
Steering Nozzle
271001479
Unavailable
32
Venturi Bushing
293900001
Unavailable
33
Plastic Bushing
293900010
Unavailable
34
SCREW-SPECIAL M8 - Call your local BRP dealership
211000047
Unavailable
35
Flat Washer M8.5 x 18
293050001
Unavailable
36
Sleeve
271001816
Unavailable
37
Neoprene Seal
293200087
Unavailable
