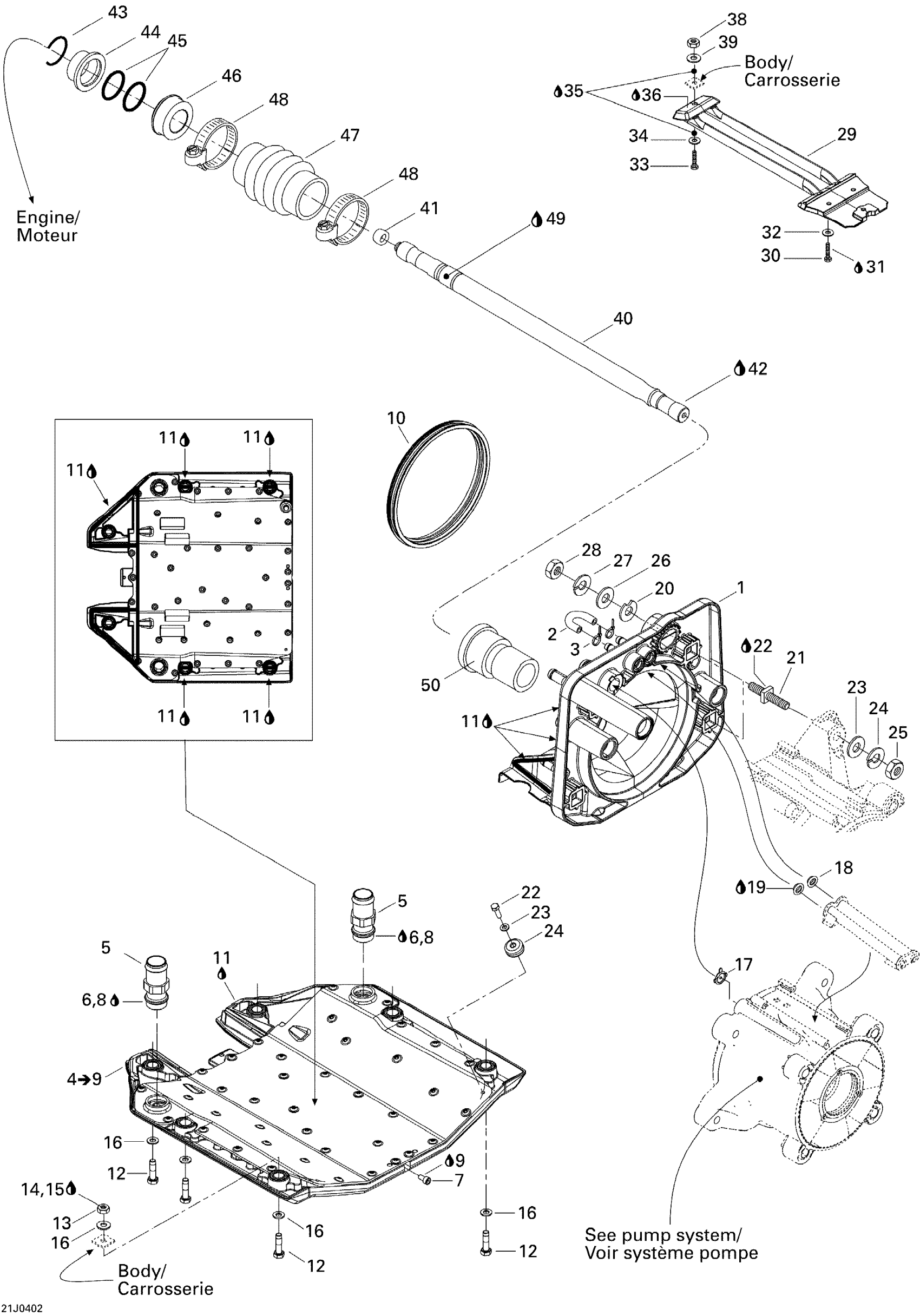

Sea-doo Sportster 4-TEC, 2004 Propulsion Diagram
#
1
PUMP SUPPORT - Call your local BRP dealership
204120247
Unavailable
2
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
3
Tie Wrap 94 mm | 4X4
293750001
Unavailable
4
Riding Plate Ass’Y | Includes Items 4 to 9
271001187
Unavailable
5
STRAIGHT PLASTIC FITTING - Call your local BRP dealership
293710087
Unavailable
6
Was 293800041 Loctite Primer 7649
219704458
Unavailable
7
Socket Drain Plug M6 X 12
250500005
Unavailable
8
Était Was 293800050 Loctite 577, 250 ml
219704459
Unavailable
9
Was 293800013 Loctite 56765
219704454
Unavailable
10
Neoprene Seal
293200087
Unavailable
11
Instant Gasket
219701421
Unavailable
12
Hex. Screw M8 X 40
207084060
Unavailable
13
Hex. Elastic Nut M8
232581600
Unavailable
14
Silicone Sealant 51388, 300 ml
296000309
Unavailable
15
Loctite 243, 10 ml
293800060
Unavailable
16
Stainless, Flat Washer 8 mm
234081600
Unavailable
17
Reducer This part replaces 291001887.
291004649
Unavailable
18
Watertight Seal
293250084
Unavailable
19
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
20
Shim 0.3 mm
272000053
Unavailable
20
NEEDS DESCRIPTION This part replaces 204120067.
0460011
Unavailable
21
Square Stud
250300022
Unavailable
22
Était/Was 293800038 Loctite 518, 50 ml
219704456
Unavailable
23
Flat Washer 10 mm, Stainless
234002600
Unavailable
24
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
25
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
26
Flat Washer 10 mm, Stainless
234002600
Unavailable
27
Helicoidal Lock Washer M10 | XT Models
234101601
Unavailable
28
HEX. NUT M10 - Call your local BRP dealership
232001600
Unavailable
29
PUMP GRATE, BLACK - Call your local BRP dealership
271001459
Unavailable
30
Hex. Screw M6 X 16
207161660
Unavailable
31
Loctite 271, 10 ml
293800005
Unavailable
32
Stainless Flat Washer M6
234061600
Unavailable
33
Hex. Screw M8 X 40
207184060
Unavailable
34
Stainless, Flat Washer 8 mm
234081600
Unavailable
35
Silicone Sealant 51388, 300 ml
296000309
Unavailable
36
Instant Gasket
219701421
Unavailable
37
Silicone Sealant 51388, 300 ml
296000309
Unavailable
38
Hex. Elastic Nut M8
232581600
Unavailable
39
Stainless, Flat Washer 8 mm
234081600
Unavailable
40
Drive Shaft
271001449
Unavailable
41
Drive Shaft Plug
272000173
Unavailable
42
Synthetic Grease, 400 G
293550010
Unavailable
43
C-Clip
271001575
Unavailable
44
Carbon Ring Kit This part replaces 272000177.
295501200
Unavailable
45
O-Ring
293300044
Unavailable
46
Carbon Ring Kit This part replaces 272000177.
295501200
Unavailable
47
Bellows
272000183
Unavailable
48
Norma Clamp
293650077
Unavailable
49
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
50
HULL INSERT, 33 MM - Call your local BRP dealership
292000075
Unavailable
