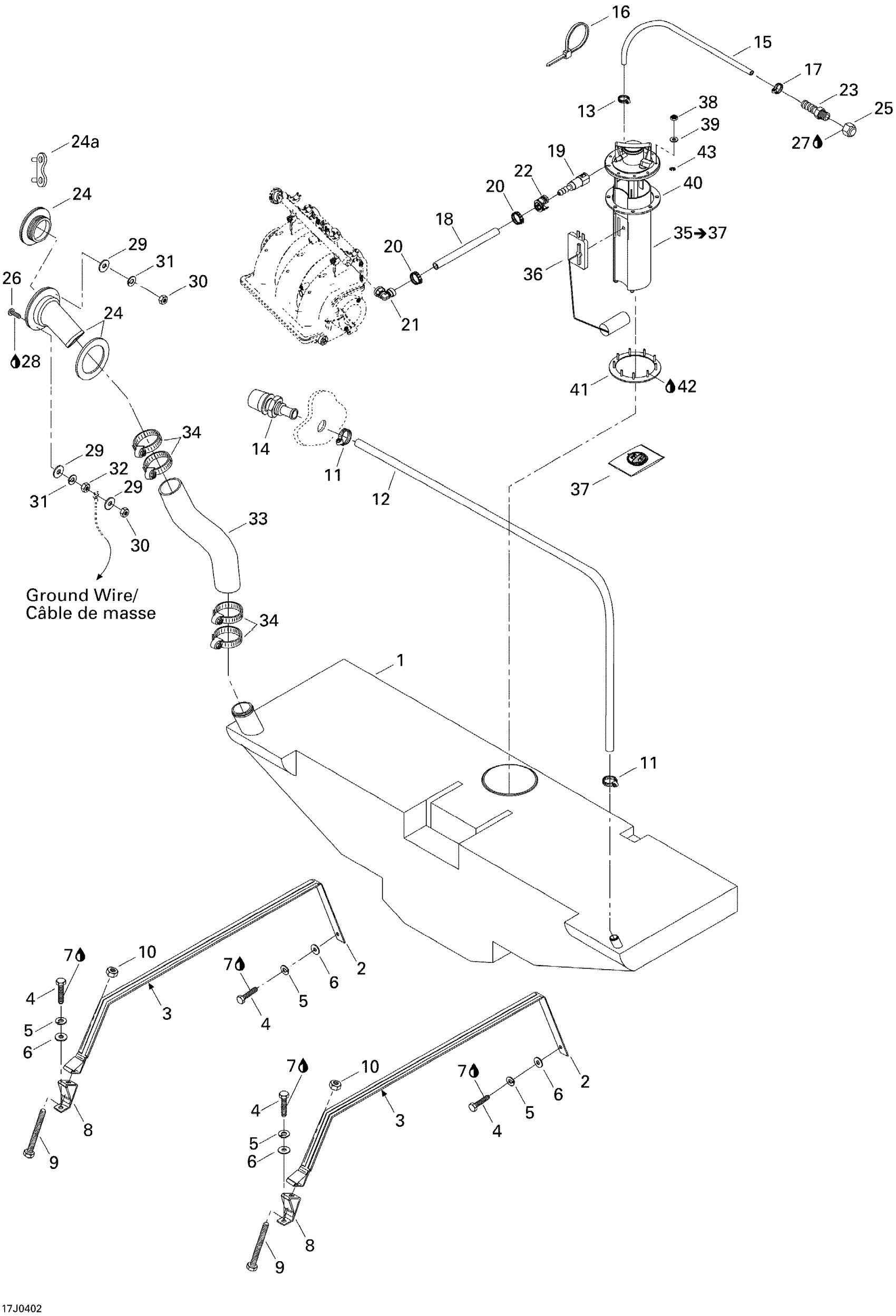

Sea-doo Sportster 4-TEC, 2004 02- Fuel System Diagram
#
1
FUEL TANK ASS'Y - Call your local BRP dealership
204560326
Unavailable
2
FUEL TANK STRAP - Call your local BRP dealership
204560181
Unavailable
3
PROTECTOR PAD - Call your local BRP dealership
204560185
Unavailable
4
Hex. Screw M8 X 30
207183060
$1.58
5
Lock Washer 8 mm, Stainless
234181601
$0.55
6
Flat Washer 8 mm, Stainless
234082600
$2.43
7
Loctite 271, 10 ml
293800005
$26.99
8
TANK BRACKET - Call your local BRP dealership
275500252
Unavailable
9
HEX. SCREW M8 X 35 - Call your local BRP dealership
207183560
Unavailable
10
Hex. Elastic Nut M8
232581600
$1.48
11
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
12
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
13
Tridon Gear Clamp
293650170
$1.99
14
VENT BOAT - Call your local BRP dealership
275500206
Unavailable
15
Was 275500549 Hose 1/4"
219704357
$194.99
16
Tie-Rap 173 mm
293750009
$1.04
17
Oetiker Gear Clamp
293650025
$3.09
18
HOSE 5/16 - Call your local BRP dealership
204560396
Unavailable
19
CONNECTOR BOX - Call your local BRP dealership
275500428
Unavailable
20
Crimp Clamp, 15.3-706R
293650047
$3.29
21
Elbow Fitting 90°
293710099
Unavailable
22
STOPPER CONNECTOR - Call your local BRP dealership
275500429
Unavailable
23
COUPLER - Call your local BRP dealership
204560265
Unavailable
24
Fuel Filler Neck Ass'y
204560253
Unavailable
24a
FUEL CAP KEY - Call your local BRP dealership
219700344
Unavailable
25
Pipe Cap
204560263
Unavailable
26
Phillips Screw M5 X 3
208553060
Unavailable
27
Was 293800013 Loctite 56765
219704454
$65.99
28
Loctite 243, 10 ml
293800060
$21.49
29
Flat Washer M5, Stainless
234051600
$0.77
30
Hex. Nut M5
232051600
$1.15
31
Helical Lock Washer M5
234151601
$1.15
32
Hex. Nut M5
232051600
$1.15
33
Fill Neck Hose
204560292
Unavailable
34
Norma Clamp
293650081
$12.18
35
FUEL PUMP MODULE ASSY - Call your local BRP dealership | Includes 20 to 20b
204560259
Unavailable
36
SENSOR LEVER - Call your local BRP dealership
270600051
Unavailable
37
Fuel Filter, Bosch
219700368
$39.99
38
Elastic Stop Nut 5 mm
232551200
$1.47
39
Flat Washer 5 mm, Stainless
234052400
$2.85
40
Gasket
293250088
$14.99
41
C-Ring, 9 Studs
275500679
$77.49
42
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
43
Circlip 5 mm
293370002
$5.50
