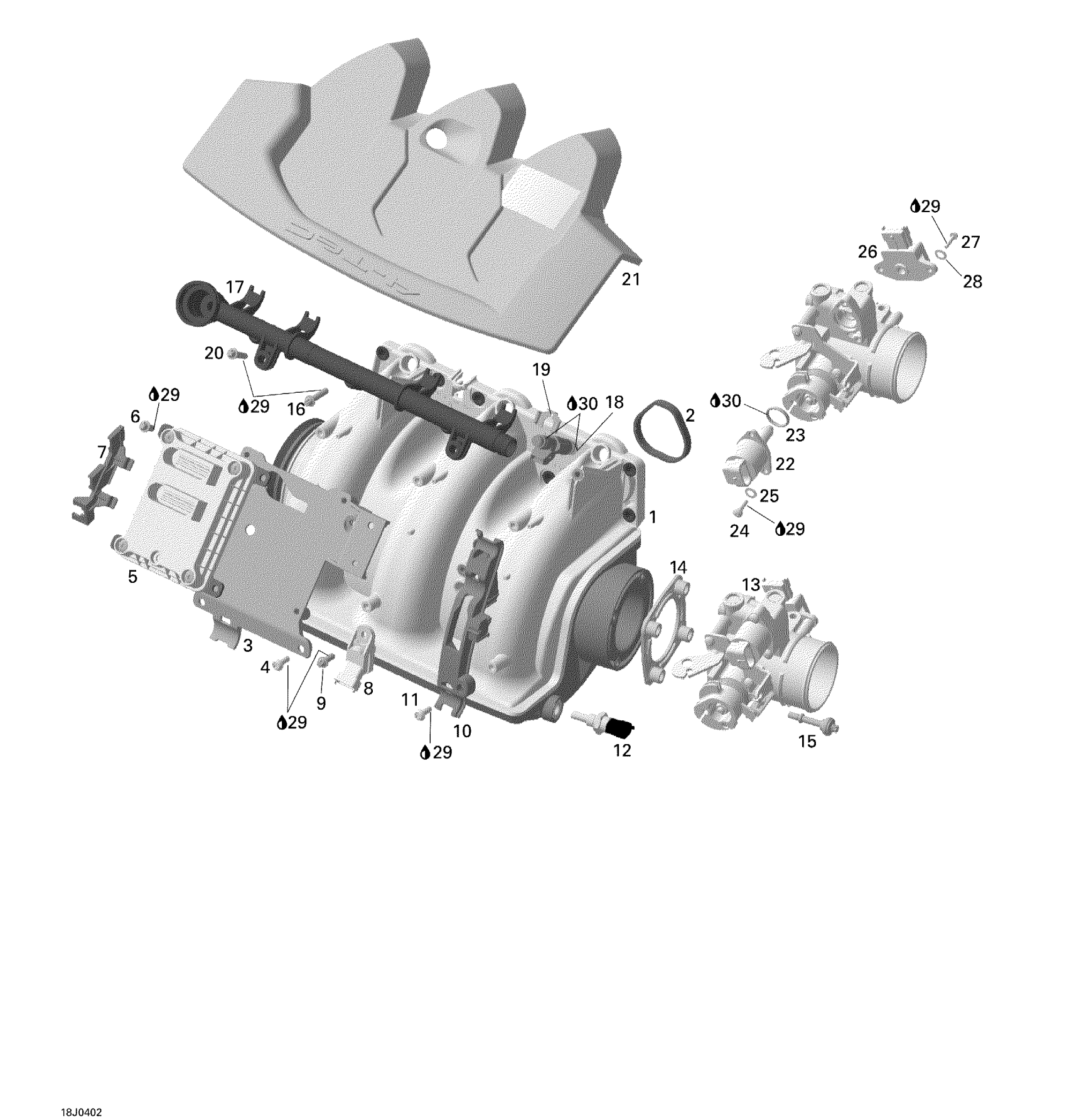

Sea-doo Sportster 4-TEC, 2004 02- Air Intake Manifold Diagram
#
Description
Price
1
Air Intake Manifold | Includes 1 to 2
420867921
$469.99
2
Gasket | Included in gasket kit
420950740
$4.44
3
Base Plate
420851520
Unavailable
4
Torx Flange Screw M6 X 16
420641048
$2.96
5
ELECTRONIC BOX - Call your local BRP dealership
420664133
$1.00
6
Torx Flange Screw M6 X 16
420641588
$2.11
7
Connector Bracket
420660400
Unavailable
8
Pressure Sensor
270600040
$199.99
9
Torx Flange Screw M6 X 16
420641048
$2.96
10
WIRING SUPPORT - Call your local BRP dealership
420660410
Unavailable
11
Torx Flange Screw M6 X 16
420641588
$2.11
12
Temperature Sensor
278002895
$39.99
13
THROTTLE BODY - Call your local BRP dealership
420889022
Unavailable
14
Rubber Gasket
420950792
$11.60
15
Allen Screw M6 x 30,5
420440561
$4.44
16
Torx Flange Screw M6 X 25
420641238
$3.27
17
FUEL RAIL ASS'Y - Call your local BRP dealership
420874391
Unavailable
18
INJECTOR - Call your local BRP dealership | Includes 19 to 20
420874430
Unavailable
19
Injector Clip
420853030
$3.09
20
Torx Flange Screw M6 X 25
420641238
$3.27
21
COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3 This part replaces 270000679.
270000677
Unavailable
22
Idle Bypass Valve
420963051
$307.49
23
O-Ring
420631780
$4.44
24
Binding Head Screw M5 X 16
420440911
$14.28
25
Snap Ring
420845710
$4.12
26
Position Sensor
420866120
$98.99
27
Phillips Screw M4 X 16
208641660
$0.90
28
Flat Washer 4 mm, Stainless
234042600
$1.15
29
Loctite 243, 10 ml
293800060
$21.49
30
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
