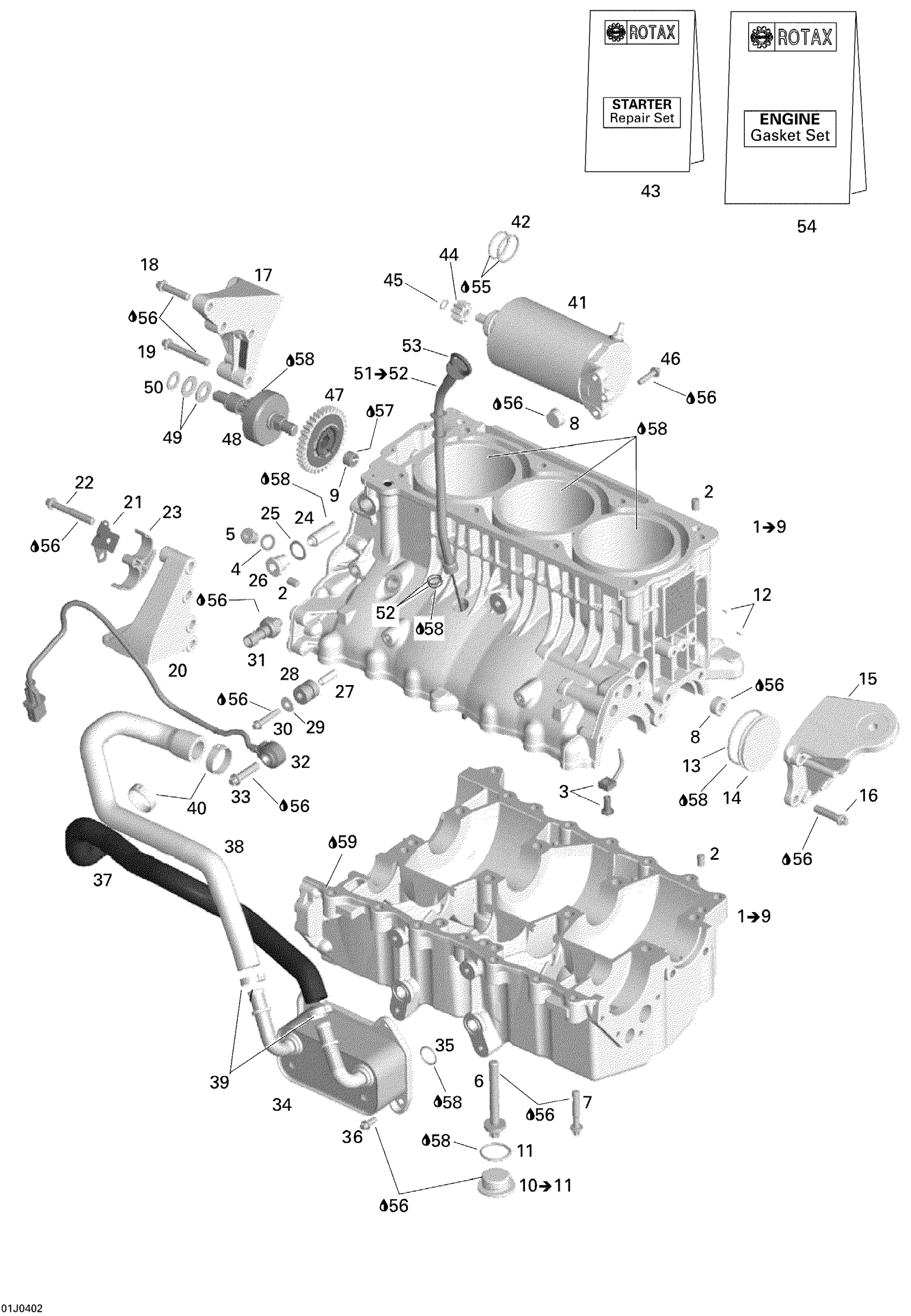

Sea-doo Sportster 4-TEC, 2004 01- Engine Block Diagram
#
1
Engine Block Ass'y 1503, Elite | Includes 1 to 9
420888814
Unavailable
2
Center Pin 8 X 12
420632010
$4.01
3
Oil Spray Nozzle This part replaces 420956778.
420956827
$27.49
4
Aluminum Sealing Ring
420250016
$5.39
5
Plug Screw M12
420841923
$15.89
6
Torx Flange Screw M10 X 82
420641120
$7.41
7
Hex. Flange Screw M8 X 45
420641208
$7.51
8
Plug Screw M20 X 1.5
420641317
$14.22
9
Needle Bushing
420232482
$20.99
10
Plug Screw M30 X 1.5
420641171
$20.99
11
O-Ring DIN 3771-28X2.6n NBR70 Cylinder Block Plug Screws
420631300
$10.33
12
Grooved Pin
420249073
$1.90
13
O-Ring
420430405
$14.28
14
Plug Cover
420660110
$7.41
15
FRONT ENGINE BRACKET - Call your local BRP dealership This part replaces 420811791.
420811792
Unavailable
16
Torx Flange Screw M8 X 35
420641188
$7.41
17
Engine Bracket PTO, Exhaust
420811788
$75.99
18
Torx Flange Screw M8 X 35
420641188
$7.41
19
Torx Flange Screw M8 X 55
420641213
$7.41
20
Engine Bracket PTO, Exhaust
420811784
$63.99
21
Retaining Plate
420851740
$20.99
22
Torx Flange Screw M8 X 55
420641213
$7.41
23
Hose Bracket
420660290
$16.37
24
Chain Tensioner
415129408
$63.49
25
Gasket Ring
420430624
$1.89
26
Chain Tensioner With Screw | Includes no. 8-11
420236259
$70.99
27
SPACER - Call your local BRP dealership
420847970
Unavailable
28
Rubber Bracket
420660090
$4.12
29
Flat Washer M6
420827968
$1.90
30
Torx Flange Screw M6 X 35
420641258
$3.38
31
Inter.Press.Hui*Oil Pressure Switch This part replaces 420856530.
420856538
$58.99
32
Noise Sensor
270000484
$82.99
33
Torx Flange Screw M8 X 35
420641188
$7.41
34
Oil Radiator
420888850
Unavailable
35
O-Ring
420250057
$4.23
36
Torx Flange Screw M6 X 16
420641048
$2.96
37
FORMED HOSE - Call your local BRP dealership
420922796
Unavailable
38
FORMED HOSE - Call your local BRP dealership
420922791
Unavailable
39
Oeticker Gear Clamp, 25.6-706R
509000442
$5.19
40
Gear Clamp
420851673
$5.71
41
Electric Starter Ass'y | Includes no. 20-21
420888995
$265.99
42
O-Ring
420631310
$4.44
43
CARBON BRUSH SET - Call your local BRP dealership
420664710
Unavailable
44
Starter Gear, 9 Teeth
420834522
$74.99
45
Retaining Ring
420845601
$4.55
46
Torx Flange Screw M6 X 25
420641238
$3.27
47
Bendix Starter This part replaces 420889872.
420890637
$264.99
48
Bendix Starter This part replaces 420889872.
420890637
$264.99
49
Spring Washer
420238300
$7.41
50
Thrust Washer
420827261
$7.51
51
OIL LEVEL TUBE - Call your local BRP dealership | Includes 51 to 52
420956943
Unavailable
52
O-Ring
420950810
$14.83
53
Oil Level Gauge
420956932
$30.49
54
Engine Gasket Set
420889772
$391.99
55
Isoflex Grease, TOPAS NB52, 50 g
293550021
$56.99
56
Loctite 243, 10 ml
293800060
$21.49
57
Dow Corning 111, 150 g
413707000
$59.99
58
OIL 4T 12X1 BLEND QUART - Call your local BRP dealership
293600121
Unavailable
59
Loctite 5910, 300 ml
293800081
$57.99
61
Engine Long Block, 1503 NA | Not Shown
415150315
Unavailable
