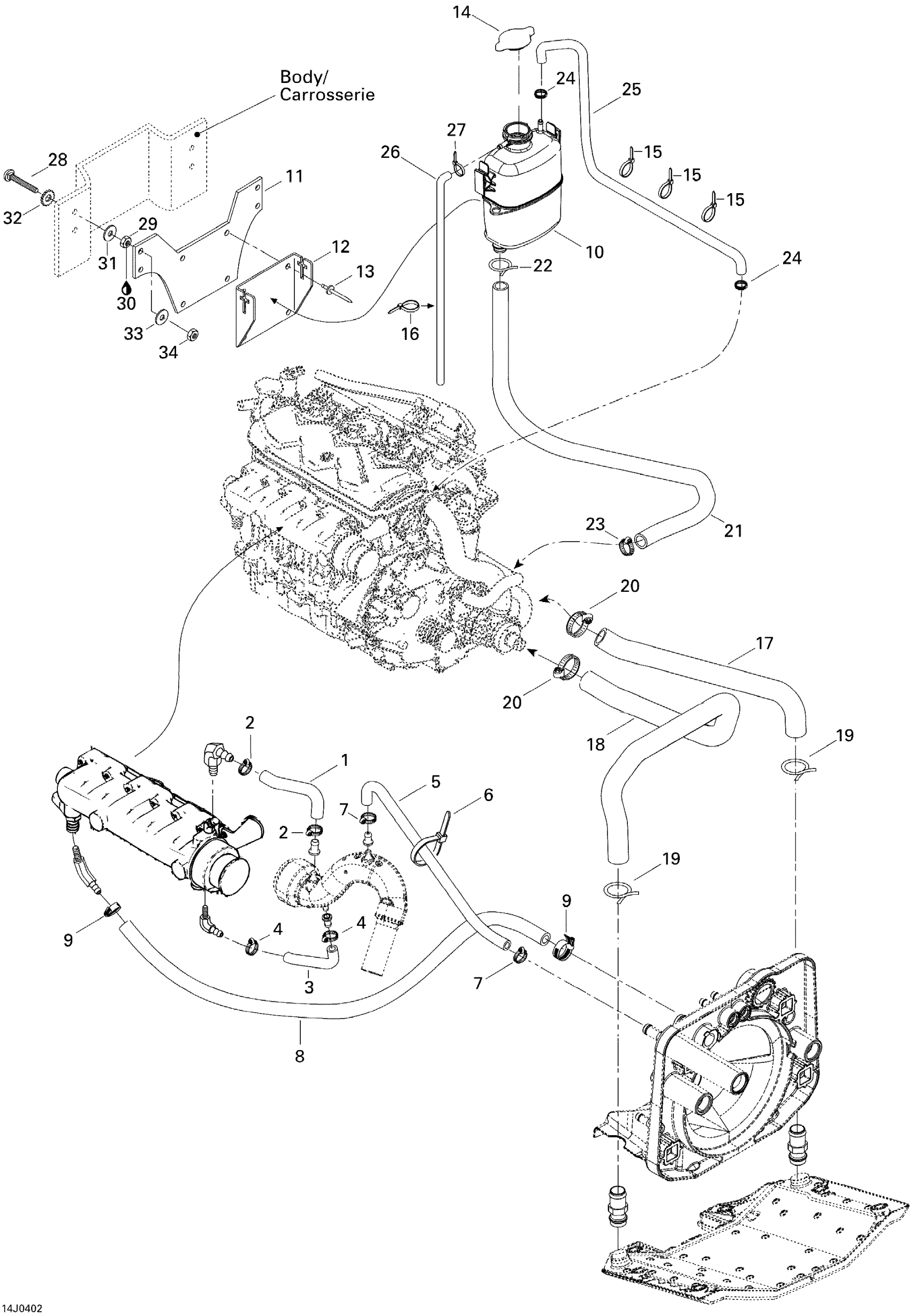

Sea-doo Sportster 4-TEC, 2004 01- Cooling System Diagram
#
Description
Price
1
UPPER FORMED HOSE - Call your local BRP dealership
276000103
Unavailable
2
Tridon Gear Clamp
293650172
$3.09
3
Lower Formed Hose
276000104
Unavailable
4
Tridon Gear Clamp
293650172
$3.09
5
Was 276000001 Hose 12.5 mm
219704394
$51.99
6
Tie Wrap 368 mm
293750008
$1.04
7
Tridon Gear Clamp
293650172
$3.09
8
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
9
Tridon Gear Clamp
293650051
$4.19
10
Coolant Tank
276000086
$109.99
11
Coolant Tank Bracket Mount
204300144
Unavailable
12
Coolant Tank Bracket
204300126
Unavailable
13
Pop Rivet 3/16"
293150039
$1.49
14
Pressure Cap | Includes 720 to 720a
276000100
$25.99
15
Tie Wrap 142 mm
293750002
$1.25
16
Tie Wrap 142 mm
293750002
$1.25
17
RH Radiator Hose
276000248
$58.99
18
LH RADIATOR HOSE - Call your local BRP dealership
276000250
Unavailable
19
DAEMAR CLAMP SPRING - Call your local BRP dealership
293650114
Unavailable
20
Tridon Gear Clamp
293650045
$5.69
21
Hose 19.0Mm. 2000Mm Long
219704361
$48.99
22
Spring Clamp
293650115
$3.09
23
Tridon Gear Clamp
293650019
$5.82
24
Oetiker Gear Clamp
293650025
$3.09
25
Was 275500549 Hose 1/4"
219704357
$194.99
26
Polyurethane Hose 10000Mm Long
219704410
$56.99
27
Tie Wrap 94 mm | 4X4
293750001
$1.03
28
Elevator Bolt
204000130
Unavailable
29
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
30
Loctite 271, 10 ml
293800005
$26.99
31
Flat Washer M6, Stainless
234062600
$0.77
32
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
33
Flat Washer M6, Stainless
234062600
$0.77
34
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
