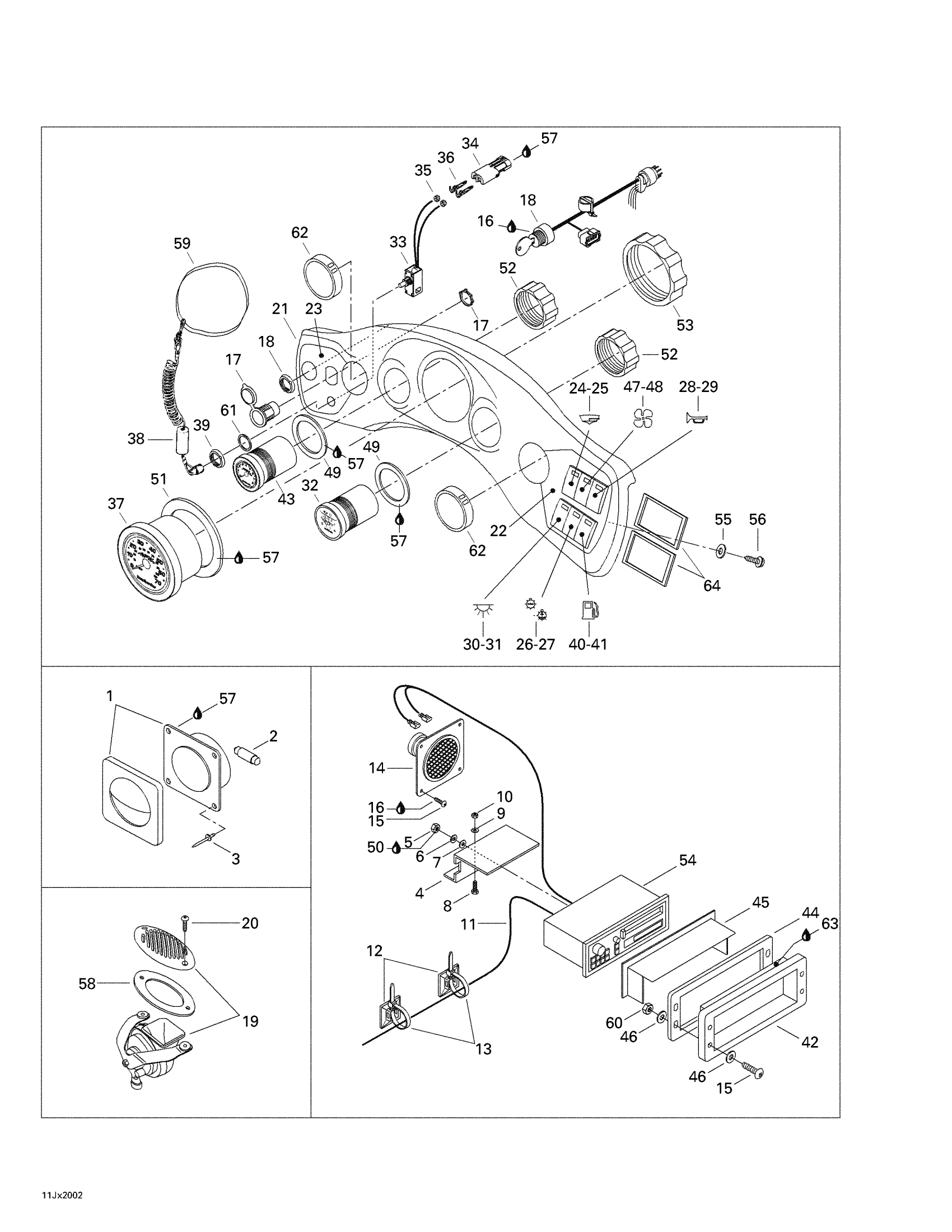

Sea-doo Sportster 1800, 5686, 2000 10- Electrical Accessories 1 Diagram

#

Description
Price

1

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

2

BULB - Call your local BRP dealership

204470081

Unavailable

3

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

4

Radio Support

204470381

Unavailable

5

Hex. Nut M5

232051600

$1.15

6

Helical Lock Washer M5

234151601

$1.15

7

Flat Washer 5 mm, Stainless

234052600

$0.77

8

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Antenna

204470380

Unavailable

12

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

13

Tie Wrap 94 mm | 4X4

293750001

$1.03

14

Speaker

204470378

Unavailable

15

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

16

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

17

DC Outlet

710001248

$37.99

18

Instrumentation Harness

204470462

Unavailable

19

HORN - Call your local BRP dealership

204470801

Unavailable

20

Screw 3/16 x 1

211000192

Unavailable

21

Facia

204470473

Unavailable

22

Fascia Decal

204900417

Unavailable

23

Ignition Decal

204900402

Unavailable

24

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

25

Gasket

204470132

Unavailable

26

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

27

Gasket

204470132

Unavailable

28

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

29

Gasket

204470132

Unavailable

30

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

31

Gasket

204470132

Unavailable

32

Oil/Fuel Gauge

204470391

Unavailable

33

Safety Switch | Includes 17 - 20.

204470463

Unavailable

34

Female Housing, 2 Circuits

278000217

$9.59

35

Wire Seal

278000218

$4.39

36

Male Terminal | XT Models

278000222

$3.19

37

Speedometer Gauge

204470374

Unavailable

38

Safety Lanyard

278001431

$47.49

39

Safety Switch Nut

278000099

Unavailable

40

Fuel Tank Reserve Switch | Includes 40 - 41.

204470103

Unavailable

41

Gasket

204470132

Unavailable

42

Radio Cover

204470266

Unavailable

43

Tachometer Gauge

204470466

Unavailable

44

RADIO COVER GASKET - Call your local BRP dealership

204470257

Unavailable

45

Radio Splashguard

204470270

Unavailable

46

Flat Washer 4 mm

234040600

$0.55

47

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

48

Gasket

204470132

Unavailable

49

Gasket

204470308

Unavailable

50

Loctite 243, 10 ml

293800060

$21.49

51

Gasket

204470309

Unavailable

52

Gauge Nut

204470146

Unavailable

53

Gauge Nut

204470171

Unavailable

54

Tape-Radio | CHALLENGER 1800 (5445).

204470377

Unavailable

55

Flat Washer 4 mm, Stainless

234042600

$1.15

56

Hex. Flange Screw K40 X 16

241141660

$1.48

57

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

58

Horn Gasket

293250108

Unavailable

59

Safety Strap

204470025

Unavailable

60

Elastic Stop Nut M4

232541600

$1.15

61

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

62

Gauge Cap

204470328

Unavailable

63

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

64

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable
