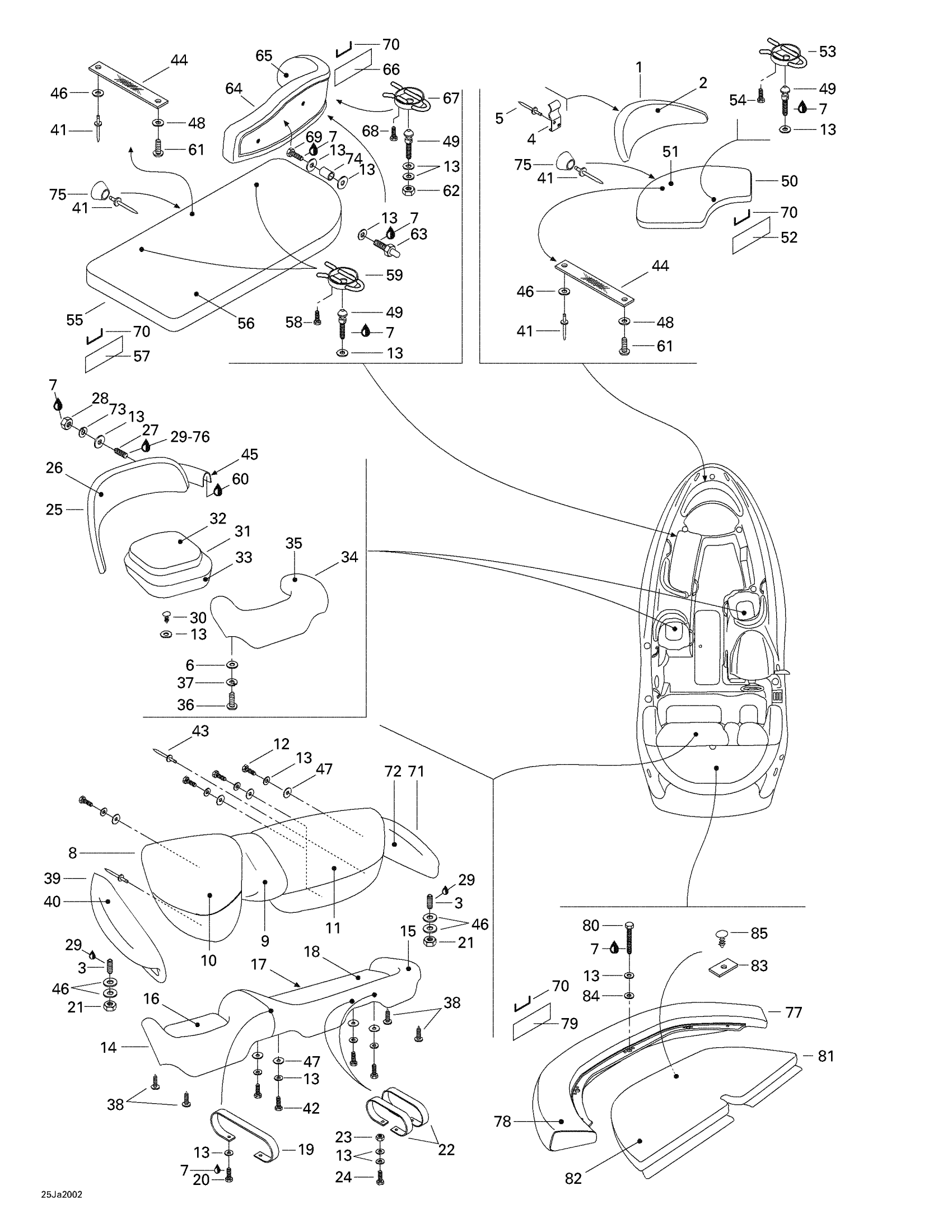

Sea-doo Sportster 1800, 5686, 2000 09- Seat Diagram
#
1
Front Backrest Ass'y | Includes 1 - 2.
204610442
Unavailable
2
Front Backrest Cover (Turquoise Panama)
204610443
Unavailable
3
Socket Set Screw M5 x 40
206254060
Unavailable
4
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
5
Pop Rivet 3/16"
293150043
$2.09
6
Stainless Flat Washer M6
234061600
$0.33
7
Loctite 243, 10 ml
293800060
$21.49
8
Rear Backrest Ass'y | Includes 8 - 11.
204610648
Unavailable
9
Rear Bump Cover (Turquoise Panama)
204610447
Unavailable
10
Rear Backrest Cover (1 pass.) (White/Emb
204610649
Unavailable
11
Rear Backrest Cover (White/Serigraphy)
204610650
Unavailable
12
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
13
Flat Washer M6, Stainless
234062600
$0.77
14
Rear Seat Ass'y | Includes 14 - 24.
204610651
Unavailable
15
Rear Seat Cover (Turquoise Panama)
204610450
Unavailable
16
Rear Seat Pillow Cover
204610653
Unavailable
17
LH Rear Seat Pillow Ass'y | Includes 17 - 18.
204610654
Unavailable
18
LH Rear Seat Pillow Cover
204610655
Unavailable
19
Rear Seat Strap (Turquoise Panama)
204610521
Unavailable
20
Hex. Screw M6 X 16
207161660
$1.59
21
Hex. Elastic Nut M5 | X
232551600
$1.15
22
Rear Seat Strap (Turquoise Panama)
204610522
Unavailable
23
Hex. Elastic Stop Nut M6
232561600
$1.15
24
Hex. Screw M6 X 25
207162560
$1.47
25
Keeper Seat Backrest Ass'y | Includes 25 - 26.
204610451
Unavailable
26
Keeper Seat Backrest Cover
204610452
Unavailable
27
Set Screw M5 x 30
206253060
Unavailable
28
Hex. Nut M5
232051600
$1.15
29
Loctite 271, 10 ml
293800005
$26.99
30
Black Dart
293730014
$0.99
31
Keeper Seat Pillow Ass'y | Includes 31 - 33.
204610656
Unavailable
32
Keeper Seat Cover (Small)
204610657
Unavailable
33
Keeper Seat Cover (Large)
204610165
Unavailable
34
Keeper Seat Ring Ass'y | Includes 34 - 35.
204610453
Unavailable
35
Keeper Seat Ring Cover
204610454
Unavailable
36
Tapping Screw M6.3 X 32
209663260
Unavailable
37
Lock Washer Helical M6
234161601
$1.15
38
Dart
293730021
$7.79
39
RH Rear Seat Arm-Rest Ass'y | Includes 39 - 40.
204610722
Unavailable
40
RH Rear Seat Arm-Rest Cover
204610919
Unavailable
41
Pop Rivet 3/16"
293150013
$1.37
42
Hex. Screw M6 x 45, Scotch Grip
207364560
$1.89
43
RIVET - Call your local BRP dealership
293150065
Unavailable
44
Passenger Strap
293000060
Unavailable
45
BLACK TRIM, METER - Call your local BRP dealership
204070055
Unavailable
46
Flat Washer 5 mm, Stainless
234052600
$0.77
47
Flat Washer 8 mm, Stainless
234082600
$2.43
48
Flat Washer 4 mm, Stainless
234042600
$1.15
49
Seat Stud
204610207
Unavailable
50
Front Seat Ass'y | Includes 50 - 54.
204610644
Unavailable
51
Center Front Seat Cover (White)
204610645
Unavailable
52
Staple Cover, Meter
204610184
Unavailable
53
Front Seat Latch
204610178
Unavailable
54
Socket Head Screw M4 X 16
205441660
$1.47
55
LH Front Seat Ass'y | Includes 55 - 59.
204610646
Unavailable
56
LH Front Seat Cover (White)
204610647
Unavailable
57
Staple Cover, Meter
204610184
Unavailable
58
Socket Head Screw M4 X 16
205441660
$1.47
59
Front Seat Latch
204610178
Unavailable
60
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
61
Screw K40 X 10
241140060
$1.48
62
Hex. Elastic Stop Nut M6
232561600
$1.15
63
Backrest Pin
204610257
Unavailable
64
LH Front Backrest Ass'y | Includes 64 - 68.
204610444
Unavailable
65
LH Front Backrest Cover
204610445
Unavailable
66
Staple Cover, Meter
204610184
Unavailable
67
Front Seat Latch
204610178
Unavailable
68
Socket Head Screw M4 X 16
205441660
$1.47
69
PHILLIPS SCREW M6 X 30 - Call your local BRP dealership
208663060
Unavailable
70
Staple
293730005
Unavailable
71
LH Rear Seat Arm-Rest Ass'y | Includes 71 - 72.
204610723
Unavailable
72
LH Rear Seat Arm-Rest Cover
204610921
Unavailable
73
Helical Lock Washer M5
234151601
$1.15
74
SPACER 6.7 MM - Call your local BRP dealership
277000584
Unavailable
75
Rubber Stopper
293830043
Unavailable
76
Was 293800041 Loctite Primer 7649
219704458
$39.99
77
Rear Spoiler Ass'y | Includes 77 - 79.
204610720
Unavailable
78
Spoiler Cover (Turquoise Panama)
204610721
Unavailable
79
Staple Cover, Meter
204610184
Unavailable
80
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
81
Platform Ass'y | Includes 81 - 83.
204610724
Unavailable
82
Platform Cover (White)
204610725
Unavailable
83
Strap
204610194
Unavailable
84
Flat Washer 10 mm, Stainless
234002600
$2.22
85
Black, Dart
293730006
$0.99
