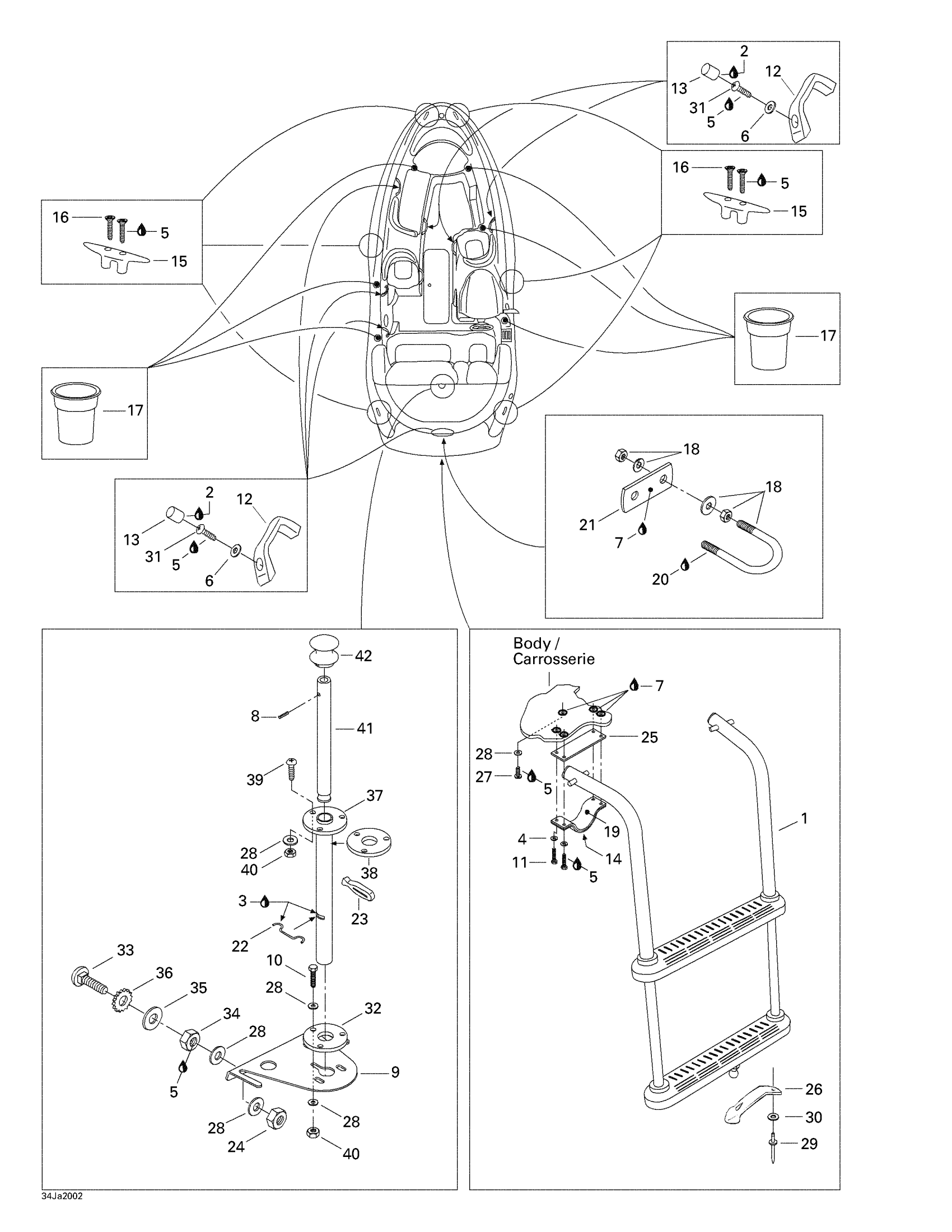

Sea-doo Sportster 1800, 5686, 2000 09- Body And Accessories 3 Diagram

#

Description
Price

1

LADDER - Call your local BRP dealership

204060186

Unavailable

2

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

3

Synthetic Grease, 400 G

293550010

Unavailable

4

Lock Washer Helical M6

234161601

$1.15

5

Loctite 243, 10 ml

293800060

$21.49

6

Stainless Flat Washer M6

234061600

$0.33

7

Silicone Sealant 51388, 300 ml

296000309

$36.99

8

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

9

Fixation Plate

291001059

Unavailable

10

Hex. Forming Screw M6 X 20

207162060

$1.29

11

Hex. Screw M6 X 35

207163560

$1.49

12

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

13

GRIP HANDLE, BLACK - Call your local BRP dealership

204073190

Unavailable

14

LADDER CLIP - Call your local BRP dealership

204060055

Unavailable

15

CLEAT - Call your local BRP dealership

204070100

Unavailable

16

Socket Head Screw M6 x 55

205365560

Unavailable

17

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

18

U-Bolt

204070418

Unavailable

19

PROTECTOR 158 - Call your local BRP dealership

204060056

Unavailable

20

Loctite 271, 10 ml

293800005

$26.99

21

Finition Plate

204070219

Unavailable

22

SPRING - Call your local BRP dealership

291001205

Unavailable

23

Windshield Latch

570023800

$4.49

24

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

25

PROTECTOR 97 - Call your local BRP dealership

204060057

Unavailable

26

Hood Latch

570027100

$13.49

27

SCREW M4 X 30 - Call your local BRP dealership

208443070

Unavailable

28

Flat Washer M6, Stainless

234062600

$0.77

29

Pop Rivet 3/16"

293150013

$1.37

30

Flat Washer 5 mm, Stainless

234052600

$0.77

31

SOCKET SCREW M6 X 25 - Call your local BRP dealership

205462560

Unavailable

32

RETAINER WASHER - Call your local BRP dealership

291001060

Unavailable

33

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

34

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

35

Stainless, Flat Washer 8 mm

234081600

$0.55

36

TOOTHED LOCK WASHER - Call your local BRP dealership

234381608

Unavailable

37

FIXED TUBE - Call your local BRP dealership

291001057

Unavailable

38

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

39

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

40

Hex. Elastic Stop Nut M6

232561600

$1.15

41

SKI SHAFT - Call your local BRP dealership

204072616

Unavailable

42

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable
