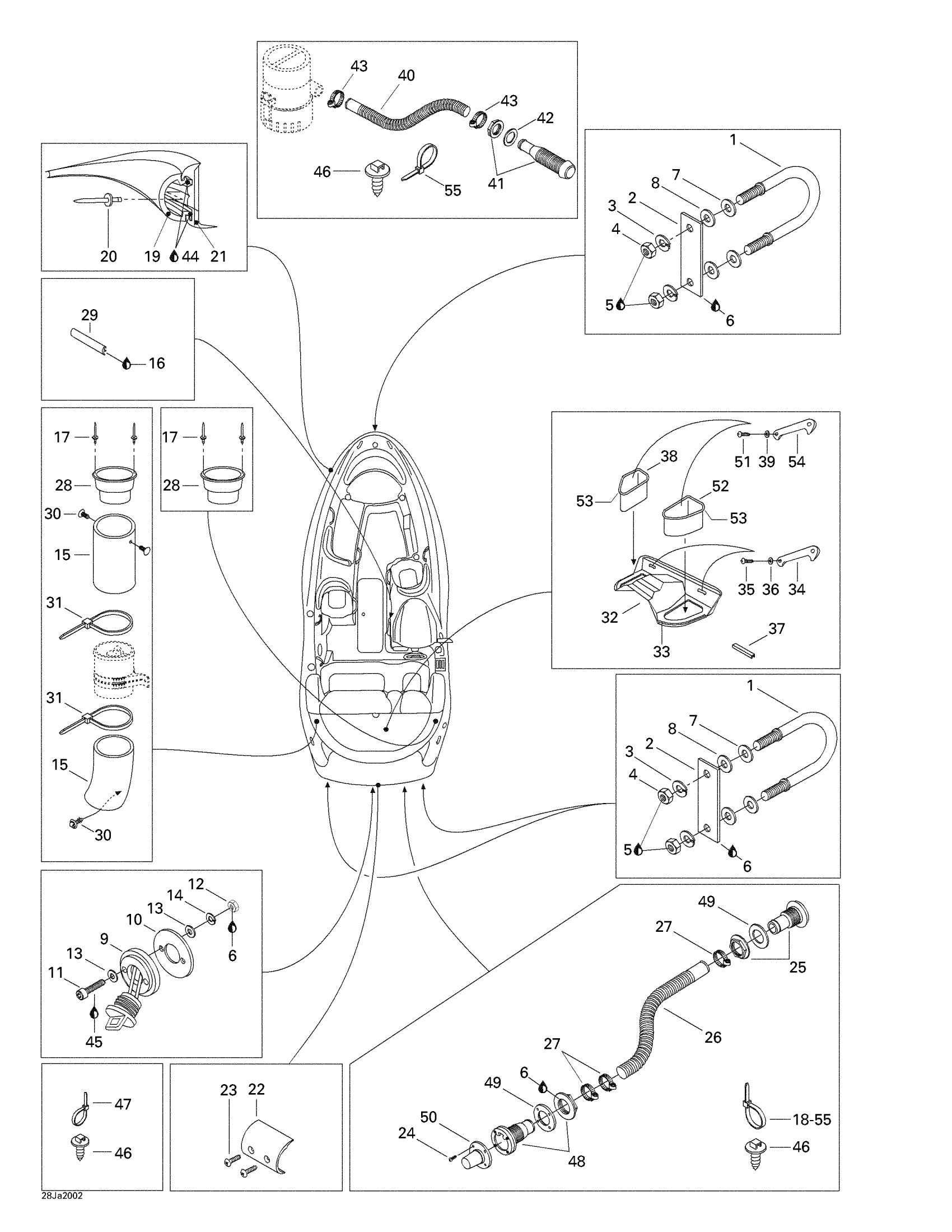

Sea-doo Sportster 1800, 5686, 2000 Body And Accessories 2 Diagram

#

Description
Price

1

U-CLAMP - Call your local BRP dealership

292000063

Unavailable

2

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

3

Lock Washer 8 mm, Stainless

234181601

$0.46

4

Hex. Nut M8

232081600

$1.22

5

Loctite 271, 10 ml

293800005

$20.77

6

Silicone Sealant 51388, 300 ml

296000309

$35.72

7

Flat Washer M8.5 x 18

293050001

$1.29

8

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

9

Drain Plug

292000187

$10.21

10

GASKET - Call your local BRP dealership

293250030

Unavailable

11

Socket Screw M4 X 30

205043060

Unavailable

12

NUT-HEXAGONAL DIN.934A2 - Call your local BRP dealership

232041600

Unavailable

13

Flat Washer 4 mm

234040600

$0.46

14

Lock Washer 4 mm

234141601

$1.09

15

Was 204050122 Vent Hose 4"

219704358

$27.66

16

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable

17

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

18

Tie Wrap 368 mm

293750008

$0.85

19

Black, Trim - Call your local BRP dealership

204050137

Unavailable

20

Pop Rivet 3/16"

293150013

$1.11

21

Black, Bumper

204050136

Unavailable

22

BUMPER COVER, BLACK - Call your local BRP dealership

204050031

Unavailable

23

Phillips Tapping Screw M4.2 X 32

209943260

$1.45

24

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

25

FITTING - Call your local BRP dealership

293710060

Unavailable

26

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

27

Norma Clamp

293650074

$16.89

28

Vent Adaptor

204050160

Unavailable

29

TRIM, WHITE - Call your local BRP dealership

204050048

Unavailable

30

Black, Dart

293730006

$0.81

31

Tie Rap

293750019

$3.68

32

Accessories Cover Ass'y | Includes 32 - 37.

204050276

Unavailable

33

Seal Tray 1000Mm Long

219704368

$12.91

34

Black, Handle - Call your local BRP dealership

204050159

Unavailable

35

Hex. Flange Screw K40 X 16

241141660

$1.25

36

Flat Washer 4 mm, Stainless

234042600

$0.92

37

Trim, Meter

204050213

Unavailable

38

LH Storage Basket

204050208

Unavailable

39

Flat Washer 4 mm, Stainless

234042600

$0.92

40

BILGEFLEX HOSE 3/4, BLACK, METER - Call your local BRP dealership

291001206

Unavailable

41

Fitting

293710162

$12.91

42

GASKET - Call your local BRP dealership This part replaces 293250251.

293250006

Unavailable

43

Tridon Clamp

293650016

$8.57

44

Silicone Sealant 51388, 300 ml

296000309

$35.72

45

Loctite 243, 10 ml

293800060

$20.77

46

Mount Dart

293730040

$0.86

47

Tie Wrap 142 mm

293750002

$0.88

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 180 mm

414115200

$0.09

48

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

49

GASKET - Call your local BRP dealership

292800106

Unavailable

50

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

51

Hex. Flange Screw K40 X 16

241141660

$1.25

52

RH Storage Basket

204050206

Unavailable

53

GASKET PAC = 1.0m - Call your local BRP dealership

293250008

Unavailable

54

Black, Handle - Call your local BRP dealership

204050159

Unavailable

55

Tie-Rap 180 mm

414115200

$0.09
