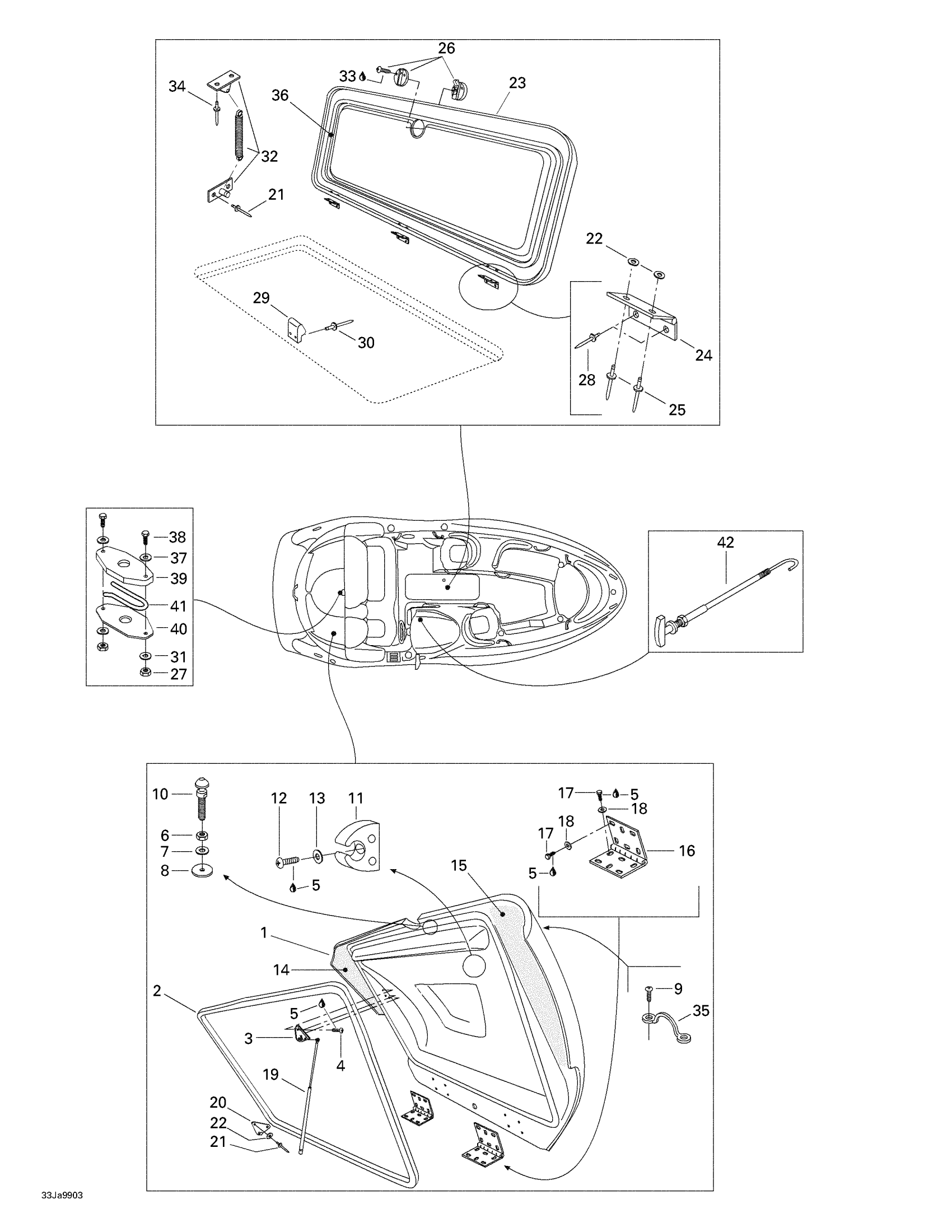

Sea-doo Sportster 1800, 5676/5680, 1999 Body And Accessories 1 Diagram

#

Description
Price

1

Engine Cover (5676)

204070311

Unavailable

Engine Cover (5680)

295500607

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

4

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

Hex. Jam Nut M10

232100600

$2.22

7

Flat Washer 10 mm, Stainless

234002600

$2.22

8

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

9

Phillips Screw M4 X 30

208443060

$1.48

10

Latch Stud

204700001

Unavailable

11

Pole Support

291000642

Unavailable

12

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

13

Flat Washer 4 mm

234040600

$0.55

14

RH Engine Cover Foam

204070250

Unavailable

15

LH Engine Cover Foam

204070251

Unavailable

16

HINGE ASS'Y - Call your local BRP dealership | Includes 19 to 21

204070127

Unavailable

17

Hex. Screw M6 X 25

207162560

$1.47

18

Stainless Flat Washer M6

234061600

$0.33

19

RH Retainer Cylinder

204070178

Unavailable

20

LATCH COVER CABLE - Call your local BRP dealership

204070081

Unavailable

21

Pop Rivet 3/16"

293150043

$2.09

22

Flat Washer M5, Stainless

234051600

$0.77

23

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

24

HINGE - Call your local BRP dealership

204072601

Unavailable

25

SPRING - Call your local BRP dealership

204070038

Unavailable

26

VERROU, WHITE - Call your local BRP dealership

204070063

Unavailable

27

Hex. Elastic Stop Nut M6

232561600

$1.15

28

Avdel Rivet 3/16"

293150037

$0.56

29

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

30

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

31

Flat Washer M6, Stainless

234062600

$0.77

32

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

33

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

34

RIVET_POP 3/16 - Call your local BRP dealership

293150055

Unavailable

35

Strap Tie

204070234

Unavailable

36

TRAY SEAL, METER - Call your local BRP dealership

293200032

Unavailable

37

Stainless Flat Washer M6

234061600

$0.33

38

Hex. Screw M6 X 35

207163560

$1.49

39

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

40

LATCH COVER - Call your local BRP dealership

204070036

Unavailable
