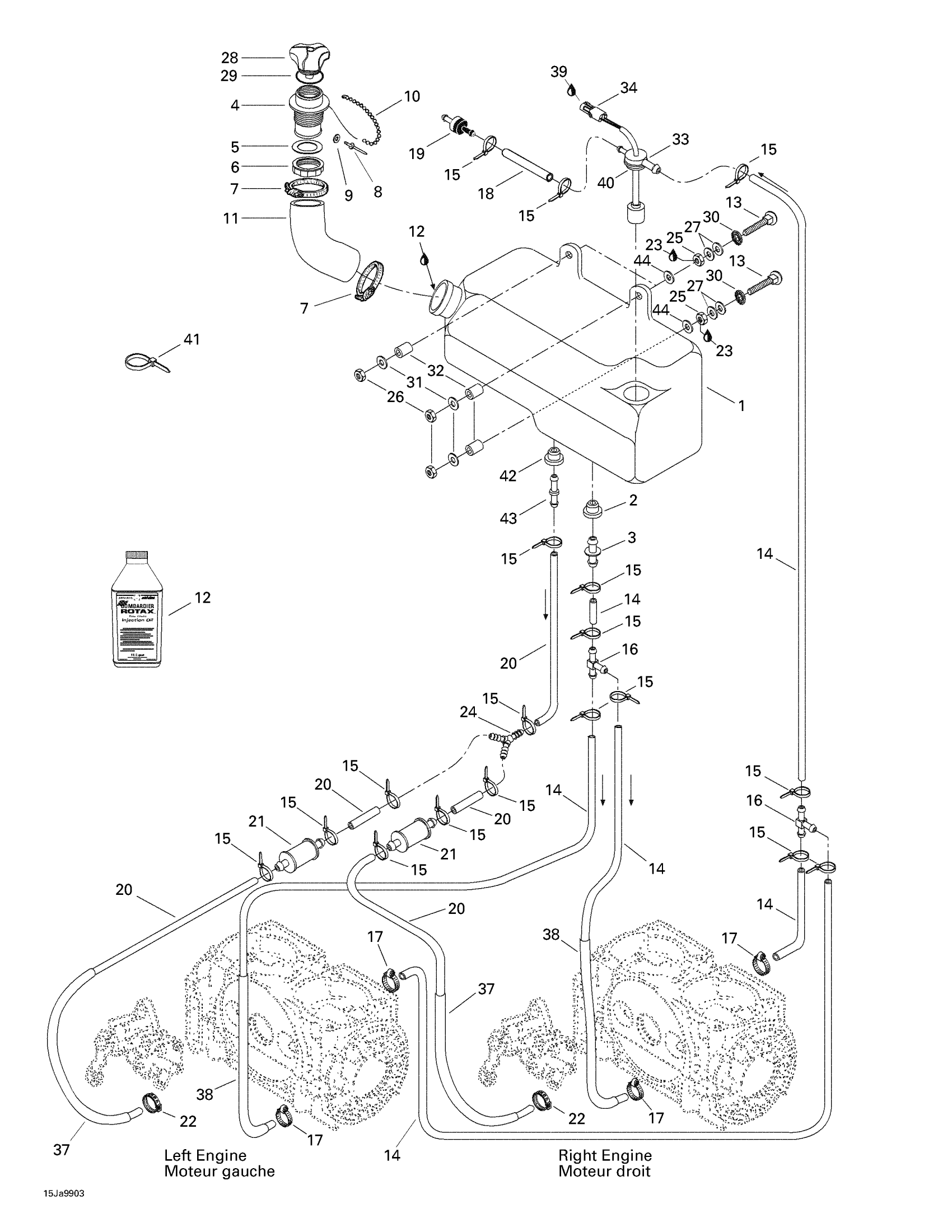

Sea-doo Sportster 1800, 5676/5680, 1999 Oil Injection System Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

204550029

Unavailable

2

Grommet | Europe

707800347

$8.70

3

STRAIGHT FITTING - Call your local BRP dealership

293710045

Unavailable

4

Filler Neck

275000212

Unavailable

5

Gasket

293250016

Unavailable

6

Nut-Neck Oil Filler

211100013

Unavailable

7

Tridon Clamp

293650035

$6.66

8

Pop Rivet 1/8"

293150056

Unavailable

9

Flat Washer M3, Stainless

234032600

$0.52

10

Oil Cap Chain

275500015

Unavailable

11

Filler Neck Hose

275000070

Unavailable

12

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership

413710500

Unavailable

OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.

293600133

Unavailable

OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.

779130

Unavailable

13

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

14

Was 275500008 Hose 12 mm

219704356

$6.82

15

Tie Wrap 94 mm | 4X4

293750001

$0.96

16

T-FITTING - Call your local BRP dealership

293710053

Unavailable

17

Tridon Gear Clamp

293650170

$2.00

18

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

19

Check Valve

275500398

$9.84

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

$2.82

23

Loctite 271, 10 ml

293800005

$23.85

24

Y-Fitting

204550001

Unavailable

25

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

26

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

27

Stainless, Flat Washer 8 mm

234081600

$0.52

28

Oil Cap

275000186

Unavailable

29

O-RING - Call your local BRP dealership

293250025

Unavailable

30

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

31

Flat Washer M6, Stainless

234062600

$0.73

32

SPACER SLEEVE - Call your local BRP dealership

204550033

Unavailable

33

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

34

Female Housing, 2 Circuits

278000217

$8.72

35

Male Terminal | XT Models

278000222

$2.93

36

Wire Seal

278000218

$4.00

37

SLIT CONDUIT, METER - Call your local BRP dealership

204550015

Unavailable

38

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

40

Grommet

204470104

Unavailable

41

Tie Wrap 142 mm

293750002

$1.01

42

Grommet

709200285

$8.13

43

STRAIGHT FITTING - Call your local BRP dealership

293710046

Unavailable

44

Flat Washer M6, Stainless

234062600

$0.73
