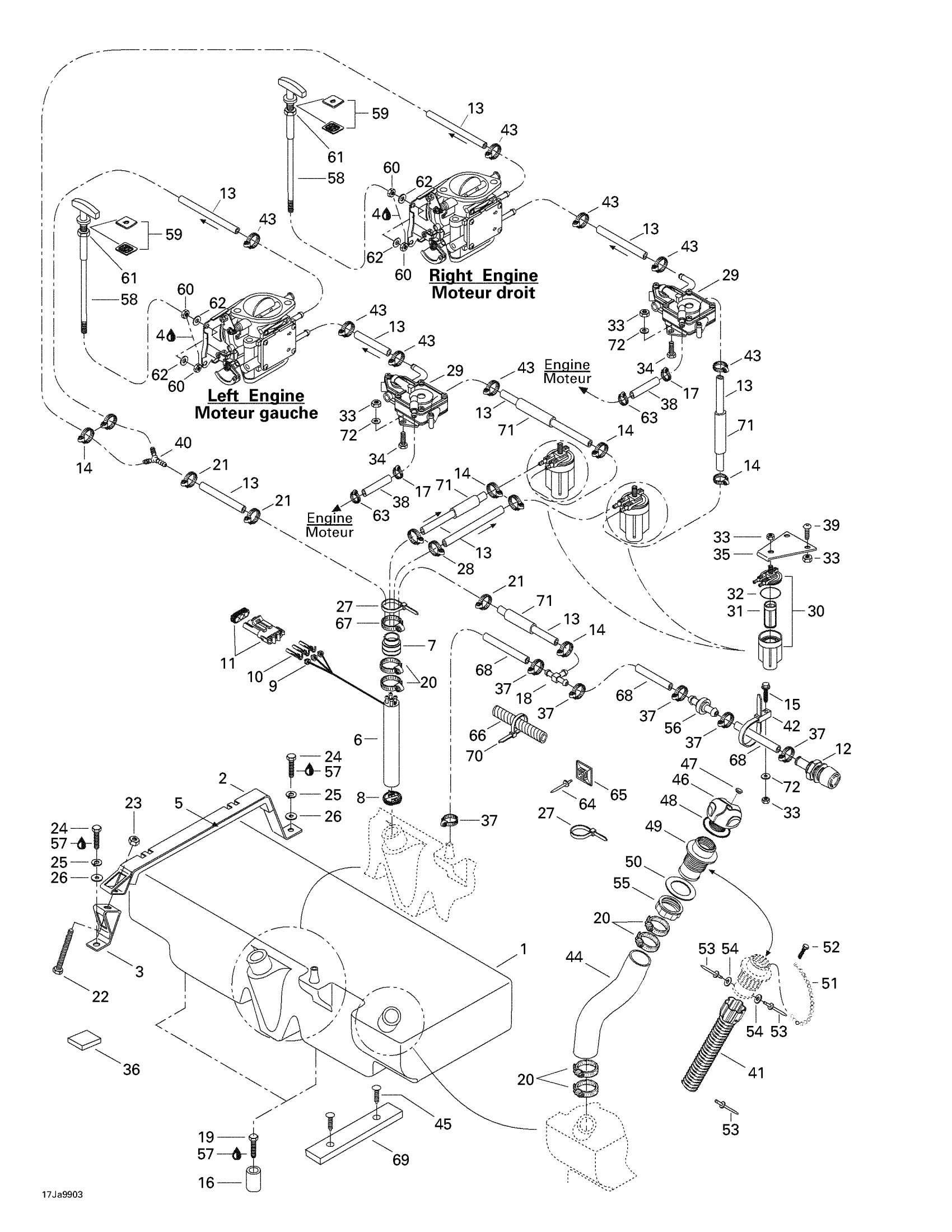

Sea-doo Sportster 1800, 5676/5680, 1999 Fuel System Diagram

#

Description
Price

1

Fuel Tank, Plastic

204560073

Unavailable

2

Fuel Tank Strap

204560011

Unavailable

3

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Protector Pad

204560037

Unavailable

6

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

7

Fuel Tube Adaptor

204560066

Unavailable

8

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

9

Wire Seal

278000218

$4.00

10

Female Terminal

278000223

$2.93

11

Male Housing, 3 Circuits

278000273

$8.72

12

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

13

Hose 6 mm (Meter)

204560099

Unavailable

14

Norma Clamp

293650088

Unavailable

15

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

16

Rubber Bumper

204560039

Unavailable

17

Oetiker Clamp

293650042

$2.82

18

T-Fitting

204560038

Unavailable

19

Phillips Screw M5 X 35

208653560

$2.12

20

Norma Clamp

293650081

$11.33

21

Clic Clamp

293650059

Unavailable

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

23

Hex. Elastic Nut M8

232581600

$1.43

24

Hex. Screw M8 X 30

207183060

$1.49

25

Lock Washer 8 mm, Stainless

234181601

$0.52

26

Flat Washer 8 mm, Stainless

234082600

$2.27

27

Tie-Rap 180 mm

414115200

$0.10

28

NORMA CLAMP - Call your local BRP dealership

293650087

Unavailable

29

Fuel Pump

270500390

Unavailable

30

Fuel Filter Ass'y | Includes 15 - 17.

275500088

Unavailable

31

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

32

O-Ring

275500090

$7.85

33

Hex. Elastic Stop Nut M6

232561600

$1.06

34

Hex. Forming Screw M6 X 20

207162060

$1.18

35

Fuel Filter Support

204560007

Unavailable

36

Protecteur Pad

204560027

Unavailable

37

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

38

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

39

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

40

Y-Fitting

293710059

$9.40

41

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

42

Tie-Rap

293750017

Unavailable

43

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

44

Filler Neck Hose

204560033

Unavailable

45

Black, Dart

293730006

$0.93

46

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$26.09

47

Black, Snap Cap

293000034

$8.58

48

Gasket

293250017

Unavailable

49

Filler Neck

275500247

Unavailable

50

Gasket

293250029

$13.85

51

Oil Cap Chain

275500015

Unavailable

52

Screw K40 X 10

241140060

$1.43

53

Rivet 1/8”

293150057

Unavailable

54

Flat Washer M3, Stainless

234032600

$0.52

55

Filler Neck Nut, Fuel

211100012

$11.51

56

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

57

Loctite 271, 10 ml

293800005

$23.85

58

Choke Cable Ass'y L.H | Includes 58 - 62.

204250030

Unavailable

Choke Cable Ass'y R.H

204250070

Unavailable

59

Choke Plate

291000457

Unavailable

60

Hex. Nut M6

232160600

$1.04

61

Hex. Nut

211100007

Unavailable

62

Stainless Flat Washer M6

234061600

$0.28

63

Tridon Gear Clamp

293650170

$2.00

64

Pop Rivet 3/16"

293150008

$0.46

65

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

66

Hose 5/16"

204560070

Unavailable

67

Norma Clamp

293650077

$7.01

68

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

69

Rubber Pad

293830021

Unavailable

70

Tie-Rap 180 mm

414115200

$0.10

71

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

72

Stainless Flat Washer M6

234061600

$0.28

73

Tridon Gear Clamp

293650172

$3.07

74

Not Available As Spare Part - Friction Washer

Unavailable
