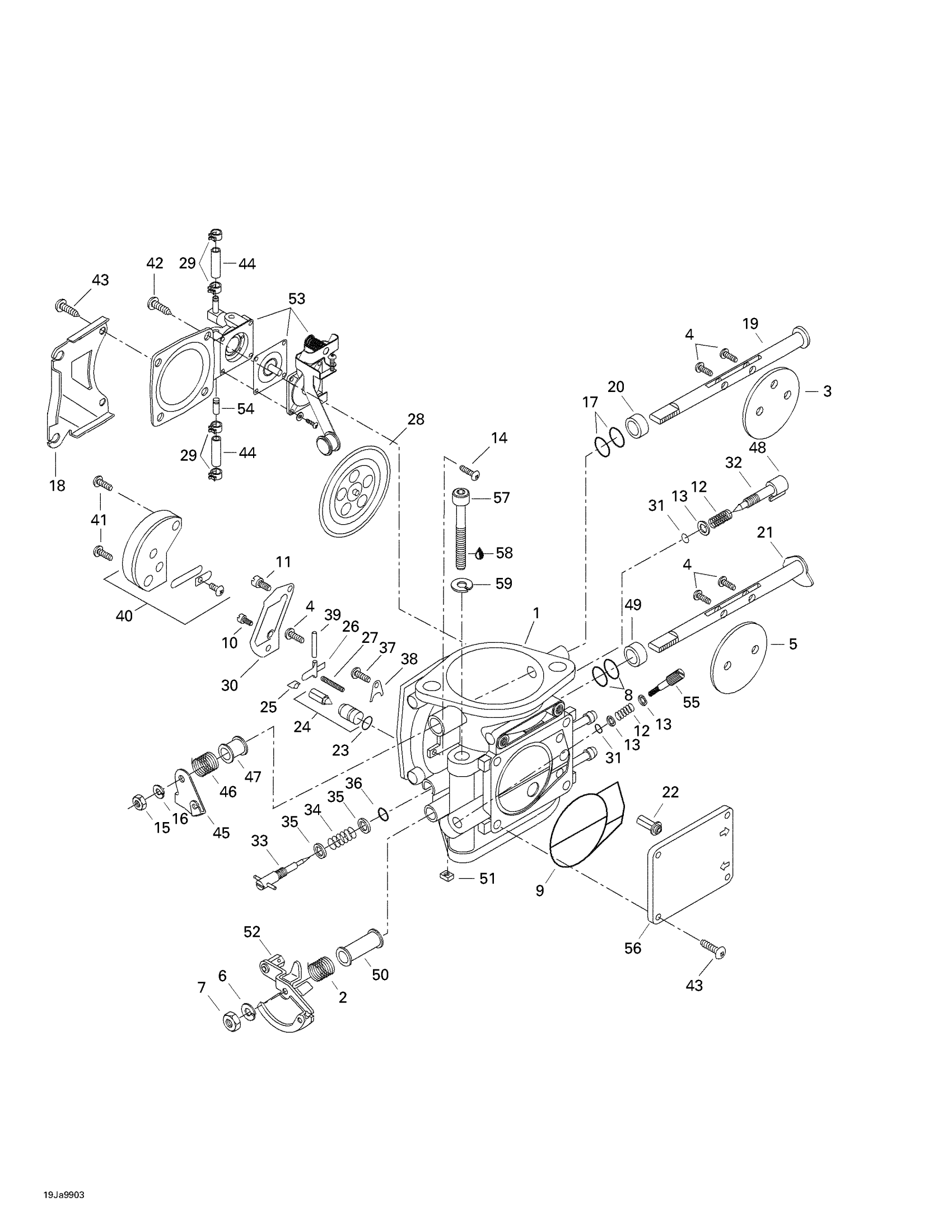

Sea-doo Sportster 1800, 5676/5680, 1999 Carburetor Diagram
#
1
Carburetor BN40-38-51 | Includes 1 - 56.
204250064
Unavailable
2
Spring
270500191
Unavailable
3
Not Available As Spare Part - Friction Washer
Unavailable
4
SCREW - Call your local BRP dealership
270500156
Unavailable
5
Not Available As Spare Part - Friction Washer
Unavailable
6
SPRING WASHER - Call your local BRP dealership
270500011
Unavailable
7
Nut
270500376
Unavailable
8
Sealing Ring
270500222
Unavailable
9
O-Ring
270500104
Unavailable
10
Pilot Jet 70
270500175
Unavailable
11
Main Jet 167.5
270500392
Unavailable
12
SPRING - Call your local BRP dealership
270500091
Unavailable
13
Washer
270500136
Unavailable
14
Screw
270500228
Unavailable
15
NUT - Call your local BRP dealership
270500229
Unavailable
16
Spring Washer
270500230
Unavailable
17
SEALING RING - Call your local BRP dealership
270500234
Unavailable
18
Support
270500315
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
RING - Call your local BRP dealership
270500239
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
FUEL FILTER - Call your local BRP dealership
270500115
Unavailable
23
O-RING - Call your local BRP dealership
270500127
Unavailable
25
CLIP - Call your local BRP dealership
270500129
Unavailable
26
NEEDLE VALVE LEVER - Call your local BRP dealership
270500128
Unavailable
27
Spring
270500313
Unavailable
28
DIAPHRAGM ASS'Y - Call your local BRP dealership
270500132
Unavailable
30
GASKET - Call your local BRP dealership
270500131
Unavailable
31
O-RING - Call your local BRP dealership
270500144
Unavailable
32
Adjuster Screw
270500113
Unavailable
33
IDLE ADJUSTING SCREW - Call your local BRP dealership
270500020
Unavailable
34
SPRING - Call your local BRP dealership
270500019
Unavailable
35
Washer
270500018
Unavailable
36
O-RING - Call your local BRP dealership
270500119
Unavailable
37
Screw And Spring Washer
270500155
Unavailable
38
PLATE - Call your local BRP dealership
270500125
Unavailable
39
Pin
270500038
Unavailable
40
VALVE ASS'Y - Call your local BRP dealership
270500124
Unavailable
41
SCREW - Call your local BRP dealership
270500123
Unavailable
42
Screw
270500322
Unavailable
43
SCREW - Call your local BRP dealership
270500238
Unavailable
44
Hose
270500342
Unavailable
45
Choke Lever
270500316
Unavailable
46
SPRING - Call your local BRP dealership
270500248
Unavailable
47
Ring
270500110
Unavailable
48
Cap
270500154
Unavailable
49
RING - Call your local BRP dealership
270500309
Unavailable
50
RING - Call your local BRP dealership
270500192
Unavailable
51
Nut
270500249
Unavailable
52
Throttle Lever Ass'y
270500317
Unavailable
53
Diaphragm Cover
270500424
Unavailable
54
RECHARGE JET - Call your local BRP dealership
270500348
Unavailable
55
Adjuster Screw
270500288
Unavailable
56
Pump Cover | CHALLENGER 1800 5675 PTO.
270500138
Unavailable
57
Socket Head Screw M8 X 75
205087560
Unavailable
