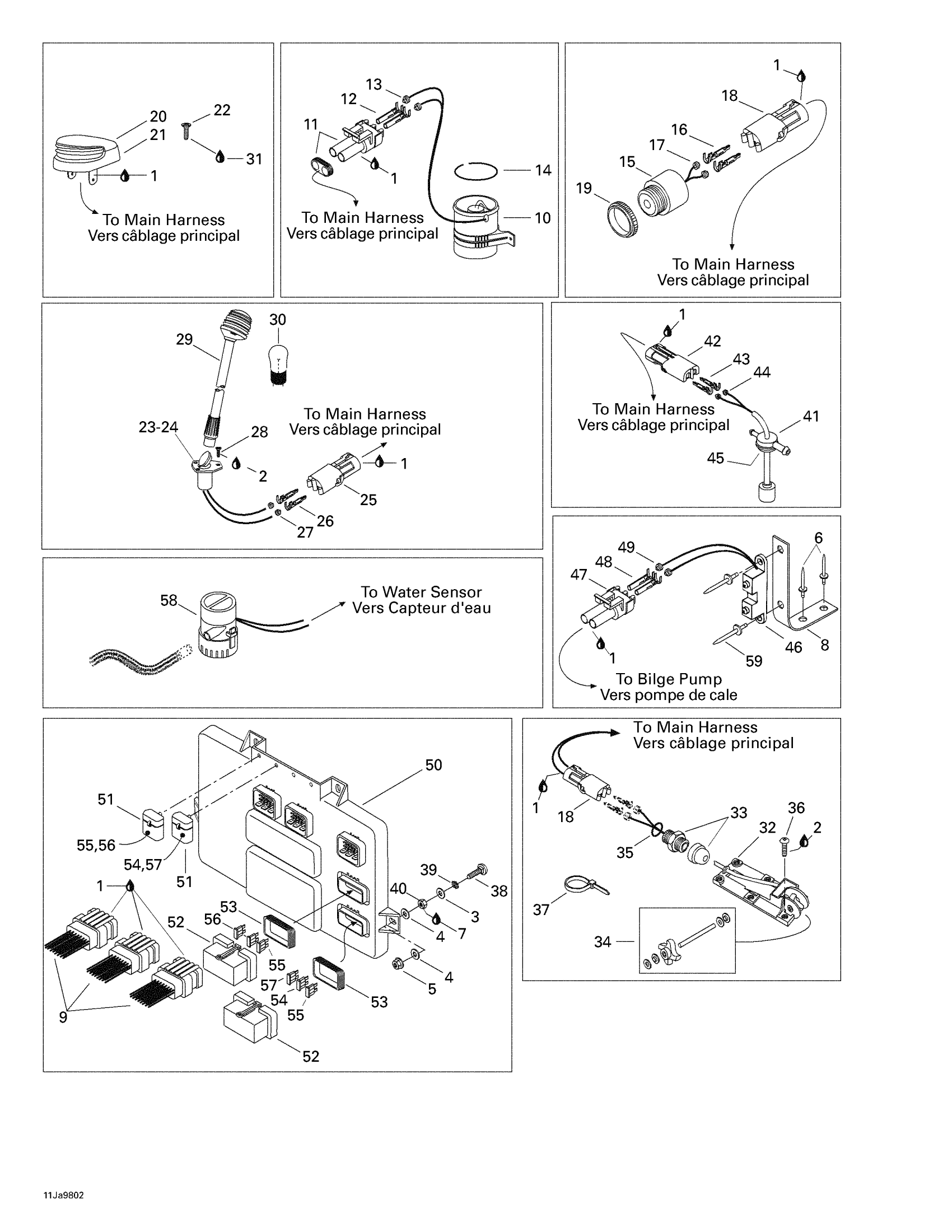

Sea-doo Sportster 1800, 5613/5618, 1998 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Loctite 243, 10 ml

293800060

$21.49

3

Stainless, Flat Washer 8 mm

234081600

$0.55

4

Flat Washer M6, Stainless

234062600

$0.77

5

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

Rivet 1/8"

293150016

$0.40

7

Loctite 271, 10 ml

293800005

$26.99

8

Sensor Support

204470058

Unavailable

9

Harness Ass'y (for 5613)

204470186

Unavailable

Harness Ass'y (for 5618)

204470271

Unavailable

10

Fan Ass'y | Includes 44 to 47

204470108

$144.99

11

Male Connector, 2 Circuits

278000220

$15.49

12

Female Terminal

278000223

$3.19

13

Wire Seal

278000218

$4.39

14

BROACH - Call your local BRP dealership

204000133

Unavailable

15

BUZZER ASSEMBY - Call your local BRP dealership | Includes 15 - 17.

278000887

Unavailable

16

Male Terminal | XT Models

278000222

$3.19

17

Wire Seal

278000218

$4.39

18

Female Housing, 2 Circuits

278000217

$9.59

19

Buzzer Nut

278000707

Unavailable

20

Front Lamp

204470071

Unavailable

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

Phillips Screw M4 X 16

208641660

$0.90

23

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

24

Rear Lamp Base Ass'y | Includes 12 to 16

204471177

Unavailable

25

Female Housing, 2 Circuits

278000217

$9.59

26

Male Terminal | XT Models

278000222

$3.19

27

Wire Seal

278000218

$4.39

28

Screw M4 x 30

211000136

Unavailable

29

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

30

Bulb

204470053

Unavailable

31

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

32

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

33

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

34

Paddle Wheel Kit

295500108

Unavailable

35

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

36

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

37

Tie Wrap 94 mm | 4X4

293750001

$1.03

38

Carriage Bolt 1/4-20 x 2 1/2

211000182

Unavailable

Screw 1/4”-20 X 1-3/4”

211000193

Unavailable

39

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

40

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

41

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

42

Female Housing, 2 Circuits

278000217

$9.59

43

Male Terminal | XT Models

278000222

$3.19

44

Wire Seal

278000218

$4.39

45

Grommet

204470104

Unavailable

46

WATER SENSOR - Call your local BRP dealership

204470038

Unavailable

47

Male Connector, 2 Circuits

278000220

$15.49

48

Female Terminal

278000223

$3.19

49

Wire Seal

278000218

$4.39

50

Electronic Module Ass'y | Includes 61 - 68.

204470184

Unavailable

51

Fuse Holder

278000379

Unavailable

52

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

$36.99

53

Cover Seal

278001070

Unavailable

54

Fuse, 10 Amperes | North America

278001197

$2.21

55

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

56

Fuse, 5 Amperes | CE

278000344

$3.28

57

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

58

Bilge Pump This part replaces 204470220.

278002020

$99.49

59

Not Available As Spare Part - Friction Washer

Unavailable
