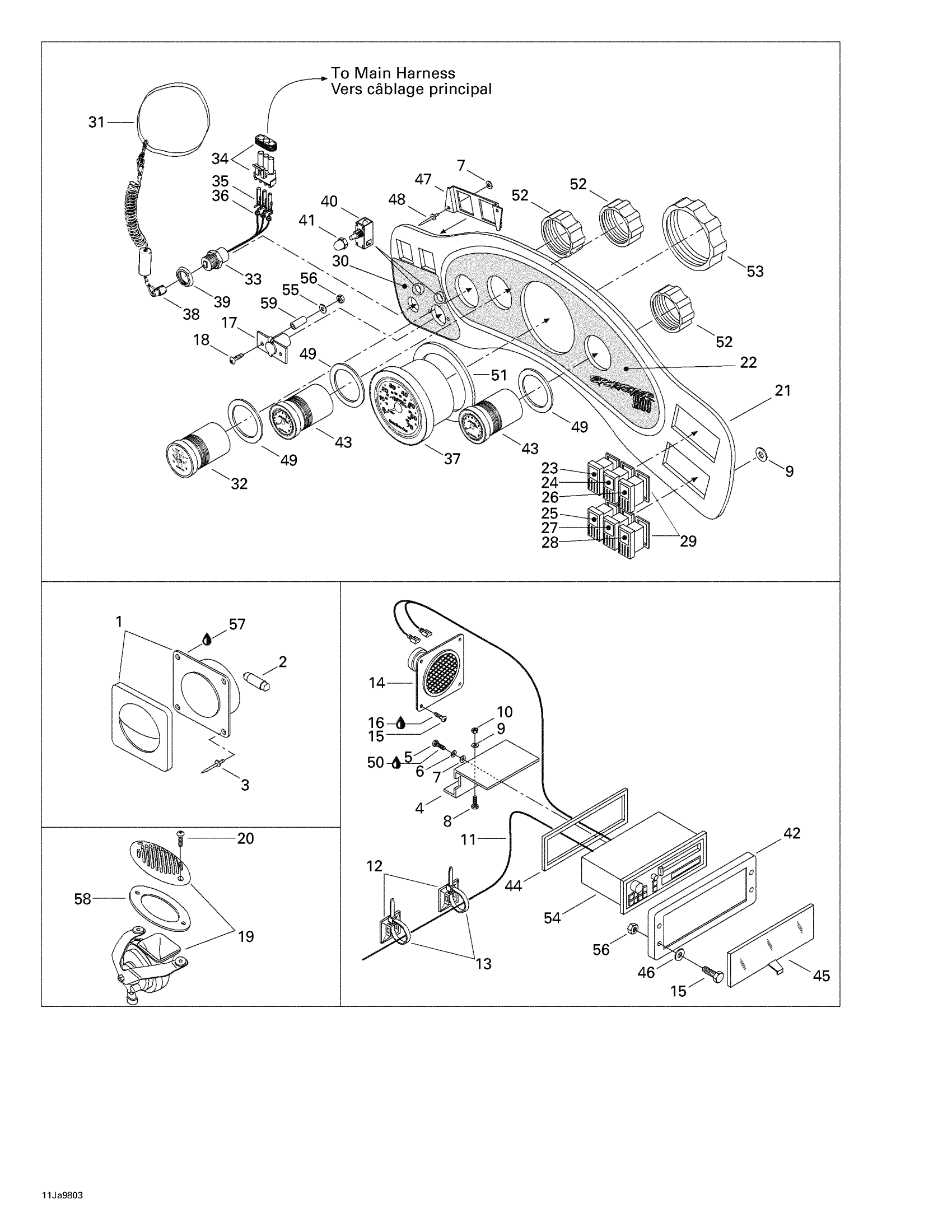

Sea-doo Sportster 1800, 5613/5618, 1998 Electrical Accessories 1 Diagram

#

Description
Price

1

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

2

BULB - Call your local BRP dealership

204470081

Unavailable

3

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

4

Radio Support

204470194

Unavailable

5

Screw M5 x 10

215851068

Unavailable

6

Helical Lock Washer M5

234151601

$1.15

7

Flat Washer 5 mm, Stainless

234052600

$0.77

8

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Antenna

204470028

Unavailable

12

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

13

Tie Wrap 94 mm | 4X4

293750001

$1.03

14

Speaker

204470029

Unavailable

15

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

16

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

17

12V. Jack

204470030

Unavailable

18

Screw M4 x 45

216144560

Unavailable

19

HORN - Call your local BRP dealership

204470801

Unavailable

20

Screw 3/16 x 1

211000192

Unavailable

21

Facia

204470125

Unavailable

22

Dash Plate | .

204470247

Unavailable

23

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

24

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

25

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

26

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

27

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

28

Fuel Tank Reserve Switch | Includes 40 - 41.

204470103

Unavailable

29

Gasket

204470132

Unavailable

30

Starter Plate | .

204470246

Unavailable

31

Safety Strap

204470025

Unavailable

32

Fuel/Oil Gauge

204470144

Unavailable

33

Safety Switch This part replaces 278002325.

278002773

$114.99

34

Male Housing, 3 Circuits

278000273

$9.59

35

Female Terminal

278000223

$3.19

36

Wire Seal

278000218

$4.39

37

Speedometer

204470158

Unavailable

38

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

$84.99

39

Safety Nut (DESS Switch)

278002963

$3.28

40

RH IGNITION SWITCH - Call your local BRP dealership

278000622

Unavailable

IGNITION SWITCH - Call your local BRP dealership

278000621

Unavailable

41

IGNITION SWITCH CAP, RED - Call your local BRP dealership

278000565

Unavailable

42

Radio Cover

204470266

Unavailable

43

Tachometer Gauge

204470148

Unavailable

44

RADIO COVER GASKET - Call your local BRP dealership

204470257

Unavailable

45

Radio Splashguard

204470270

Unavailable

46

Flat Washer 4 mm

234040600

$0.55

47

Facia Bracket

204470203

Unavailable

48

Pop Rivet 3/16"

293150013

$1.37

49

Gasket

204470145

Unavailable

50

Loctite 243, 10 ml

293800060

$21.49

51

Gasket

204470169

Unavailable

52

Gauge Nut

204470146

Unavailable

53

Gauge Nut

204470171

Unavailable

54

Radio Tape

204470331

Unavailable

55

Flat Washer 4 mm, Stainless

234042600

$1.15

56

Elastic Stop Nut M4

232541600

$1.15

57

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

58

Horn Gasket

293250089

Unavailable

59

SPACER - Call your local BRP dealership

277000449

Unavailable
