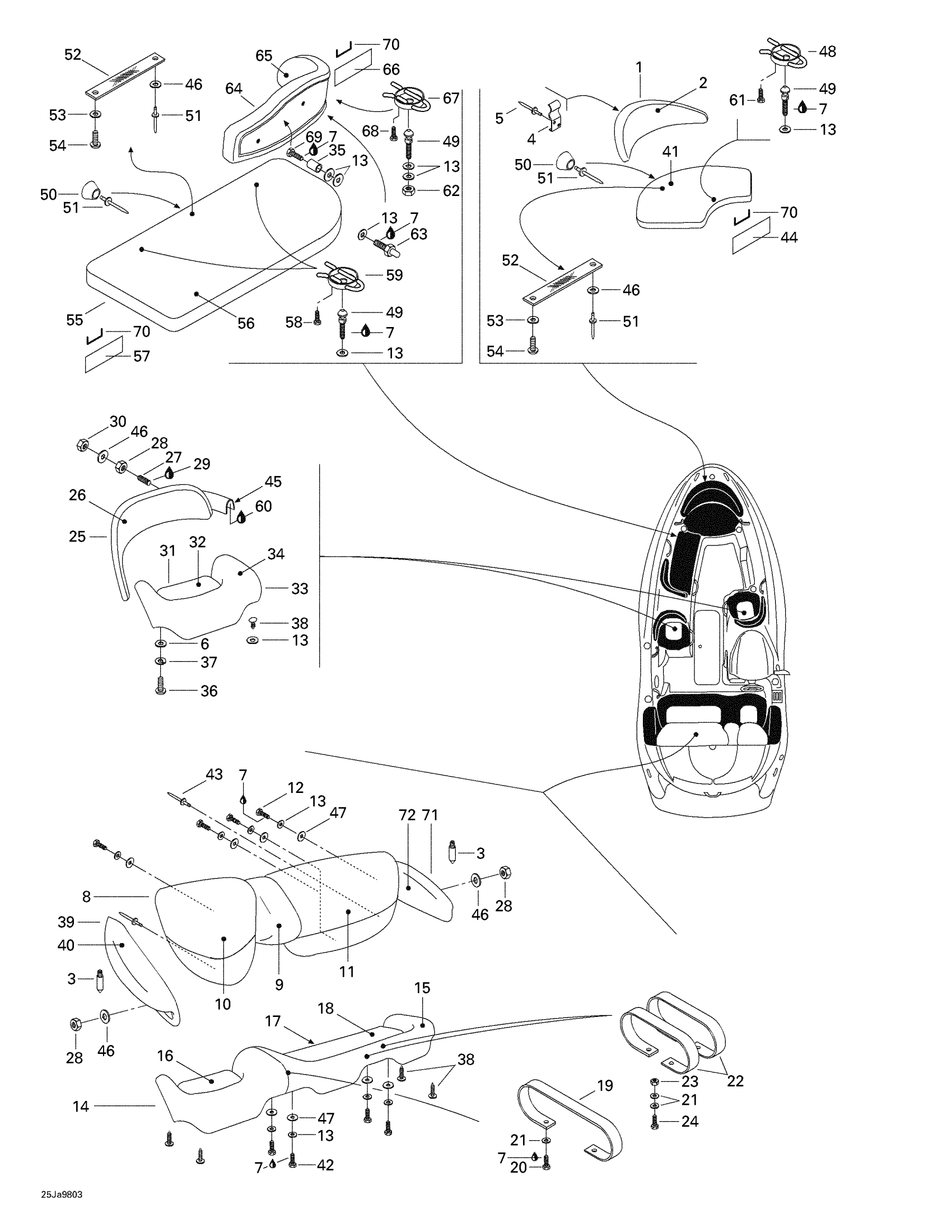

Sea-doo Sportster 1800, 5613/5618, 1998 Seat Diagram

#

Description
Price

1

Front Backrest Ass'y | SPORTSTER 1800 5680.

204610334

Unavailable

2

Front Backrest Cover (Indigo) | SPORTSTER 1800 5680.

204610150

Unavailable

3

Screw M5 x 40

216554060

Unavailable

4

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

5

Pop Rivet 3/16"

293150043

$2.09

6

Stainless Flat Washer M6

234061600

$0.33

7

Loctite 243, 10 ml

293800060

$21.49

8

Rear Backrest Ass'y | SPORTSTER 1800 5680.

204610343

Unavailable

9

Rear Bump Cover (Indigo) | SPORTSTER 1800 5680.

204610170

Unavailable

10

Rear Backrest Cover (1 pass.) (White/Emb | SPORTSTER 1800 5680.

204610171

Unavailable

11

Rear Backrest Cover (White/Serigraphy) | SPORTSTER 1800 5680.

204610172

Unavailable

12

Hex. Screw M6 X 40

207164060

$3.38

13

Flat Washer M6, Stainless

234062600

$0.77

14

Rear Seat Ass'y | SPORTSTER 1800 5680.

204610338

Unavailable

15

Rear Seat Cover (Indigo) | SPORTSTER 1800 5680.

204610224

Unavailable

16

Rear Seat Pillow Cover

204610307

Unavailable

17

LH Rear Seat Pillow Ass'y | Includes 17 - 18.

204610341

Unavailable

18

LH Rear Seat Pillow Cover

204610109

Unavailable

19

Strap (80 cm.)

204610226

Unavailable

20

Hex. Screw M6 X 16

207161660

$1.59

21

Flat Washer M6, Stainless

234062600

$0.77

22

Strap (50 cm.)

204610227

Unavailable

23

Hex. Elastic Stop Nut M6

232561600

$1.15

24

Hex. Forming Screw M6 X 20

207162060

$1.29

25

Keeper Seat Backrest Ass'y | SPORTSTER 1800 5680.

204610337

Unavailable

26

Keeper Seat Backrest Cover | SPORTSTER 1800 5680.

204610168

Unavailable

27

Set Screw M5 x 30

216553060

Unavailable

28

Hex. Nut M5

232051600

$1.15

29

Loctite 271, 10 ml

293800005

$26.99

30

Hex. Elastic Nut M5 | X

232551600

$1.15

31

Keeper Seat Pillow Ass'y | Includes 31 - 33.

204610163

Unavailable

32

Keeper Seat Cover (Large)

204610165

Unavailable

33

Keeper Seat Ring Ass'y | SPORTSTER 1800 5680.

204610188

Unavailable

34

Keeper Seat Ring Cover | SPORTSTER 1800 5680.

204610217

Unavailable

35

SPACER 6.7 MM - Call your local BRP dealership

277000584

Unavailable

36

Screw 6.3 x 32

216663260

Unavailable

37

Lock Washer Helical M6

234161601

$1.15

38

Black Dart

293730014

$0.99

39

RH Rear Seat Arm-Rest Ass'y | SPORTSTER 1800 5680.

204610190

Unavailable

40

RH Rear Seat Arm-Rest Cover | SPORTSTER 1800 5680.

204610212

Unavailable

41

Center Front Seat Cover (White)

204610153

Unavailable

42

Hex. Screw M6 X 45

207164560

$1.89

43

Pop Rivet 3/16"

293150008

$0.50

44

Staple Cover, Meter

204610184

Unavailable

45

BLACK TRIM, METER - Call your local BRP dealership

204070055

Unavailable

46

Flat Washer 5 mm, Stainless

234052600

$0.77

47

Flat Washer 8 mm, Stainless

234082600

$2.43

48

Front Seat Latch

204610178

Unavailable

49

Seat Stud

204610207

Unavailable

50

Rubber Stopper

293830043

Unavailable

51

Pop Rivet 3/16"

293150013

$1.37

52

Passenger Strap

293000060

Unavailable

53

Flat Washer 4 mm, Stainless

234042600

$1.15

54

Screw K40 X 10

241140060

$1.48

55

LH Front Seat Ass'y | Includes 55 - 59.

204610102

Unavailable

56

LH Front Seat Cover (White)

204610156

Unavailable

57

Staple Cover, Meter

204610184

Unavailable

58

Socket Head Screw M4 X 16

205441660

$1.47

59

Front Seat Latch

204610178

Unavailable

60

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

61

Socket Head Screw M4 X 16

205441660

$1.47

62

Hex. Elastic Stop Nut M6

232561600

$1.15

63

Backrest Pin

204610257

Unavailable

64

LH Front Backrest Ass'y | SPORTSTER 1800 5680.

204610159

Unavailable

65

LH Front Backrest Cover | SPORTSTER 1800 5680.

204610161

Unavailable

66

Staple Cover, Meter

204610184

Unavailable

67

Front Seat Latch

204610178

Unavailable

68

Socket Head Screw M4 X 16

205441660

$1.47

69

PHILLIPS SCREW M6 X 30 - Call your local BRP dealership

208663060

Unavailable

70

Staple

293730005

Unavailable

71

LH Rear Seat Arm-Rest Ass'y | SPORTSTER 1800 5680.

204610189

Unavailable

72

LH Rear Seat Arm-Rest Cover | SPORTSTER 1800 5680.

204610211

Unavailable
