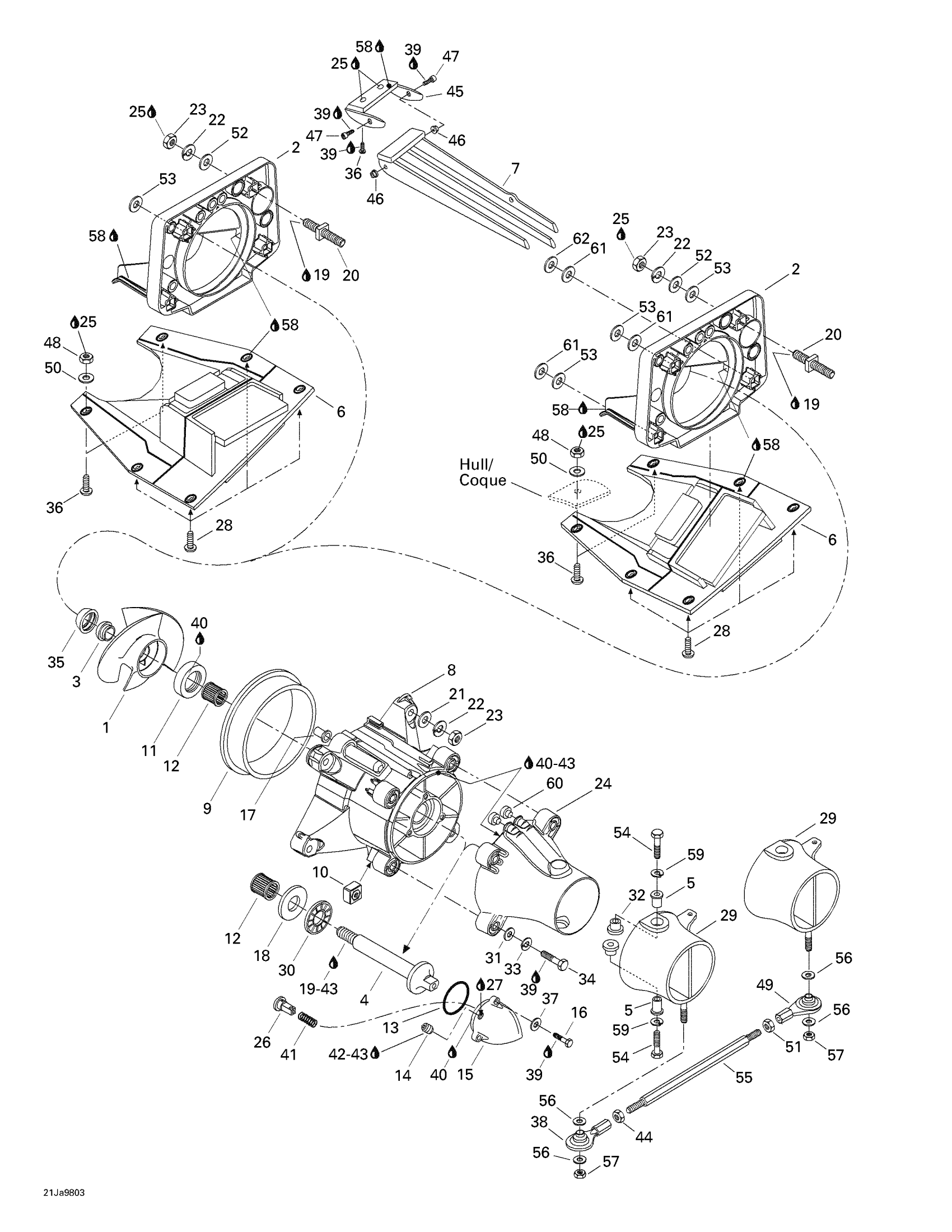

Sea-doo Sportster 1800, 5613/5618, 1998 Propulsion System Diagram

#

Description
Price

1

Stainless Steel Impeller Ass'y

271000885

Unavailable

2

Pump Support

204120127

Unavailable

3

Impeller Boot

271000516

$6.86

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Sleeve

271001816

$11.58

6

RH Shoe

204120103

Unavailable

LH Shoe

204120104

Unavailable

7

RH MOBIL GRATE - Call your local BRP dealership

204120084

Unavailable

LH Mobil Grate

204120087

Unavailable

8

Impeller Housing Ass'y | Includes 8 - 10.

204160051

Unavailable

9

Wear Ring

271000290

$47.42

10

Square Nut M8

211100033

$14.27

11

Oil Seal

267000094

$17.52

12

Needle Bearing

293350017

$21.42

13

O-Ring

293300011

$6.46

14

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

15

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

16

Hex. Screw M5 X 20

207152060

$1.22

17

Watertight Seal

293250084

$5.81

18

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

19

Loctite 271, 10 ml

293800005

$20.77

20

Square Stud

250300022

$15.57

21

Flat Washer 10 mm, Stainless

234001600

$0.91

22

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

23

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

24

VENTURI - Call your local BRP dealership

271000509

Unavailable

25

Silicone Sealant 51388, 300 ml

296000309

$35.72

26

Pusher

271000898

Unavailable

27

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

28

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

29

RH Steering Nozzle (Black)

204120069

Unavailable

Steering Nozzle (Black) L.H

204120111

Unavailable

30

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

31

Stainless, Flat Washer 8 mm

234081600

$0.46

32

Venturi Bushing

293900001

$6.14

33

Lock Washer 8 mm, Stainless

234181601

$0.46

34

Hex. Screw M8 x 75

215687560

Unavailable

35

Impeller Ring

271000517

$6.86

36

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

37

Flat Washer M5, Stainless

234051600

$0.64

38

BALL JOINT - Call your local BRP dealership

204120075

Unavailable

39

Loctite 243, 10 ml

293800060

$20.77

40

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

41

SPRING - Call your local BRP dealership

271000704

Unavailable

42

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

43

Was 293800041 Loctite Primer 7649

219704458

$41.99

44

HEX. NUT 5/16-24 - Call your local BRP dealership

211100034

Unavailable

45

Grate Support, Starboard

204120083

Unavailable

GRATE SUPPORT, PORT SIDE - Call your local BRP dealership

204120086

Unavailable

46

PLASTIC BUSHING - Call your local BRP dealership

204390001

Unavailable

47

SOCKET SCREW M6 X 8 - Call your local BRP dealership

211000099

Unavailable

48

Hex. Elastic Stop Nut M6

232561600

$0.92

49

BALL JOINT - Call your local BRP dealership

204120074

Unavailable

50

Flat Washer M6, Stainless

234062600

$0.64

51

HEX. NUT 5/16-24 - Call your local BRP dealership | Single HO Engine Models

277000439

Unavailable

52

Flat Washer 10 mm, Stainless

234002600

$1.85

53

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

54

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

55

Link Rod

204120076

Unavailable

56

FLAT WASHER - Call your local BRP dealership

211200019

Unavailable

57

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

58

Instant Gasket

219701421

$50.02

59

Lock Spring Washer 8 mm, Stainless

234180602

$1.09

60

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

61

Shim 1.3 mm

204120128

Unavailable

62

Shim 0.3 mm

204120129

Unavailable
