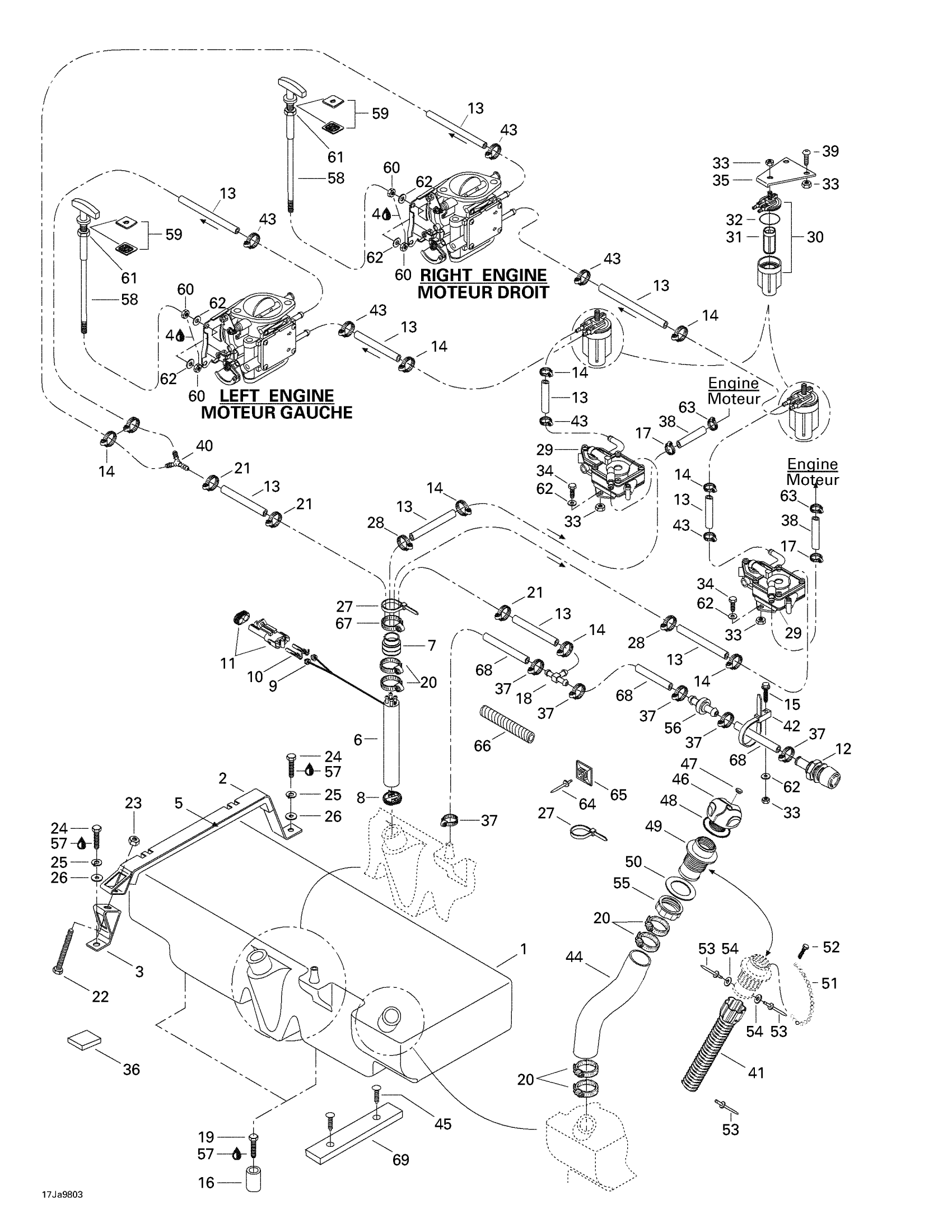

Sea-doo Sportster 1800, 5613/5618, 1998 Fuel System Diagram

#

Description
Price

1

Fuel Tank, Plastic

204560073

Unavailable

Aluminum Fuel Tank

204560015

Unavailable

2

Fuel Tank Strap

204560011

Unavailable

3

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Protector Pad

204560037

Unavailable

6

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

7

Fuel Tube Adaptor

204560066

Unavailable

8

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

9

Wire Seal

278000218

$4.39

10

Female Terminal

278000223

$3.19

11

Male Housing, 3 Circuits

278000273

$9.59

12

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

13

Hose 6 mm

204000068

Unavailable

14

Norma Clamp

293650088

Unavailable

15

OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership

208563060

Unavailable

16

Rubber Bumper

204560039

Unavailable

17

Oetiker Clamp

293650042

$3.09

18

T-Fitting

204560038

Unavailable

19

Phillips Screw M5 X 35

208653560

$2.22

20

Tridon Clamp

293650023

$13.49

21

Clic Clamp

293650059

Unavailable

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

23

Hex. Elastic Nut M8

232581600

$1.48

24

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

25

Lock Washer 8 mm, Stainless

234181601

$0.55

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

Tie-Rap 180 mm

414115200

$0.11

28

NORMA CLAMP - Call your local BRP dealership

293650087

Unavailable

29

Fuel Pump

270500390

Unavailable

30

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$42.49

31

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

32

O-Ring

275500090

$8.79

33

Hex. Elastic Stop Nut M6

232561600

$1.15

34

Hex. Forming Screw M6 X 20

207162060

$1.29

35

Fuel Filter Support

204560007

Unavailable

36

Protecteur Pad

204560027

Unavailable

37

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

38

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

39

Screw M6 x 16

211000003

Unavailable

40

Y-Fitting

293710059

$9.69

41

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

42

Tie-Rap

293750017

Unavailable

43

NORMA CLAMP - Call your local BRP dealership

293650070

Unavailable

44

Filler Neck Hose

204560033

Unavailable

45

Black, Dart

293730006

$0.99

46

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

47

Black, Snap Cap

293000034

$9.39

48

Gasket

293250017

Unavailable

49

Filler Neck

275500247

Unavailable

50

Gasket

293250029

$14.82

51

Oil Cap Chain

275500015

Unavailable

52

Screw K40 X 10

241140060

$1.48

53

Rivet 1/8”

293150057

Unavailable

54

Flat Washer M3, Stainless

234032600

$0.55

55

Filler Neck Nut, Fuel

211100012

$14.22

56

Vent Line Surge Protector

204560074

Unavailable

57

Loctite 271, 10 ml

293800005

$26.99

58

Choke Cable Ass'y L.H | Includes 58 - 62.

204250030

Unavailable

Choke Cable Ass'y R.H

204250029

Unavailable

59

Choke Plate

291000457

Unavailable

60

Hex. Nut M6

232160600

$1.15

61

Hex. Nut

211100007

Unavailable

62

Stainless Flat Washer M6

234061600

$0.33

63

Tridon Gear Clamp

293650170

$1.99

64

Pop Rivet 3/16"

293150008

$0.50

65

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

66

Vent Hose Protector

204560078

Unavailable

67

Norma Clamp

293650077

$7.41

68

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

69

Rubber Pad

293830021

Unavailable
