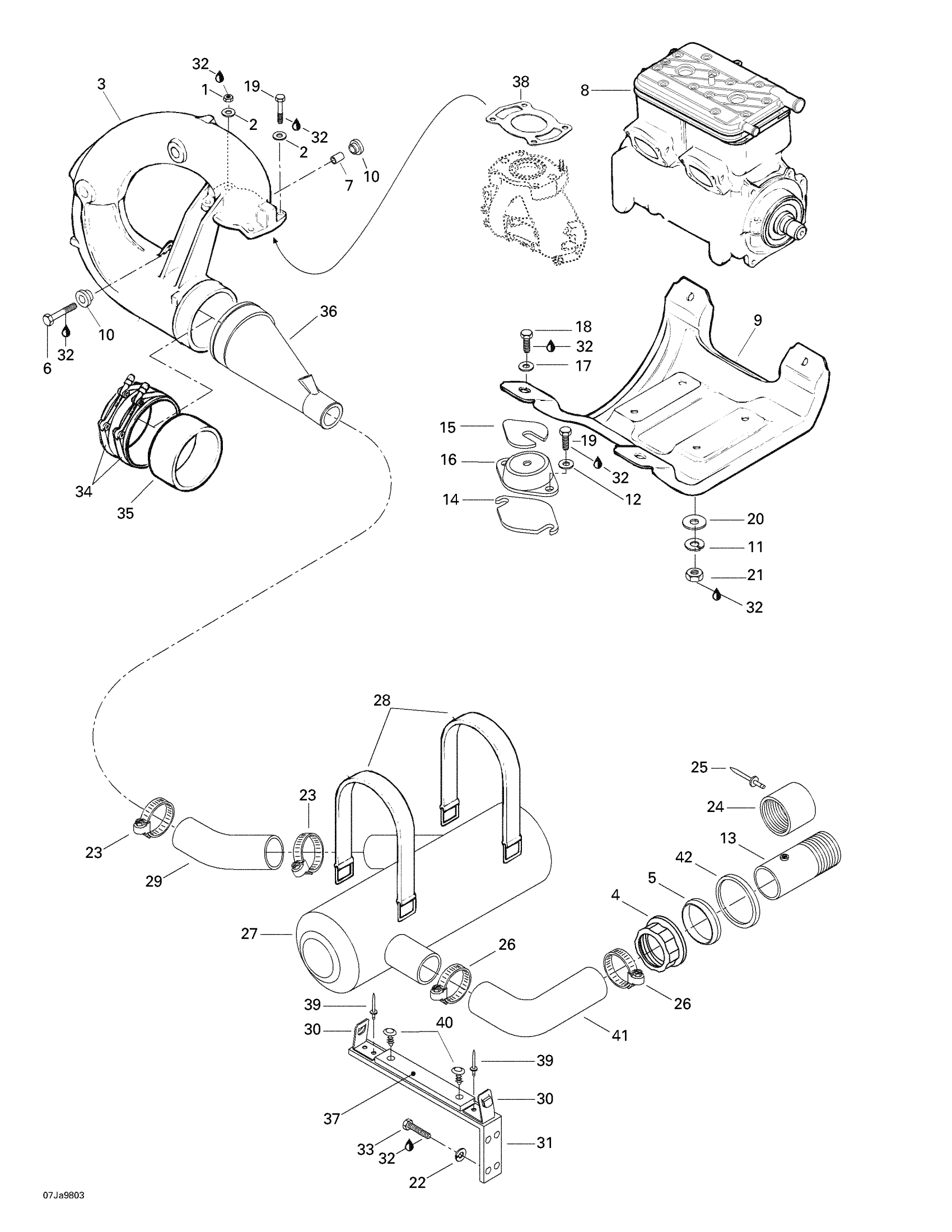

Sea-doo Sportster 1800, 5613/5618, 1998 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Nut M8

232081600

$1.47

2

Flat Washer M8.5 x 18

293050001

$3.07

3

Tuned Pipe Ass'y

274000487

Unavailable

4

Nut 72 mm

274000224

$16.34

5

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

6

Hex. Screw M8 X 40

207084060

$2.22

7

Bushing

274000114

$8.85

8

Rotax Engine 717 (White)

270000362

Unavailable

9

Engine Support

270000312

Unavailable

10

Rubber Bushing

293830031

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

EXHAUST OUTLET - Call your local BRP dealership

274000222

Unavailable

14

Shim 0.4 mm

270000006

Unavailable

Shim 1.3 mm

270000007

Unavailable

Shim 3.3 mm

270000143

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

19

Hex. Screw M8 X 30

207183060

$1.58

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Helical Lock Washer M5

234151601

$1.15

23

Tridon Clamp

293650036

$7.49

24

Exhaust Outlet Extension

204340099

Unavailable

25

Pop Rivet 3/16" | UTOPIA 210.

293150060

Unavailable

26

Tridon Clamp

293650064

$8.29

27

LH Muffler

204340086

Unavailable

RH Muffler

204340087

Unavailable

28

Retainer Strap

293850097

$11.64

29

Exhaust Hose

204340024

Unavailable

30

Strap Clip 90°

204060017

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

SCREW-HEX.CAP DIN.933A2 - Call your local BRP dealership

215051660

Unavailable

34

NORMA CLAMP - Call your local BRP dealership

293650068

Unavailable

35

Sealing Ring

274000074

Unavailable

36

Exhaust Cone Ass’Y

274000488

Unavailable

37

Rubber Pad

204060031

Unavailable

38

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

39

Avdel Rivet 3/16"

293150037

$0.56

40

Black, Dart

293730006

$0.99

41

RH Exhaust Hose

204340028

Unavailable

LH Exhaust Hose

204340027

Unavailable

42

GASKET - Call your local BRP dealership

293250041

Unavailable
