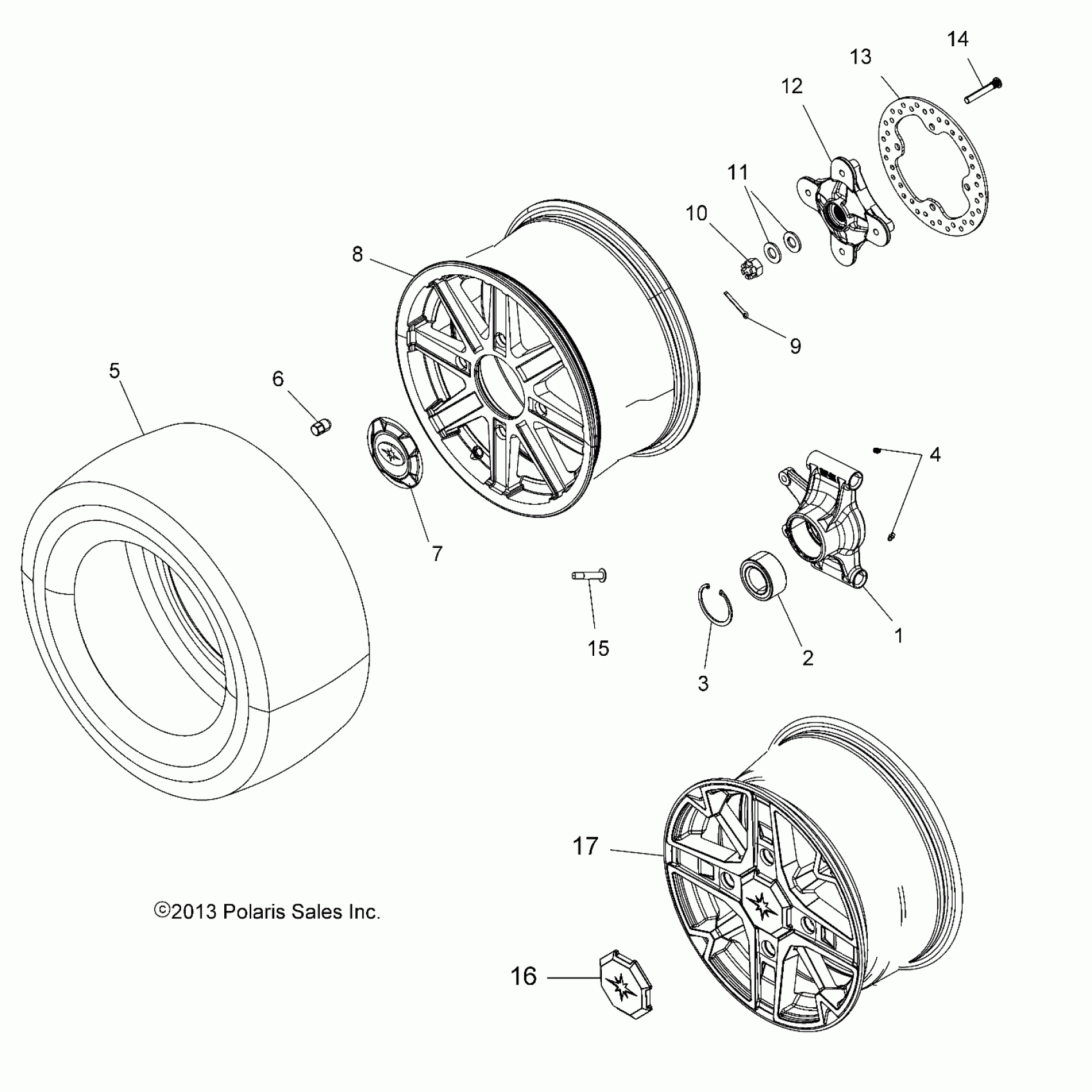

Polaris SPORTSMAN XP EPS 850/HO - A14ZN8EAB/C/I/M/P/S WHEELS, REAR and HUB - A14ZN8EAI/M/P/S (49ATVWHEELRR14SPTRG) Diagram

#

Description
Price

1

CARRIER, BEARING, RH

5136690

Unavailable

1

CARRIER, BEARING, LH

5136689

Unavailable

2

BEARING, BALL, SEALED

3514699

$39.99

3

RING, RETAINING

7710440

$10.39

4

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

TIRE, REAR, 26X10-14 [EAM][EAS]

5414074

Unavailable

5

TIRE, 26X11R14 [EAP]

5414828

$125.99

6

NUT, WHEEL, REAR

7547361

$2.39

7

COVER, HUB [EAM][EAS]

5438120

$43.99

8

RIM, REAR, CAST [EAM][EAS][INCL. COVER]

1521485

Unavailable

9

PIN, COTTER

7661404

$4.79

10

NUT, CASTLE

7547406

$4.79

11

WASHER, CONE

7555796

$7.99

12

HUB, WHEEL

5136946

$93.08

13

DISC, BRAKE

5250205

$75.99

14

STUD, WHEEL

7518671

$1.59

15

VALVE-RIM

1525017

$5.59

16

CAP, RIM [EAP]

1521999

Unavailable

17

RIM, REAR, CAST, BLACK [EAP][INCL. 16]

1522101-067

$182.39
