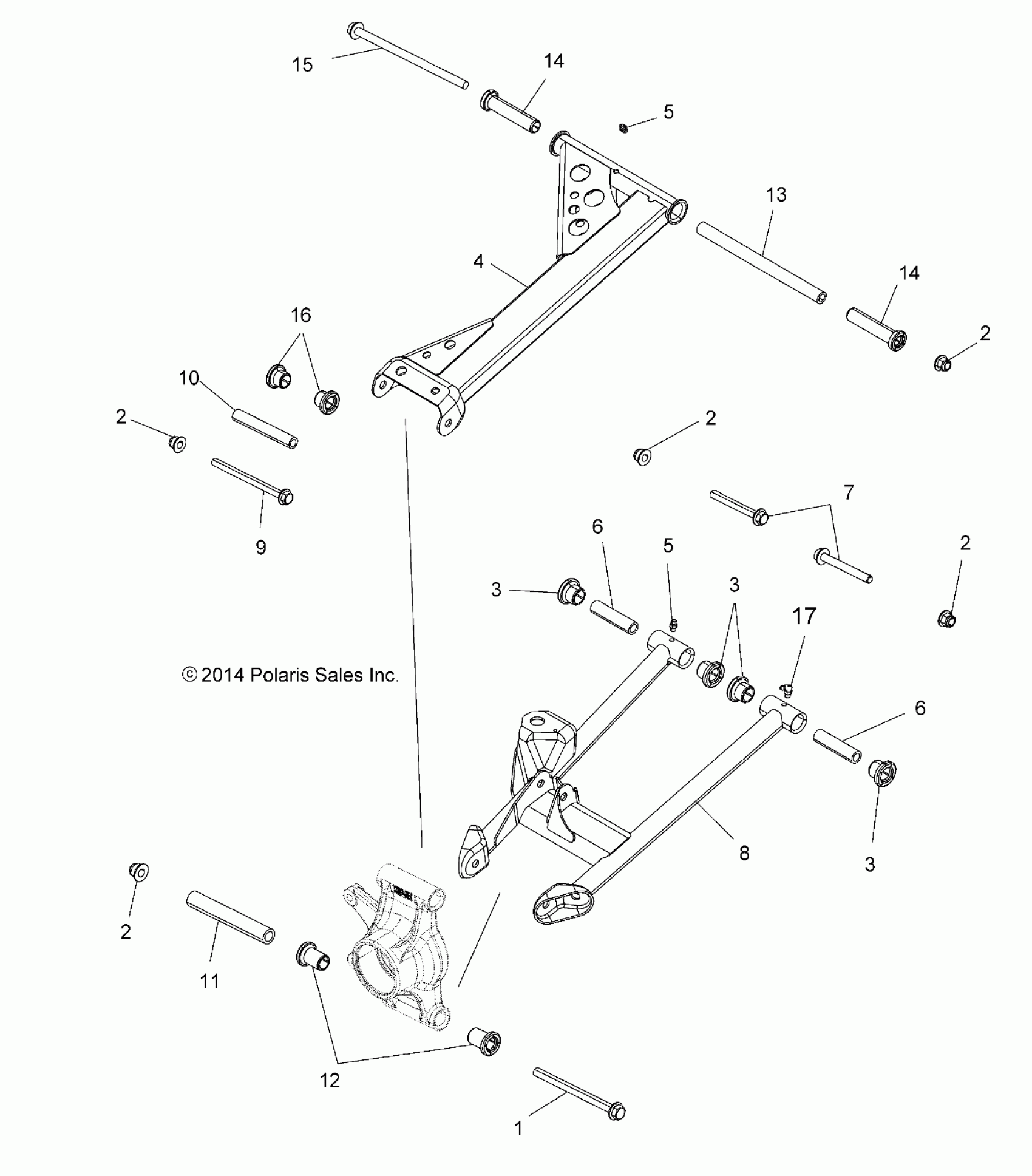

Polaris SPORTSMAN XP EPS 850/HO - A14ZN8EAB/C/I/M/P/S SUSPENSION, REAR - A14ZN8EAB/C/I/M/P/S (49ATVSUSPRR14USA Diagram

#

Description
Price

1

BOLT, FLANGE

7518467

$5.59

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

2

Nut, Flange

7547313

$1.49

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

3

BUSHING-STANDARD,ORV

5439874

$2.39

3

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

4

ARM, CONTROL, UPPER, REAR, LH, INDY RED [EAP]

1017216-293

Unavailable

4

ARM, CONTROL, UPPER, REAR, RH, INDY RED [EAP]

1017217-293

Unavailable

4

ARM, CONTROL, UPPER, REAR, LH, BLACK [EAB][EAC][EAM]

1017216-067

Unavailable

4

ARM, CONTROL, UPPER, REAR, RH, BLACK [EAB][EAC][EAM]

1017217-067

Unavailable

5

FITTING, LUBRICATING

7080433

$1.49

5

FITTING, LUBRICATING

7080433

$1.49

6

SHAFT, A-ARM

5137346

$14.39

6

SHAFT, A-ARM

5137346

$14.39

7

BOLT, FLANGE

7518466

$4.79

8

ARM, CONTROL, LOWER, REAR, LH, INDY RED [EAP]

1019410-293

$103.99

8

ARM, CONTROL, LOWER, REAR, RH, INDY RED [EAP]

1019411-293

$103.99

8

ARM, CONTROL, LOWER, REAR, LH, BLACK [EAB][EAC][EAM]

1019410-067

$99.99

8

ARM, CONTROL, LOWER, REAR, RH, BLACK [EAB][EAC][EAM]

1019411-067

$99.99

9

BOLT, FLANGE

7518675

$5.59

10

SHAFT, PIVOT

5137590

$8.79

11

SHAFT, A-ARM, LOWER CONTROL ARM

5136473

Unavailable

12

BUSHING, LOWER CONTROL ARM

5437651

$6.39

13

SHAFT, PIVOT

5137594

$8.79

14

BUSHING, A-ARM, LONG

5436973

$5.19

14

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

14

BUSHING, A-ARM, LONG

5436973

$5.19

14

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

15

BOLT

7518472

$6.39

16

BUSHING-STANDARD,ORV

5439874

$2.39

16

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

17

FITTING, ZERK

7080510

$5.59
