STEERING, STEERING POST ASM. - A14ZN8EAB/C/I/M/P/S (49ATVSTEERING14SP550)

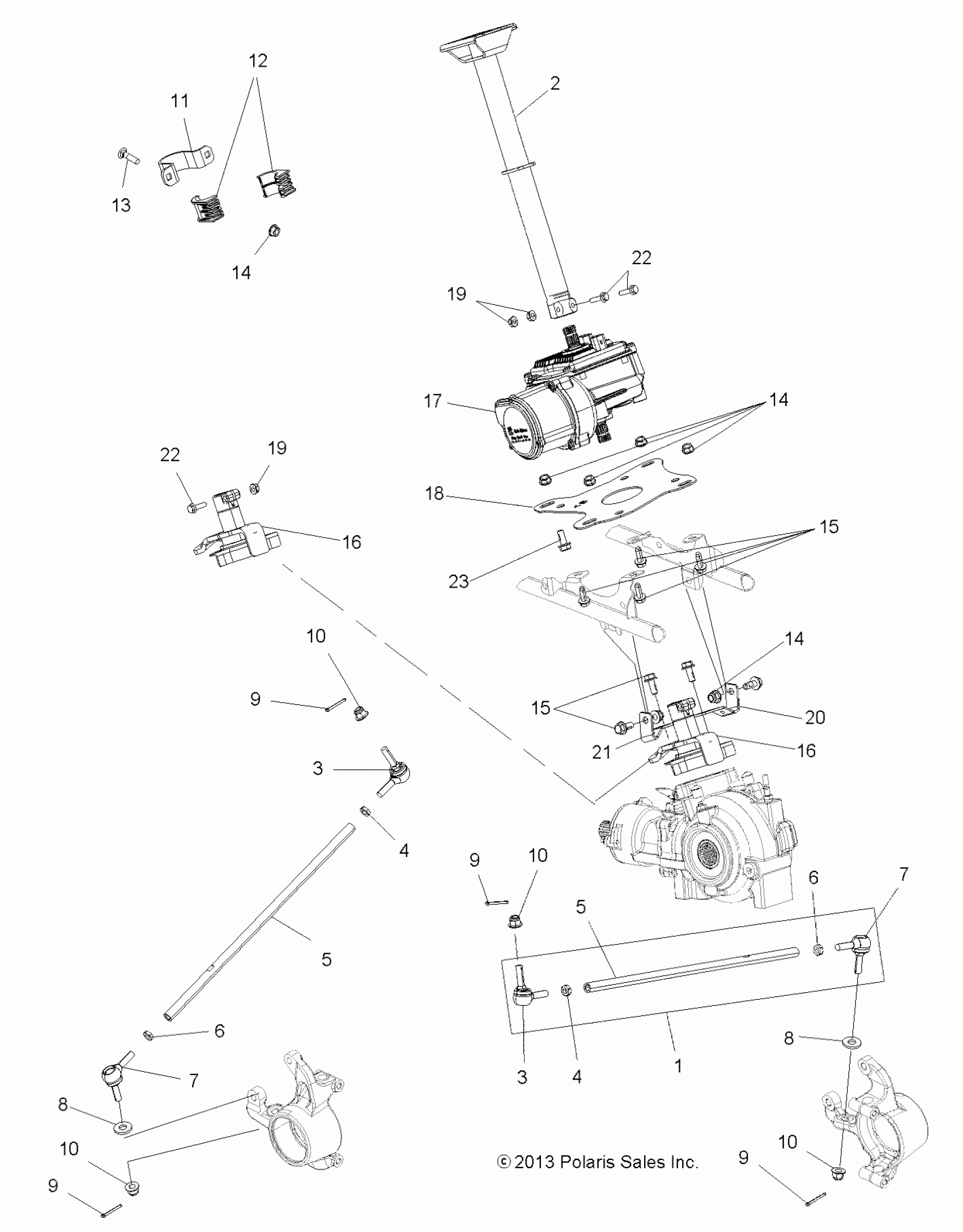

Polaris SPORTSMAN XP EPS 850/HO - A14ZN8EAB/C/I/M/P/S STEERING, STEERING POST ASM. - A14ZN8EAB/C/I/M/P/S (49ATVSTEERING14SP550) Diagram
#
Description
Price
1
ASM., TIE ROD [INCL. 3-7][3-7 AVAILABLE ONLY IN THIS ASSEMBLY]
1824007
$99.99
2
POST, STEERING, UPPER, BLACK
1823781-329
$111.99
3
Rod End, RH
-------
Unavailable
3
Rod End, RH
-------
Unavailable
4
NUT, JAM, RH
-------
Unavailable
4
NUT, JAM, RH
-------
Unavailable
5
Tie Rod
-------
Unavailable
5
Tie Rod
-------
Unavailable
6
NUT, JAM, LH
-------
Unavailable
6
NUT, JAM, LH
-------
Unavailable
7
Rod End, LH
-------
Unavailable
7
Rod End, LH
-------
Unavailable
8
WASHER
7556153
$1.99
8
WASHER
7556153
$1.99
9
Pin, Cotter
7661205
$1.49
9
Pin, Cotter
7661205
$1.49
9
Pin, Cotter
7661205
$1.49
9
Pin, Cotter
7661205
$1.49
10
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
10
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
$1.59
11
BRACKET, STEERING, UPPER [BUILT 3/13/14 AND AFTER]
5259997
$27.99
11
BRACKET, STEERING, UPPER [BUILT 3/12/14 AND BEFORE]
5249143
Unavailable
12
BUSHING, STEERING, UPPER
5438904
$4.79
13
BOLT, CARRIAGE
7518479
$3.99
14
Nut, Flange
7547317
Unavailable
14
Nut, Flange
7547317
Unavailable
15
Bolt, Flange
7518450
$1.59
15
Bolt, Flange
7518450
$1.59
16
KIT, POST, STEERING, LOWER, BOLTED [INCL. POST AND HARDWARE]
2205364
$151.99
16
KIT, POST, STEERING, LOWER, BOLTED [INCL. POST AND HARDWARE]
2205364
$151.99
17
ASM., POWER STEERING
2412743
$1,222.99
18
BRACKET, POWER STEERING, BLACK
5254633-329
$39.99
19
NUT-M6 FLANGE,NYLOC
7547274
$1.49
19
NUT-M6 FLANGE,NYLOC
7547274
$1.49
20
BRACKET, FRONT DRIVE, LH, BLACK
5253166-329
$79.19
21
BRACKET, FRONT DRIVE, RH, BLACK
5253167-329
Unavailable
22
SCREW, FLANGE
7516827
$6.39
22
SCREW, FLANGE
7516827
$6.39
23
BOLT, FLANGE
7518558
$3.99
