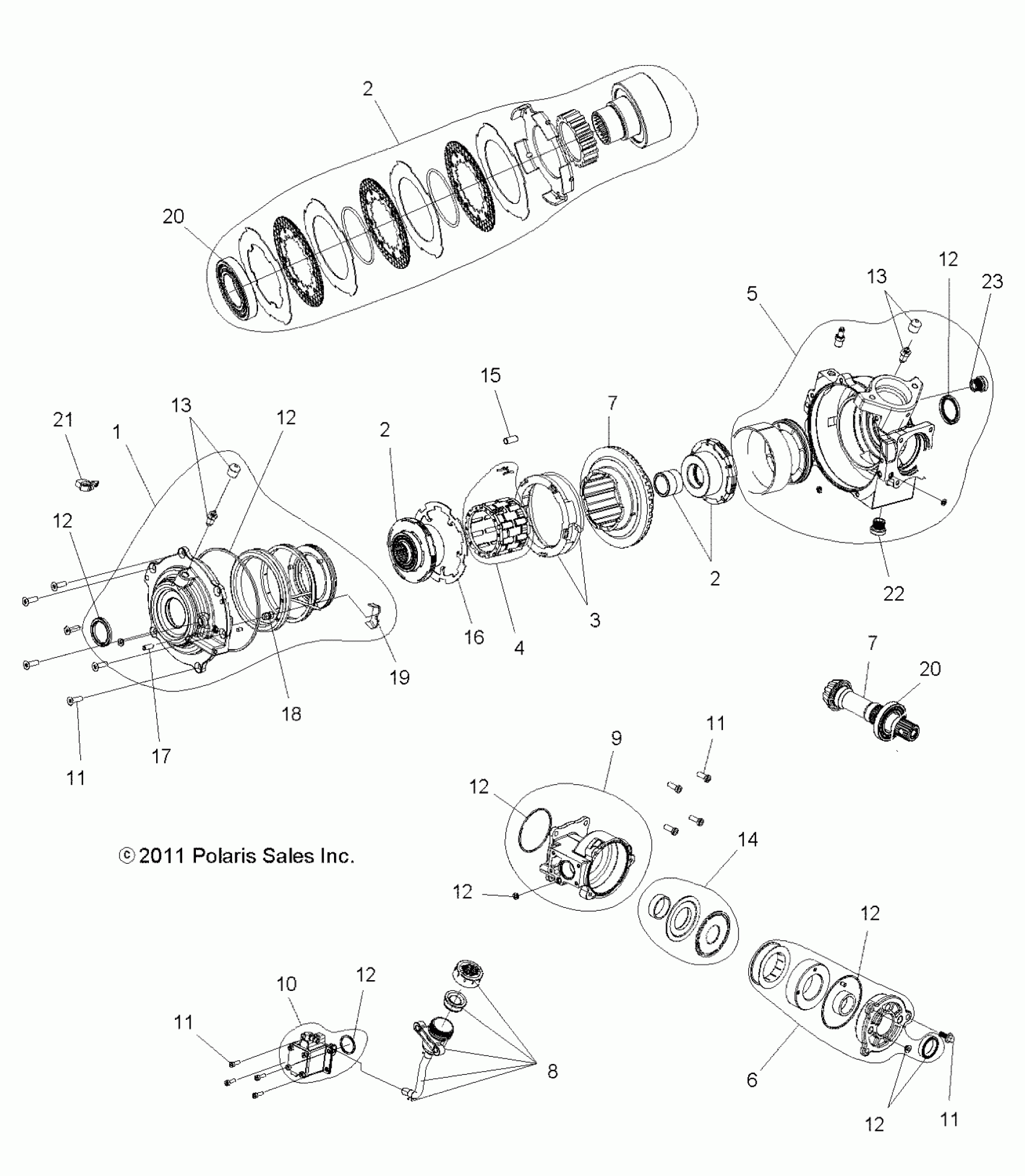

Polaris SPORTSMAN XP EPS 850/HO - A14ZN8EAB/C/I/M/P/S DRIVE TRAIN, FRONT GEARCASE INTERNALS - A14ZN8EAB/I/C/M/P/S (49ATVGEARCASE1332963) Diagram

#

Description
Price

-

ASM., GEARCASE, ADC

1332963

$1,680.79

1

ASM., OUTPUT COVER [INCL. O-RING, DOWEL PIN, SET SCREW, SEAL, COVER, BLEEDER, THRUST BUTTON, PLATES, 4WD COIL, PISTON, GROMMET, COIL POCKET INSERT]

3235164

$428.99

2

KIT, HUB [INCL. HUBS, DISKS, BEARINGS, BUSHING]

3235331

$417.29

2

KIT, HUB [INCL. HUBS, DISKS, BEARINGS, BUSHING]

3235331

$417.29

2

KIT, HUB [INCL. HUBS, DISKS, BEARINGS, BUSHING]

3235331

$417.29

3

KIT, SPRING [INCL. TORSION SPRING, RETAINER]

3234908

$87.99

4

ASM., ROLL CAGE [INCL. CAGE, H-CLIP SET]

3234907

$323.99

4

ASM., ROLL CAGE, BILLET ALUM [HIGH PERFORMANCE ACCESSORY][INCL. CLIP SET]

3235262

$526.49

5

ASM., GEARCASE, ADC [INCL. CASE, PLUGS, VENT, BLEEDER, SEAL, PISTON, BUSHING]

3234747

$683.36

6

ASM., COVER INPUT [INCL. COVER, BACKDRIVE COIL, SEALS, BEARING, COIL POCKET INSERT]

3234748

$187.99

7

ASM., GEAR, RING AND PINION [INCL. 20]

3235201

$518.69

7

ASM., GEAR, RING AND PINION [INCL. 20]

3235201

$518.69

8

ASM., RESERVOIR [INCL. BODY, CAP, DIAPHRAGM, HOSE, CLAMP]

3234751

$67.99

9

ASM., NECK [INCL. NECK, O-RING]

3234752

$565.49

10

ASM., PUMP [INCL. COMPLETE PUMP]

3234750

$413.59

11

KIT, FASTENER [INCL. ALL FASTENERS]

3234745

$63.99

11

KIT, FASTENER [INCL. ALL FASTENERS]

3234745

$63.99

11

KIT, FASTENER [INCL. ALL FASTENERS]

3234745

$63.99

11

KIT, FASTENER [INCL. ALL FASTENERS]

3234745

$63.99

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$75.99

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$75.99

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$75.99

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$75.99

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$75.99

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$75.99

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$75.99

12

KIT, SEAL REPAIR [INCL. ALL SEALS, O-RINGS]

3234746

$75.99

13

ASM., BLEEDER VALVE [INCL. VALVE, COVER]

3234431

$31.99

13

ASM., BLEEDER VALVE [INCL. VALVE, COVER]

3234431

$31.99

14

KIT, CAM AND ARMATURE, FWBD [INCL. BUSHING, CAM, ARMATURE PLATE]

3234434

$135.99

15

KIT-ROLLER [INCL. FULL ROLLER SET]

3234393

$111.84

16

PLATE, ARMATURE

3234407

$107.99

17

Screw, Set

2203731

$23.99

18

Button, Thrust

2203732

$27.99

19

BUTTON, THRUST, DU

2203733

$23.99

20

Bearing

3234390

$35.99

20

Bearing

3234390

$35.99

21

CLIP, STRAIN RELIEF

3234601

$4.79

22

KIT-PLUG,DRAIN

2203738

$35.99

23

KIT-PLUG,FILL

2203739

$39.99
