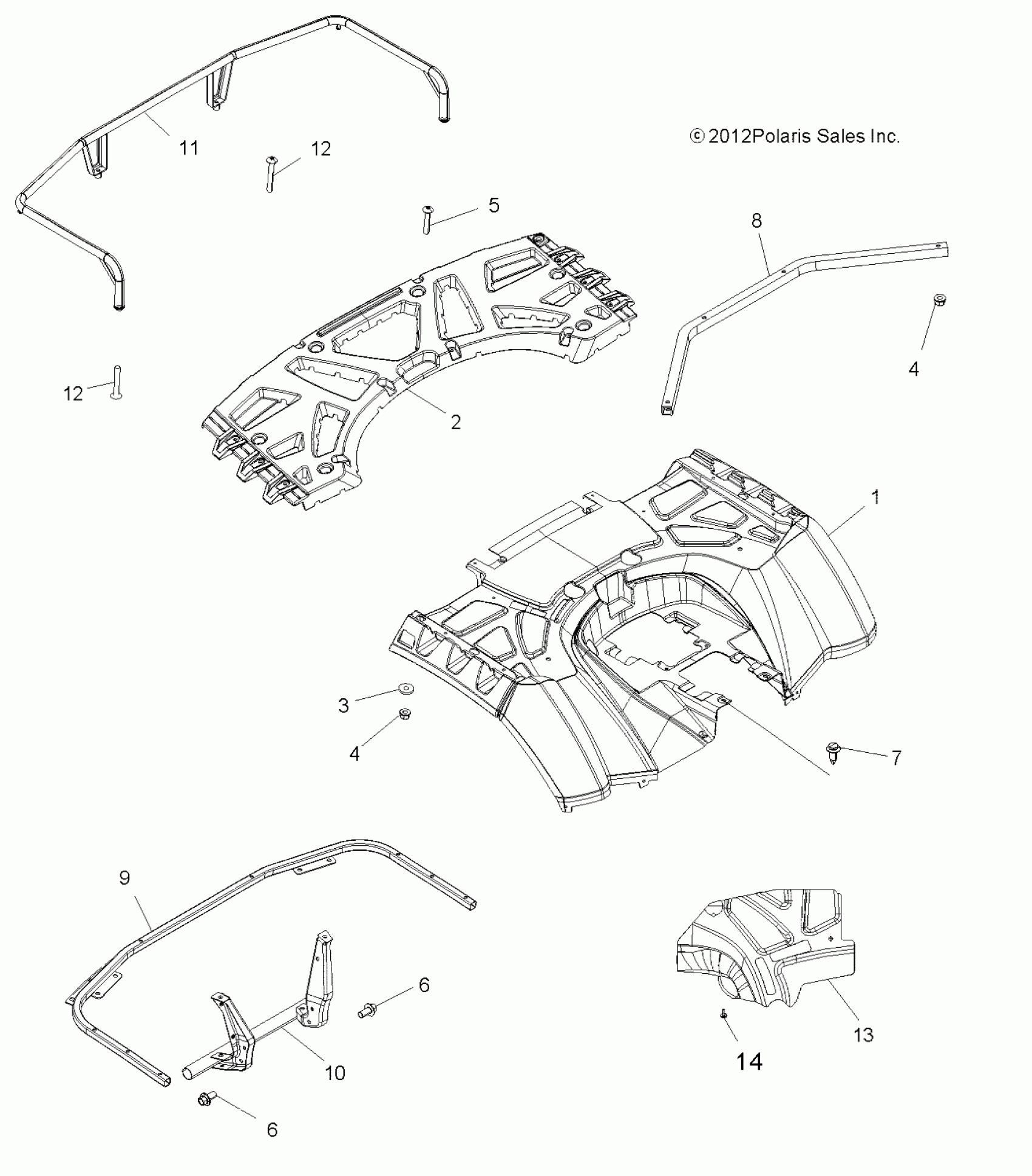

Polaris SPORTSMAN XP EPS 850/HO - A14ZN8EAB/C/I/M/P/S BODY, REAR CAB and REAR RACK - A14ZN8EAB/C/I/M/P/S (49ATVCABRR13SPXP) Diagram

#

Description
Price

1

ASM., CAB, REAR, SUNSET RED [EAS][INCL. 13,14]

2635037-520

$1,049.99

1

ASM., CAB, REAR, POLARIS PURSUIT CAMO [EAB][EAC][INCL. 13,14]

2635038-587

$899.99

1

ASM., CAB, REAR, BLUE FIRE METALLIC [EAI][INCL. 13,14]

2635037-620

$1,024.99

1

ASM., CAB, REAR, PEARL WHITE [EAP][INCL. 13,14]

2635037-538

$1,049.99

1

ASM., CAB, REAR, MAGNETIC METALLIC [EAM][INCL. 13,14]

2635037-603

$1,024.99

2

ASM., RACK, REAR, BLACK [INCL. WARNING DECAL]

2633429-070

$230.16

3

WASHER

7558302

$1.59

4

NUT-M6 FLANGE,NYLOC

7547274

$1.19

4

NUT-M6 FLANGE,NYLOC

7547274

$1.19

5

SCREW

7519001

$3.97

6

BOLT

7518555

$2.38

6

BOLT

7518555

$2.38

7

Rivet

7661855

$1.19

8

TUBE, SUPPORT, RACK, REAR, FRONT, BLACK

5335770-329

$97.76

9

BRACKET, RACK, REAR, BLACK

1016782-329

$126.57

10

SUPPORT, RACK, REAR, BLACK

1015776-067

$71.43

11

EXTENDER, RACK, REAR [EAB]

1016990-418

$449.99

12

SCREW [EAB]

7519090

$3.97

12

SCREW [EAB]

7519090

$3.97

13

SHIELD, HEAT, CAB, REAR

5254434

$36.41

14

CLIP-FIR TREE,DART,6.35MM

7670090

$1.19
