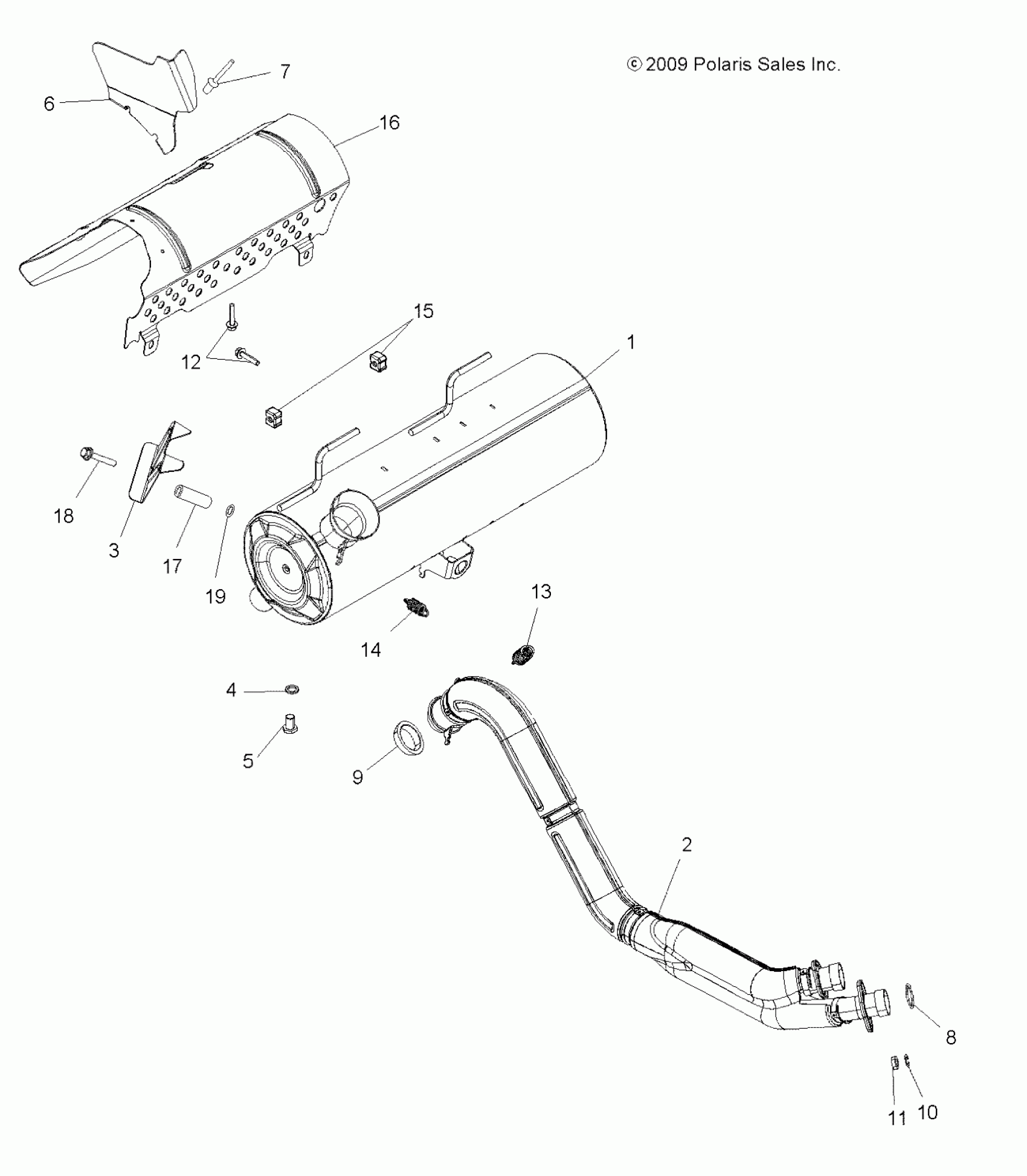

Polaris SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX ENGINE, EXHAUST - A10ZX85AK/AL/AS/AT/AX (49ATVEXHAUST10SPXP850) Diagram

Description

Price

Silencer, Exhaust, Black [Incl. 4,5]

1262088-489

Unavailable

Asm., Exhaust Pipe [Incl. Pipe, Shields]

1261874

Unavailable

Shield, Exhaust Spring

5253865

$29.03

WASHER

7556004

$7.14

BOLT

7512666

$2.38

SHIELD, EXHAUST

5252515

$44.99

RIVET-3/16-.090-.290

7661637

$1.19

GASKET, EXHAUST

3087957

$28.32

Seal, Exhaust

3610156

$16.17

Washer, Lock

7556111

$1.59

NUT

7547076

$2.60

SCREW, FLANGE

7518513

$4.76

SPRING-EXHAUST

7041789

$8.89

SPRING, EXHAUST

7041804

$8.89

GROMMET, SILENCER MOUNT

5413383

$4.76

Shield, Box, Storage

5252266

$101.17

Spacer, Exhaust Shield Spring

5336190

$4.35

SCREW

7519090

$3.97

RETAINER, BOLT

7670154

$2.38
