- SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX
ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A10ZX85AK/AL/AS/AT/AX (49ATVSWITCHES10SPEPS850)

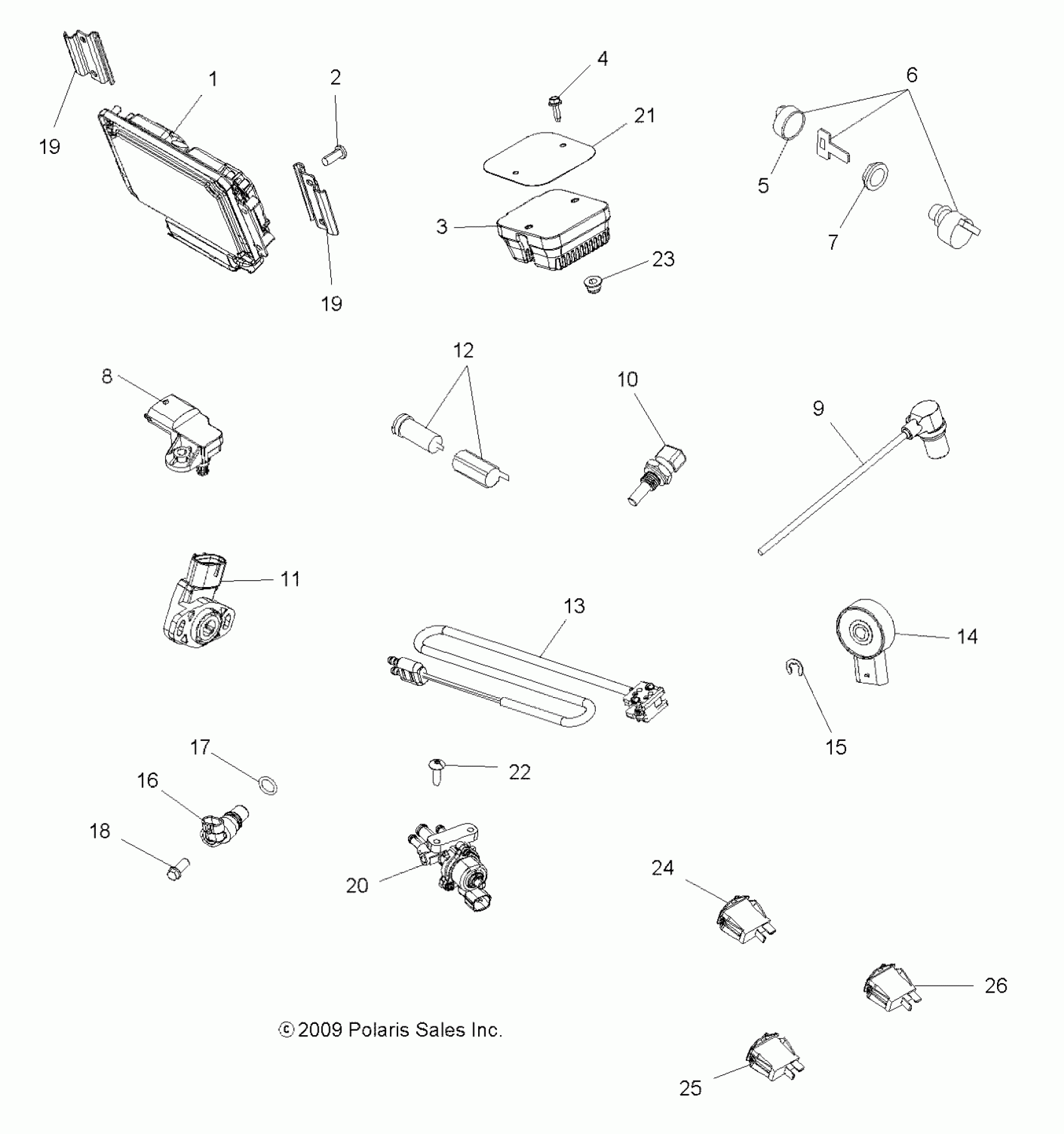

Polaris SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A10ZX85AK/AL/AS/AT/AX (49ATVSWITCHES10SPEPS850) Diagram
#
Description
Price
1
ECM
4012616
$644.99
2
Screw
7512095
$4.79
3
REGULATOR, VOLTAGE
4012678
$263.99
4
SCREW, FLANGE
7519202
$3.99
5
KEY SWITCH KEY COVER
5433534
$12.35
6
SWITCH, KEY, 3 POSITION [INCL. 5]
4012165
$104.24
7
NUT-IGNITION SWITCH,HOBBS
5433733
$23.99
8
Screw
7518541
$11.43
8
Sensor, T-Map
2411082
Unavailable
9
Sensor, Engine Speed
2410857
Unavailable
10
SENSOR-THERMISTER
4010644
$87.13
11
ASM., SENSOR
3131705
$187.99
12
RECEPTACLE, POD, 12 V
4010638
$24.27
13
KIT, BRAKE LIGHT SWITCH
2202794
$72.84
14
SWITCH [GEAR POSITION]
3233835
Unavailable
15
RING, RETAINING
3233834
$10.39
16
SENSOR, SPEED
4012167
$100.38
17
O-RING
3234302
$7.19
18
SCREW
3234329
Unavailable
19
Bracket, Mount, ECU
5251244
$1.49
19
Bracket, Mount, ECU
5251244
$1.49
20
VALVE, IAC
4011638
$107.99
20
KIT, HARNESS, IAC
2878507
$135.99
21
COVER, VOLTAGE REGULATOR
5253294
$10.39
22
SCR-#10-24X3/4,PN/TR RD-TORX-Y
7512018
$3.19
23
NUT-M6 FLANGE,NYLOC
7547274
$1.49
24
SWITCH-HANDWARMER,SPDT [AT]
4011319
$54.99
25
Switch, Thumb Warmer [AT]
4012483
$43.99
26
Switch, Worklight, On/Off [AT]
4011074
$49.99
