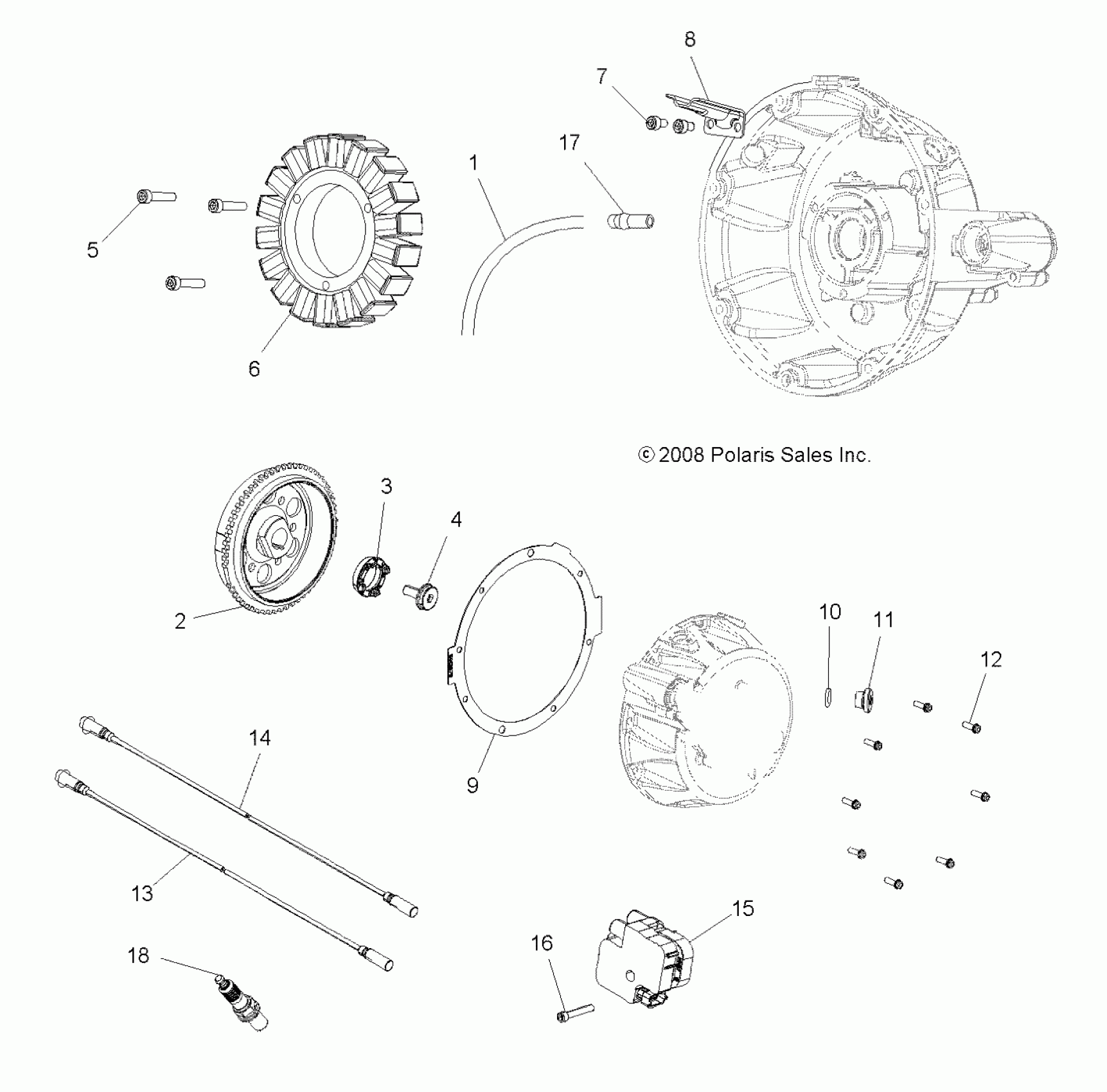

Polaris SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX ELECTRICAL, IGNITION SYSTEM - A10ZX85AK/AL/AS/AT/AX (49ATVMAGNETO09SPXP850) Diagram

#

Description
Price

1

TUBING, NYLON

8360077

$13.75

2

Flywheel

4011428

Unavailable

3

Coupler, Water Pump, Flywheel

5136307

$30.54

4

Bolt, Water Pump Drive, LH

5136389

Unavailable

5

SCREW

7518544

$5.59

6

Stator w/Grommet

4011427

Unavailable

7

SCREW

7518765

$3.99

8

RETAINER, STATOR WIRE

5250018

Unavailable

9

Gasket, Stator Cover

5813267

Unavailable

10

O-Ring

5411564

$4.03

11

Plug, Hole

5433820

$20.22

12

SCREW

7518576

$3.19

13

Wire, Spark Plug, 356mm

4012343

$55.99

14

Wire, Spark Plug, 406mm

4012344

$59.99

15

COIL-EFI

4010425

Unavailable

16

SCREW

7518922

$3.19

17

FITTING

7052463

$9.59

18

Plug, Spark

3022225

$6.39
