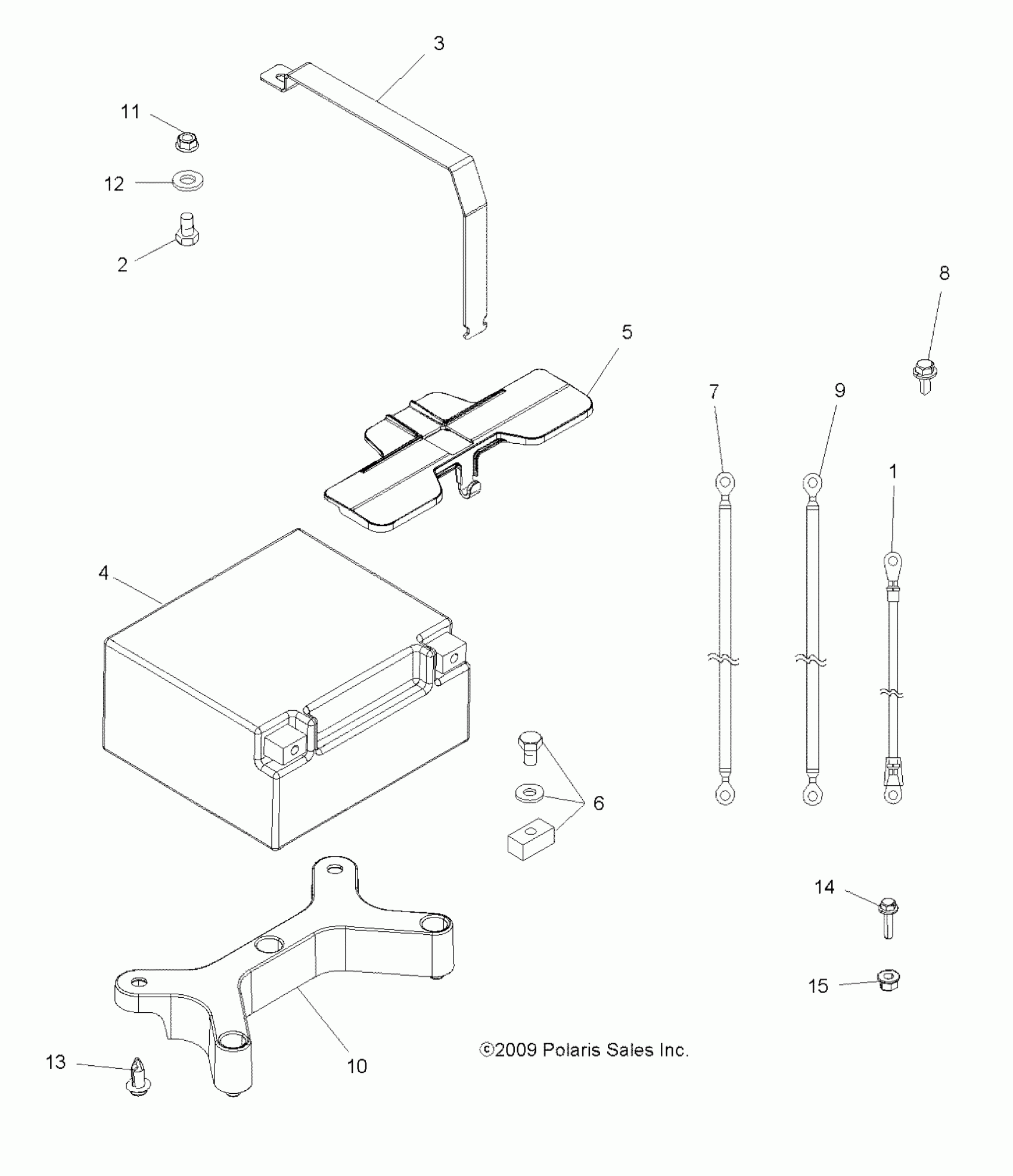

Polaris SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX ELECTRICAL, BATTERY - A10ZX85AK/AL/AS/AT/AX (49ATVBATTERY10SPXP850) Diagram

#

Description
Price

1

CABLE, BLACK

4012709

$31.99

2

SCREW

7518925

$3.19

3

BRKT-BATTERY,30AH [USED W/4011224]

5253600

$35.99

3

BRACKET, BATTERY STRAP [USED W/4011496]

5253372

$12.31

4

BATTERY, SEALED, 30 AH [OPT.]

4011224

Unavailable

4

BATTERY, 18-AH [STD.]

4011496

Unavailable

5

COVER, BATTERY

5438299

$14.39

6

BATTERY BOLT KIT

2201357

$11.19

7

CABLE, BLACK

4012709

$31.99

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

9

CABLE, BATTERY/SOLENOID

4012710

$43.99

10

SPACER, BATTERY

5438228

$10.39

11

NUT-M6 FLANGE,NYLOC

7547274

$1.49

12

Retainer

7670154

$1.49

13

Rivet

7661855

$1.49

14

SCREW, FLANGE

7516820

$5.59

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99
