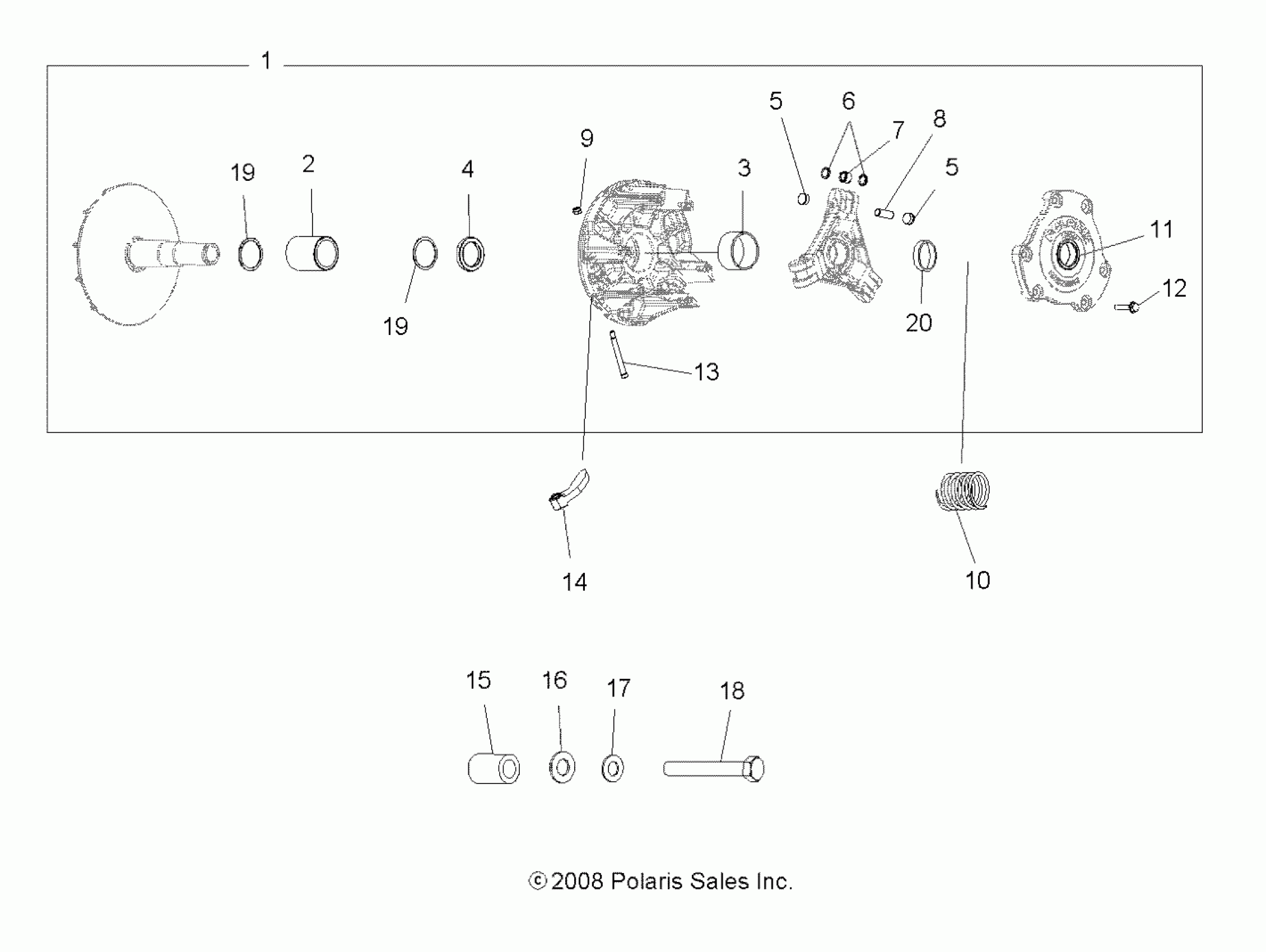

Polaris SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX DRIVE TRAIN, PRIMARY CLUTCH - A10ZX85AK/AL/AS/AT/AX (49ATVCLUTCH09SPXP550) Diagram

#

Description
Price

1

Asm., Clutch, Basic, Rev [Incl. 1-9,11-13,19]

1322814

$479.69

2

Asm., Clutch

1322809

$224.99

3

BEARING

3514492

$31.99

4

SPACER

5632060

$52.79

5

BUTTON, CLUTCH

5431936

Unavailable

5

BUTTON, CLUTCH

5431936

Unavailable

6

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

PIN-ROLLER

5020422

$2.39

9

NUT, FLEXLOC

7541906

$3.19

10

Spring, Clutch, 48-240

7043349

Unavailable

11

Bearing, Cover

3576510

$9.59

12

SCREW

7518062

$4.79

13

BOLT, SHOULDER

7512266

$3.19

14

Weight, Shift, 24-60G

5632216

$44.51

15

BUSHING-.475X.770X.50

5437682

$4.79

16

WASHER, FLAT

7556468

$3.99

17

WASHER, INTERLOCK

7556377

$3.19

18

BOLT

7518868

$9.59

19

WASHER-CLUTCH,VESPEL

7556335

$6.39

19

WASHER-CLUTCH,VESPEL

7556335

$6.39

20

Spacer, Clutch Limiter

5437747

Unavailable
