- SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX
DRIVE TRAIN, MAIN GEARCASE INTERNALS - A10ZX85AK/AL/AS/AT/AX (49ATVTRANSINTL10SPXP850)

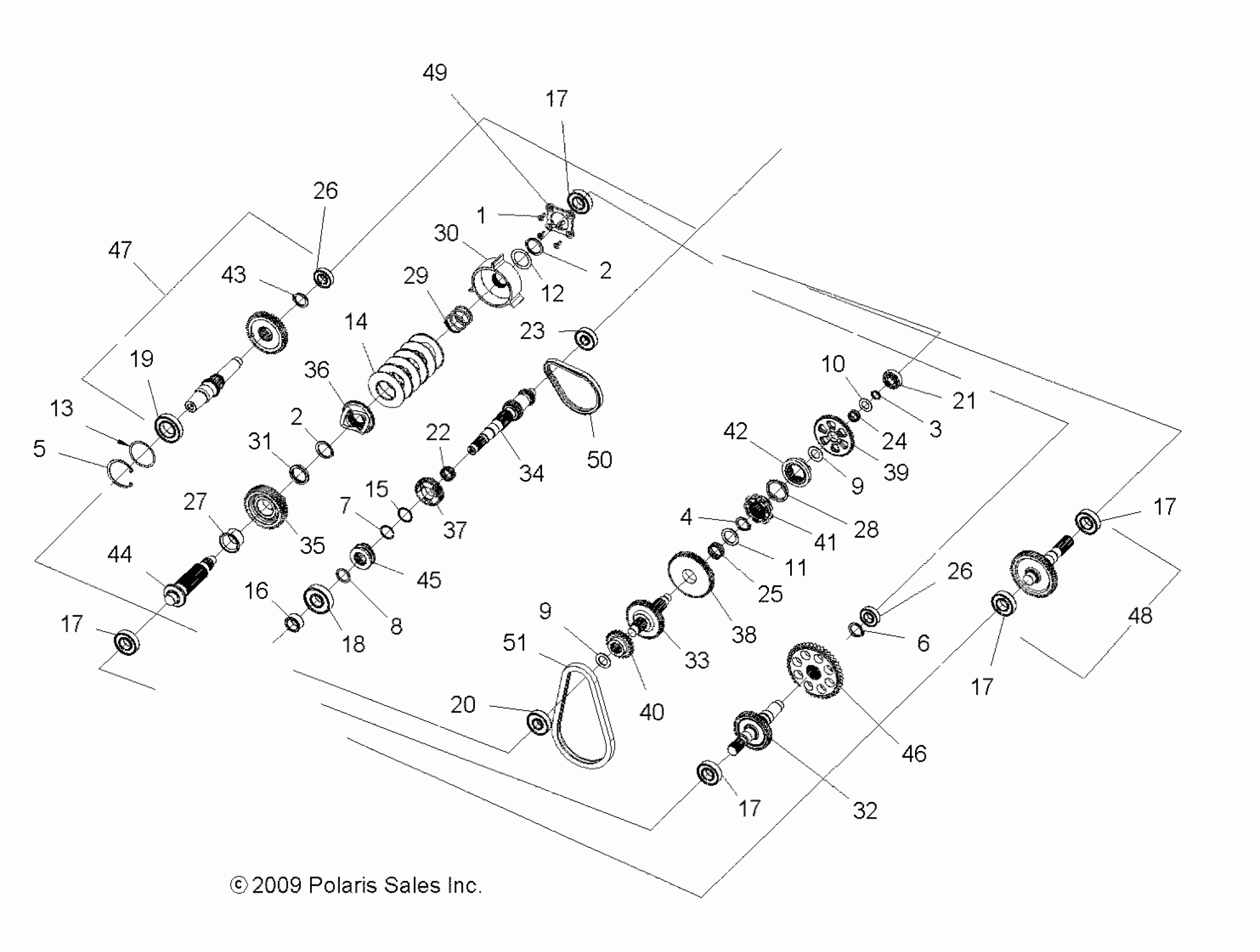

Polaris SPORTSMAN XP EPS 850 - A10ZX85AK/AL/AS/AT/AX DRIVE TRAIN, MAIN GEARCASE INTERNALS - A10ZX85AK/AL/AS/AT/AX (49ATVTRANSINTL10SPXP850) Diagram
#
-
Asm., Transmission, Drive System
1332787
$2,399.99
1
Subasm., Bearing Cover w/Screws [Incl. 49]
3235198
$23.99
2
RING, RETAINING, SHAFT
3233364
$6.39
2
RING, RETAINING, SHAFT
3233364
$6.39
3
RING, RETAINING, EXTERNAL
3234318
$3.19
4
RING, RETAINING BASIC, EXTERNA
3234327
$7.19
5
RING, RETAINING, INTERNAL
3234741
$9.59
6
RING, RETAINING, EXTERNAL
3233699
$7.19
7
RING, RETAINING, EXTERNAL
3234641
$12.79
8
WASHER, THRUST
3234248
$9.59
9
SHIM
3234643
$31.99
9
SHIM
3234643
$31.99
10
SHIM
3234644
$12.79
11
WASHER, THRUST
3234646
$23.99
12
Kit, Shim
2204264
Unavailable
13
KIT, SHIM
2204268
$39.99
14
Washer
3234648
$30.79
15
WASHER, THRUST
3234757
$11.19
16
COLLAR
3234758
$101.19
17
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
17
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
17
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
17
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
17
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
18
BEARING
3233020
$47.99
19
BEARING-BALL 6007 C3 35 X 62 X 14
3233265
$39.99
20
BEARING BALL,6304STD 20X52X15
3234651
$15.99
21
BEARING, BALL
3234274
$27.99
22
BEARING, NEEDLE
3234759
$15.99
23
BEARING, BALL
3234652
$15.99
24
BEARING, NEEDLE
3234655
$15.99
25
BEARING, NEEDLE
3234656
$15.99
26
Bearing, Ball
3234657
$21.99
26
Bearing, Ball
3234657
$21.99
27
Bearing, Flanged
3234684
$19.99
28
SPRING, WAVE
3234688
$10.39
29
Spring, Compression
3234999
Unavailable
30
Cup
3234696
$91.99
31
Spacer, Compensator, Thrust
3234697
Unavailable
32
Shaft, Output
3234997
$107.99
33
Shaft, Reverse, 53T
3234774
$195.99
34
Shaft, Input, 25T
3234761
$255.99
35
Gear, Compensator
3234762
$419.98
36
Cam, Compensator
3234705
Unavailable
37
Gear, 42T
3234773
$115.08
38
GEAR, 67T
3234706
$87.99
39
SPROCKET, 48T
3234707
$35.99
40
Sprocket, 23T
3235544
$39.99
41
DOG, ENGAGEMENT, LOW
3234718
$175.99
42
DOG, ENGAGEMENT, REV/LOW
3235341
$171.99
43
Ring, Retaining, External [Built 2/12/10 and Before]
3234640
Unavailable
44
Shaft, Compensator
3234721
$307.99
45
Dog, Engagement, High
3234764
$165.94
46
SPROCKET, 44T
3234998
$67.99
47
Asm., Primary Shaft
3234768
$287.37
48
ASM., OUTPUT, FRONT
3234723
$207.99
49
Subasm., Bearing Cover w/Screws [Incl. 1]
3235198
$23.99
50
CHAIN,SIL 101,.25P X .40W X58L
3234737
$159.99
51
CHAIN, SILENT
3234738
$231.99
